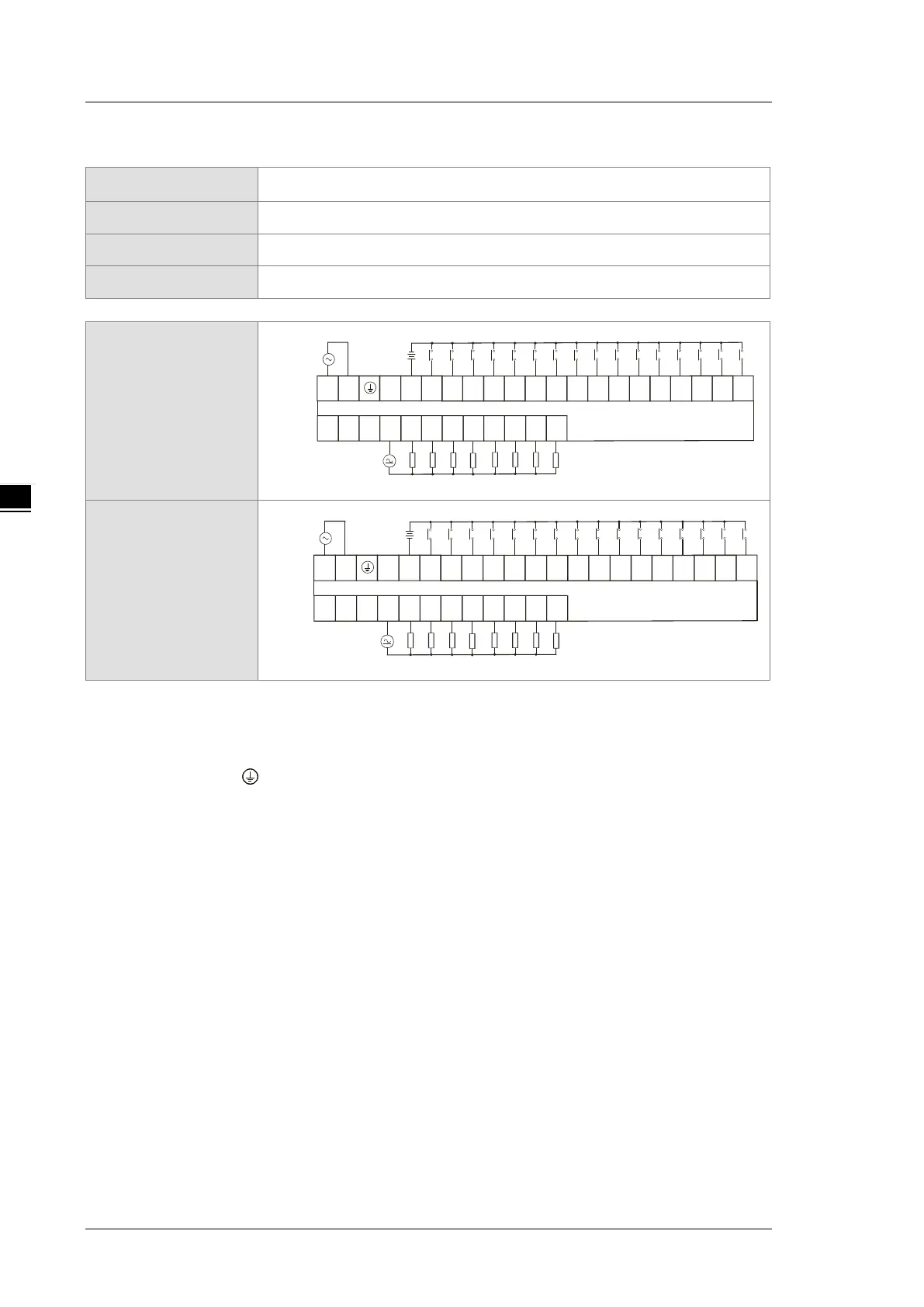

4.7.11 Wiring DVP24XP200R
Input form
Direct current (sinking or sourcing)
Voltage specifications
24 VDC, 5 mA
Output type
Relay
Voltage specifications
250 VAC, below 30 VDC, 2A/output, 5A/COM
Sinking input and relay
output
OUT
C0
Y0 Y1 Y2 Y3 Y4 Y5 Y6 Y7
DVP24XP200R ( 1 6DI/8DO)
+24V 24G
S/S
X0
X1 X2
X3
X4
X5 X6 X7
IN
NC
L N
NC
X10
X11 X12
X13
X14
X15 X16
X17
Sourc
ing input and relay
output
OUT
C0
Y0 Y1 Y2 Y3 Y4 Y5 Y6 Y7
DVP24XP200R ( 1 6DI/8DO)
+24V 24G
S/S
X0
X1 X2
X3
X4
X5 X6 X7
IN
NC
L N
NC
X10
X11 X12
X13
X14
X15 X16
X17
Note:
1. The module is built-in with a +24 V power supply for I/Os to use.
2. Connect the terminal to ground.
