Delta DVP32ES300T User Manual

Chapter 6 Writing a Program
6-13
6_

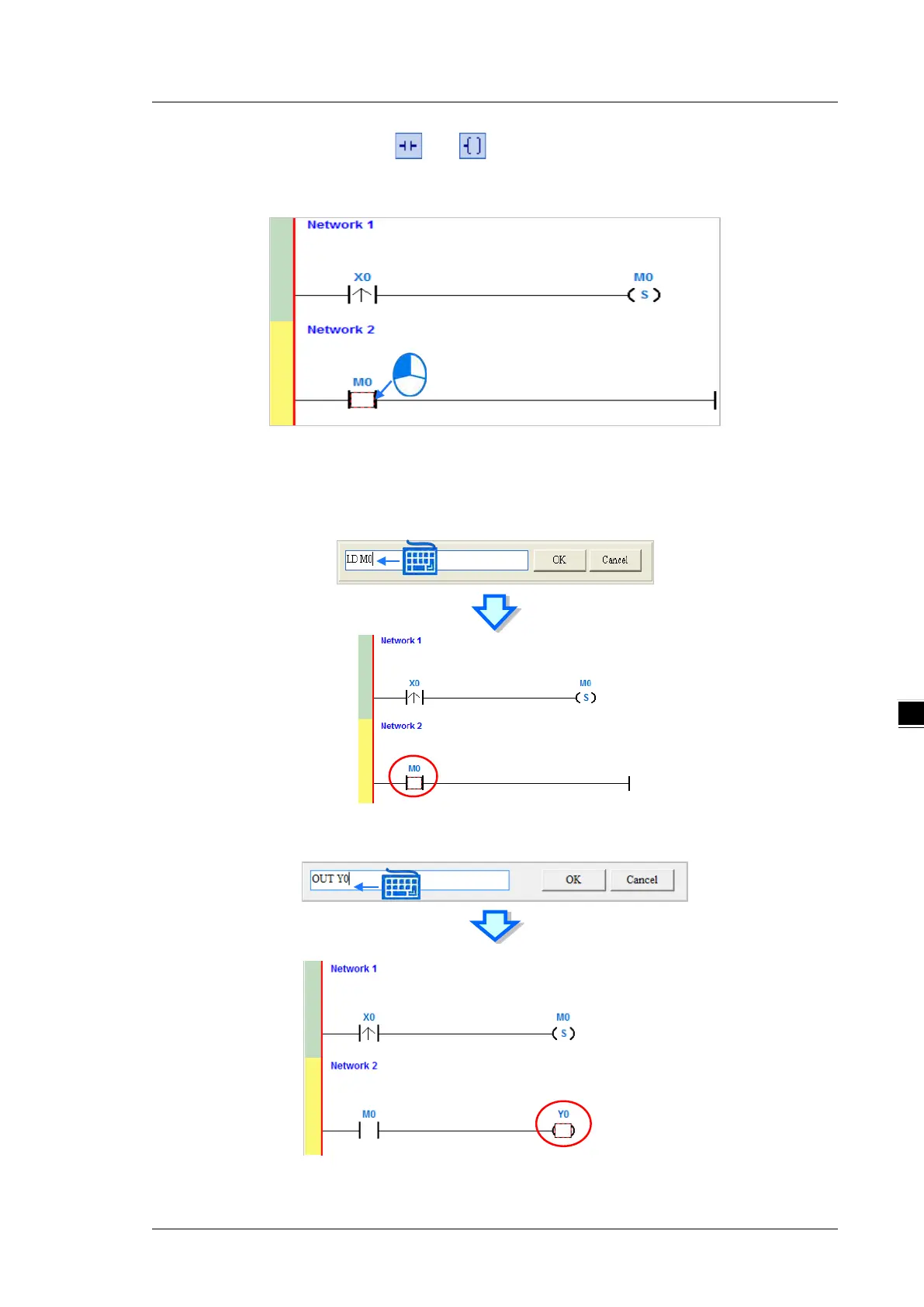

Create a contact and a coil by clicking and on the toolbar or by typing instructions.
(1) Click the line in Network 2.
(2) Type the IL instruction “LD M0”. This instruction is not case-sensitive. As soon as you type the IL instruction,
a box which you can edit appears. After you finish typing the IL instruction, press Enter on the keyboard or
click OK at the right side of the box.
(3) Type the IL instruction “OUT Y0”, and write the program shown below.

Delta DVP32ES300T Specifications

General

Model	DVP32ES300T
I/O Points	32
Digital Inputs	16
Digital Outputs	16
Power Supply	24V DC
Communication Ports	RS-232, RS-485
Program Capacity	16k Steps
Operating Temperature	0°C to 55°C
Storage Temperature	-25°C to 70°C
Input Type	24 VDC Sink/Source
Controller Type	Programmable Logic Controller
Output Type	Transistor
Dimensions	90 x 120 x 90 mm
Humidity	5% to 95% RH (non-condensing)
