Duplo DPB-500 User Manual

4-14
CHAPTER 4 FINE-ADJUSTMENT AND OPTION SETTING
2-3. Adjusting the Height of Paper Feed Tray

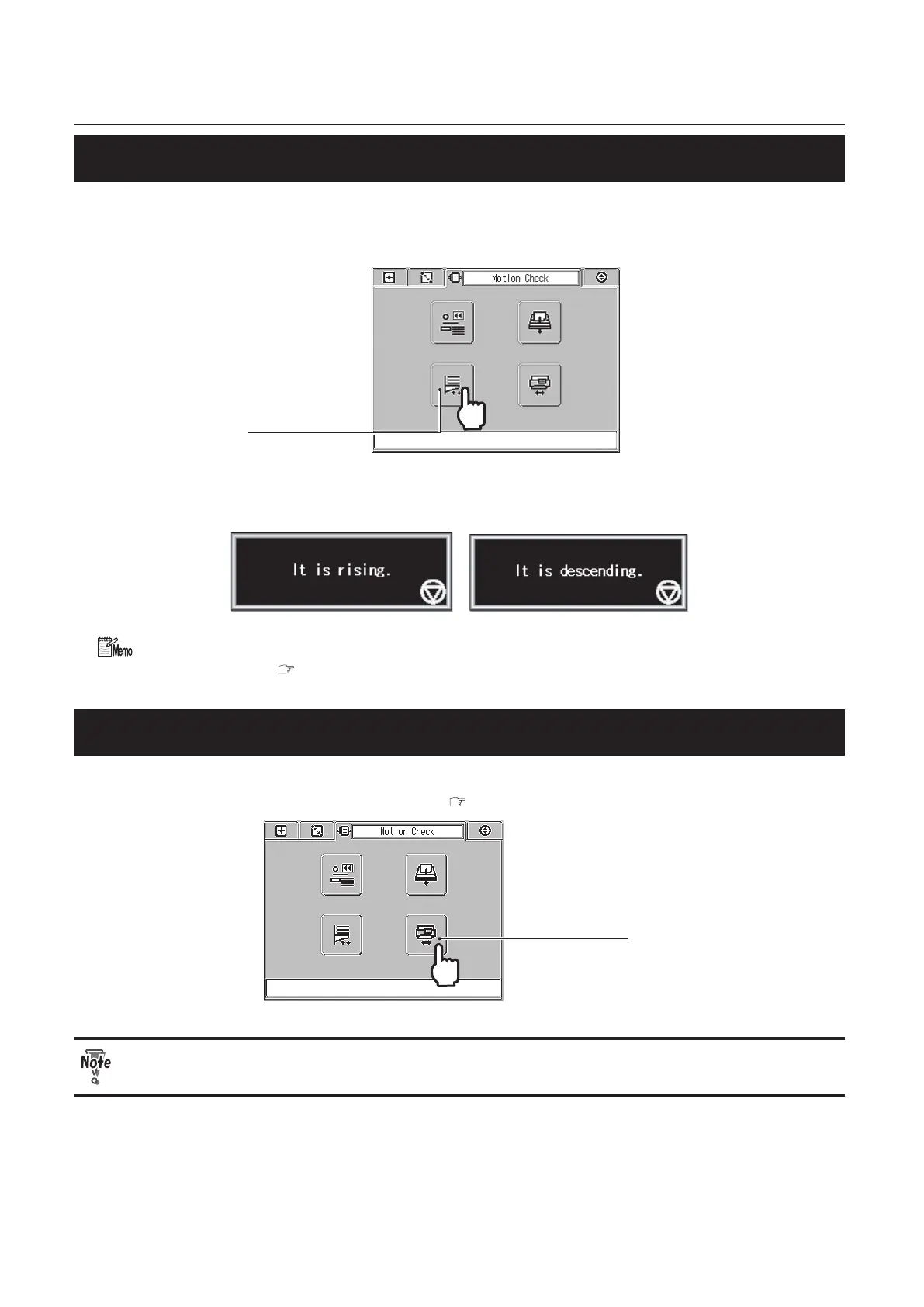

When you add paper during binding operation, press the paper feed tray up/down button to raise or
lower the paper feed tray. When the paper feed tray is at its highest position or in a middle position, it
will descend. When it is at its lowest position, it will rise.
Paper Feed Tray
Up/Down Button
While the paper feed tray is rising or descending, the message will be displayed on the touch panel
screen.
You can descend the paper feed tray by pressing the feed tray down button above the
paper feed tray. (
p.1-9)
2-4. Moving the Clamp
Before cleaning the level plate, press the clamp horizontal movement button to move the clamp to the
right. The clamp will move to the nipping section ( p.5-3).
Clamp horizontal
Movement Button
Before pressing the clamp horizontal movement button, make sure that there is no one
around the clamp section and the nipping section.
