Duplo DPB-500 User Manual

4-10
CHAPTER 4 FINE-ADJUSTMENT AND OPTION SETTING
1-7. Adjusting Spine Glue Amount
Check the finished booklet and adjust the amount of the spine glue and side glue if necessary.

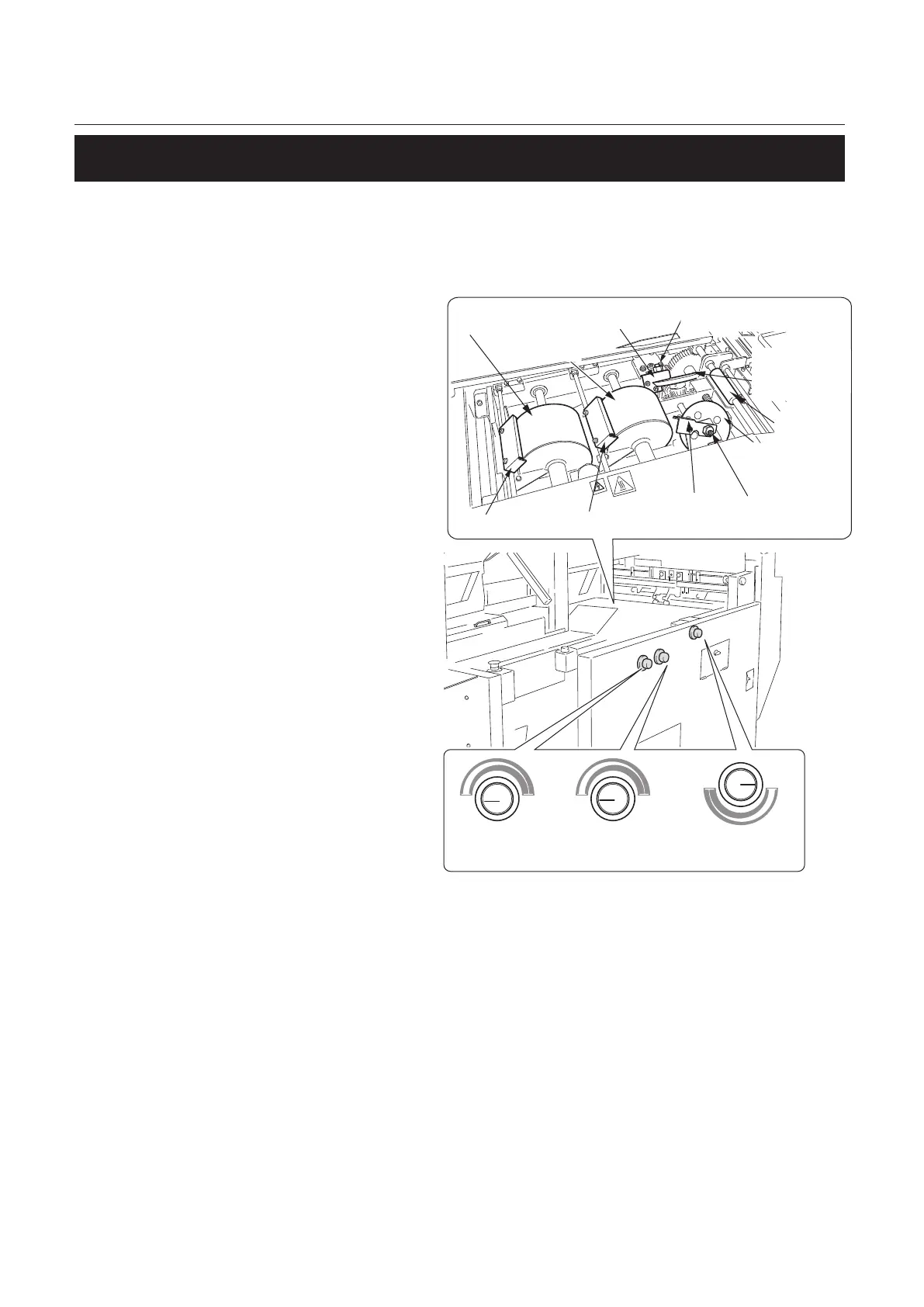

No.1 Glue Drum Meter Adjustment
Adjusts the glue amount to be applied to the application No.1 drum.
Spine meter roller
adjustment
Application
No.1 dru
m
No.1 meter
No.2 meter
Side glue meter
(operator’s side)
Side glue meter
(non-operator’s side)
No.2 glue drum
meter adjustment
No.1 glue drum
meter adjustment
Side glue meter
adjustment
(operator’s side)
Application
No.2 drum
Side glue meter adjustment
(non-operator’s side)
Side glue roller
(non-operator’s
side)
Spine meter
roller
Side glue roller
(operator’s side)
Base position:
The indicator on the No.1 glue drum
meter adjustment points to the left.
Turning to the left:
The amount of the glue applied to the
drum is largest.
Turning to the right:
The amount of the glue applied to the
drum is smallest.
No.2 Glue Drum Meter
Adjustment
Adjusts the glue amount to be applied to the
application No.2 drum.
Base position:
The indicator on the No.2 glue drum
meter adjustment points to the left.
Turning to the left:
The amount of the glue applied to the
drum is largest.
Turning to the right:
The amount of the glue applied to the
drum is smallest.
Spine Meter Roller Adjustment
Adjusts the amount of glue applied to the spine.
Base position:
The indicator on the spine meter roller
adjustment points to the right.
Turning to the left:
The amount of the glue applied to the
drum is smallest.
Turning to the right:
The amount of the glue applied to the
drum is largest.
