CHAPTER 2 PREPARING FOR OPERATION
For center base
0
Return button

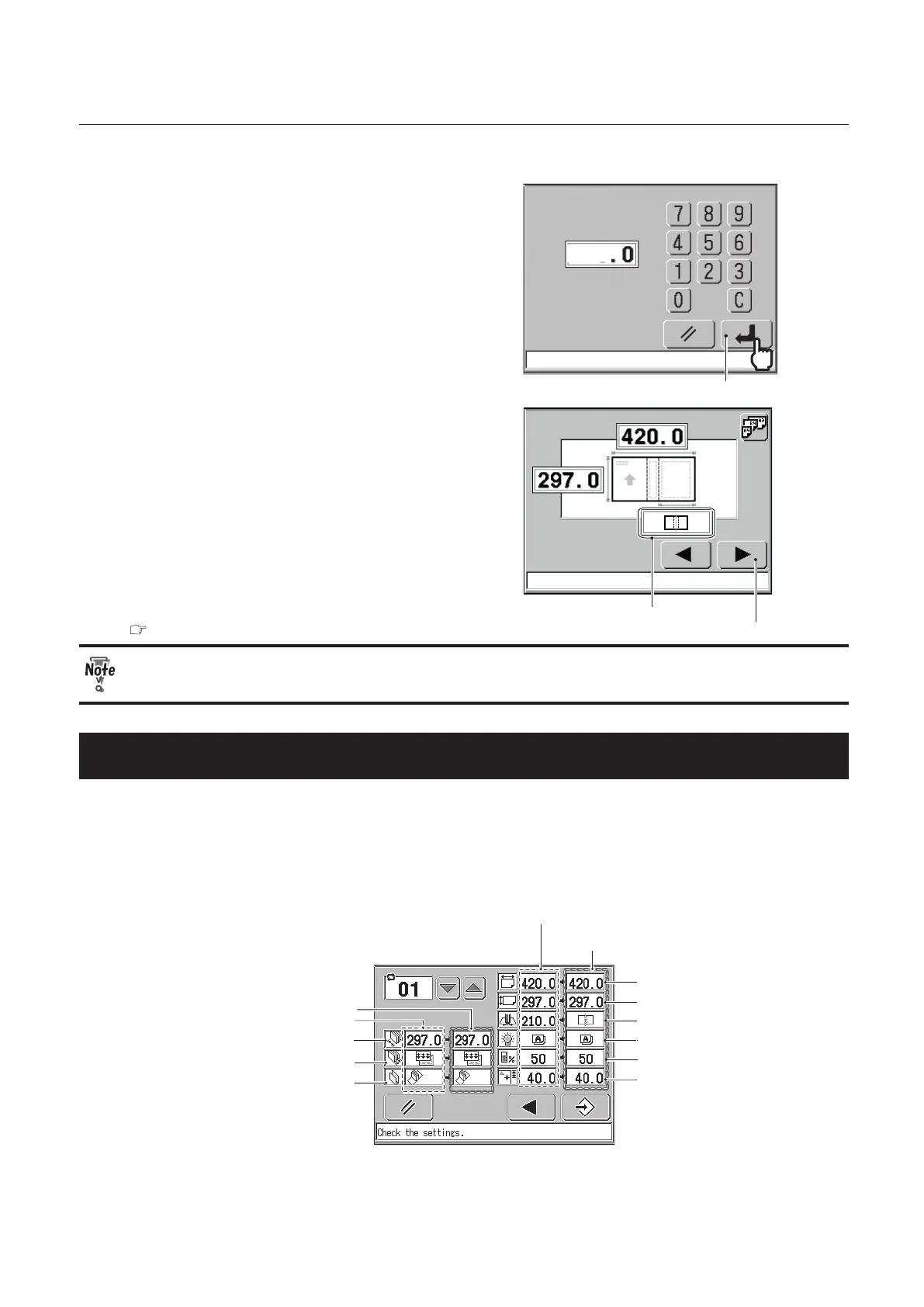

Input “0” using the numeric keypad and
press the return button.
Base Spine Position Button
Next Button
The base spine position button will be
displayed as shown in the figure.
The icon means that the scoring base line
will align with the book block center line
when you perform the size change in a later
step.
When you press the next button, you will go
to "4-6.Checking and Saving Settings"
( p.2-21).
When you input a cover length other than 342 to 651 mm (13.46 to 25.63 inches) in
"4-4.Setting the Cover Size," "0" will not be accepted.
4-6. Checking and Saving Settings
You will confirm the settings you made so far for a book block size, cover size, and double feed
detection and save them to a memory.
1.
Check the settings of before and
after changing.
Book block length
Cover (With a cover,
Without a cover
Cover width
Cover length
Base spine position
LED luminescence amount
Double feed detection level
Starting point of the double
feed detection
Book block thickness (variable/normal)
Before Change
Before Change
After Change
After Change
