2-3

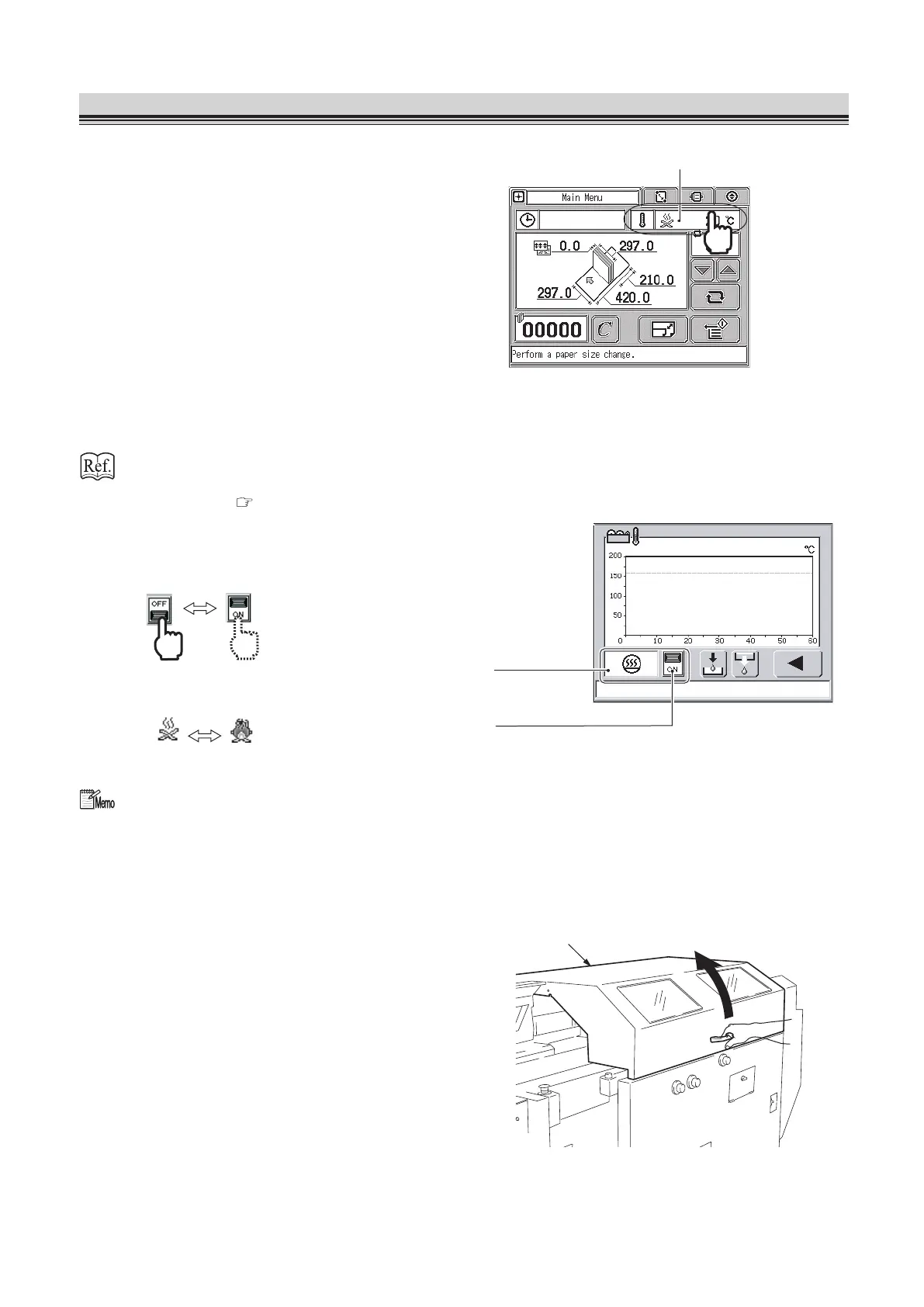

CHAPTER 2 PREPARING FOR OPERATION
2. Preparing Hot Melt Glue
Glue Tank Temperature Button
2007-04-05 10:35
1.
Press the glue tank temperature
button.
The temperature graph will be displayed.
● Check the melt temperature of the hot
glue.
The temperature of the glue tank is set at
150°C/302°F by default. Check the melt
temperature of the hot melt glue you use
and change the glue tank temperature if
necessary.
Chapter 4 "Fine-adjustment and Option
Setting" ”3-4.Setting the Glue Tank
Temperature” ( p.4-18)
20.0
Heater Switch
ON/OFF Button
2.
Press the ON/OFF button of the
heater switch.
Either of the two following icons is
displayed.
OFF ON
The ON/OFF position of the heater
switch will be maintained even after the
machine is turned off. If you turn off the
machine with the heater switch ON, the
heater switch will be ON next time when
you turn on the machine.
Main cover
3.
Open the main cover.
When some hot melt glue is left in the
glue tank.
Go to step 4.
When the glue tank is empty.
Go to step 5.
