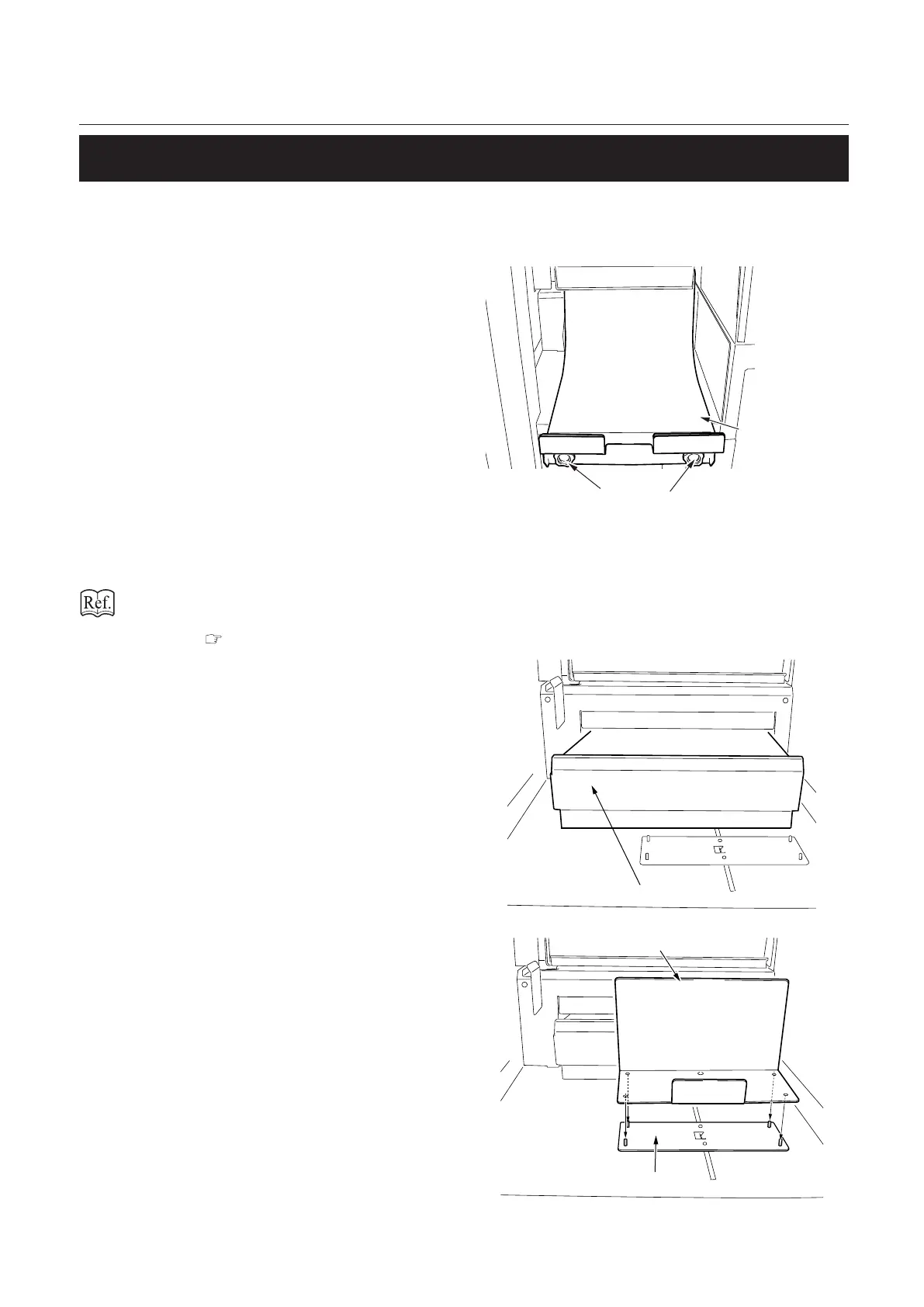

CHAPTER 2 PREPARING FOR OPERATION
3-4.
Replacing the Receiving Tray with the Stacker Stopper
You can use the stacker stopper for the booklet size of A5, B5, A4 and legal size or for the booklet with
a height of 148 to 216 mm (5.83 to 8.50 inches). To replace the receiving tray with the stacker stopper,
follow the procedures below.
1.
Remove the knob bolts (2) from the
receiving tray.
2.
Raise the receiving tray and pull it
toward you to remove it from the
machine.
3.
Put back the knob bolts (2) removed
in step 1 to their original places.
4.
Select OFF on the paper receiving
tray ON/OFF setting screen of the
touch panel.
Chapter 4 "Fine-adjustment and Option
Setting" "3-9. Setting the Receiving Tray
ON/OFF" ( p.4-23)
5.
Check that the movable stacker has
been pushed forward (operator's
side).
Stacker stopper
Stacker stopper base
6.
Place the supplied stacker stopper
on the position as shown in the
figure.
