3-25
CHAPTER 3 STARTING BINDING OPERATION

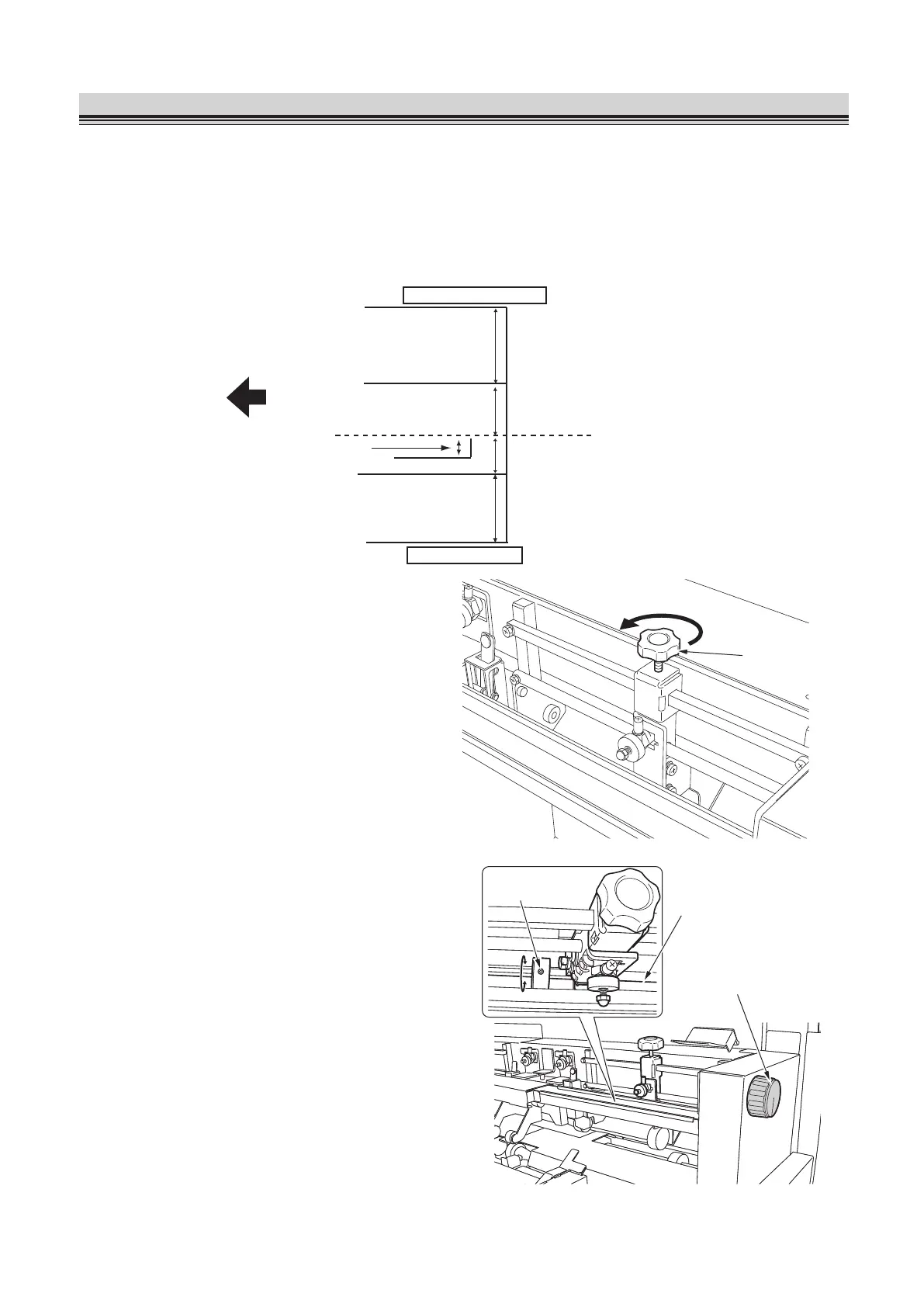

8. Using Wing Scoring
When you want to turn-in a cover, use the wing scoring (optional) to apply a score to a position to be
folded. The range you can apply a score is between 120 to 189 mm (4.72 to 7.44 inches) above the
scoring base line on the non-operator's side and between 160 to 199 mm (6.30 to 7.83 inches) below
the scoring base line on the operator's side.
As the wing scorings are located on the operator's side and non-operator's side, first adjust the wing
scoring on the operator's side, then that on the non-operator's side.
Operator’s side
Non-operator’s side
Scoring base line
Adjustable range
189 mm (7.44 inches)
Adjustable range
199 mm (7.83 inches)
Book block maximum thickness
51 mm (2.01 inches)
120 mm
(4.72 inches)
160 mm (6.3 inches)
Feed direction
1.
Loosen the knob screw (1) of the
upper wing scoring one or two turns
by hand.
Shaft
Jam removing knob
Fixing screw
2.
Turn the jam removing knob to make
the fixing screw (1) of the lower wing
scoring shaft face upward.
To Next Page
