CHAPTER 1 BEFORE OPERATION

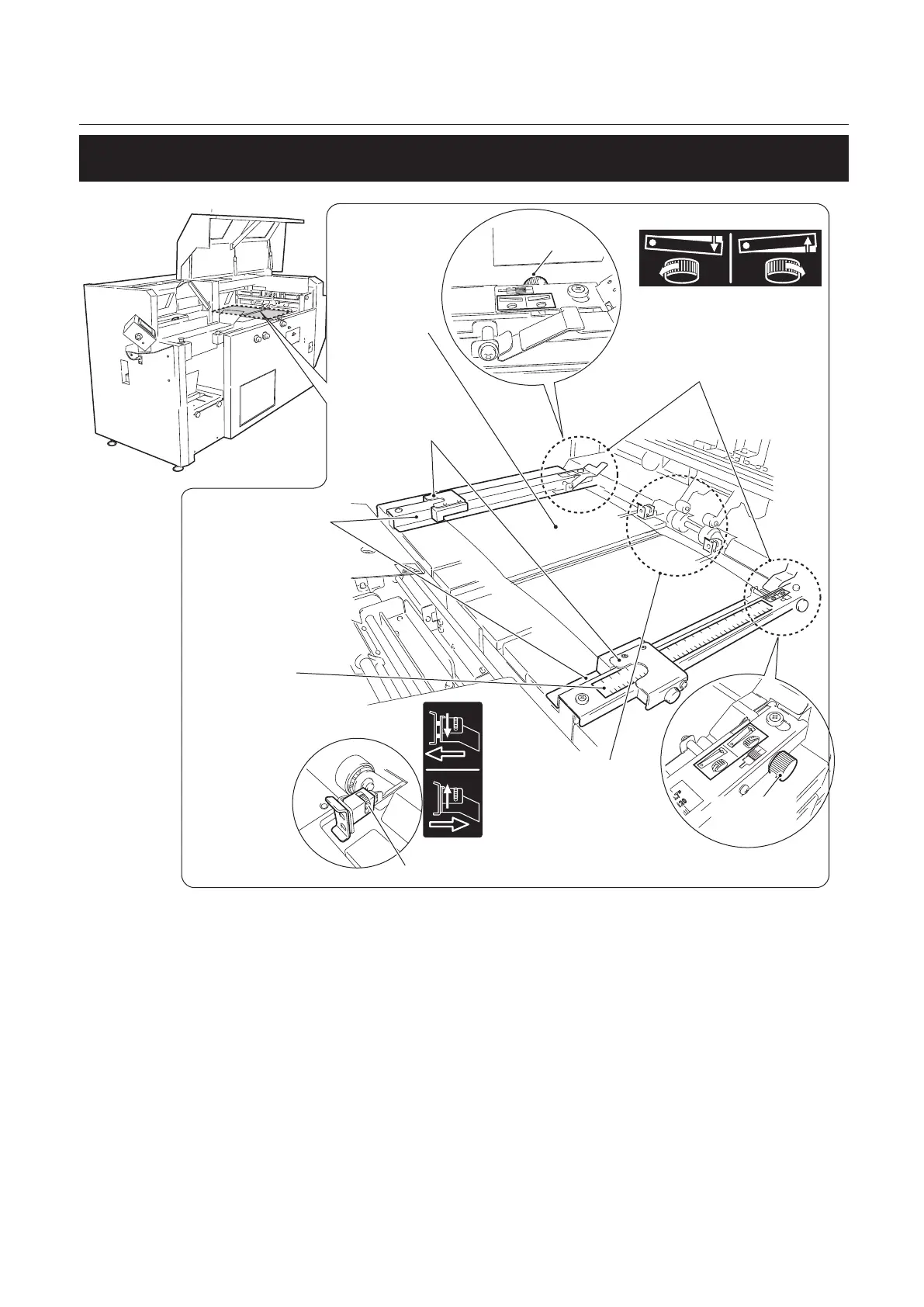

3-4. Nipping Section
Skewing
Adjustment
Cover Stopper
Prevents the
cover from
moving by
holding down its
leading edge.
Scale Label
Use this label to decide
the position of the
cover stopper.
Positioning Fingers
Prevents the cover from
moving by holding down its
tail edge.
Nipper Guide
Moves automatically
according to the size
of a cover and holds
down its both sides.
Skewing Adjustment Label
Adjusts the position of the
cover and the book block so
that they are parallel to each
other.
Positioning Fingers Adjustment
Adjusts the position of the positioning fingers.
Nipping
Station
Nips the cover
transported
from the paper
feed tray to
form a spine.
Skewing
Adjustment
