Duplo DPB-500 User Manual

2-10

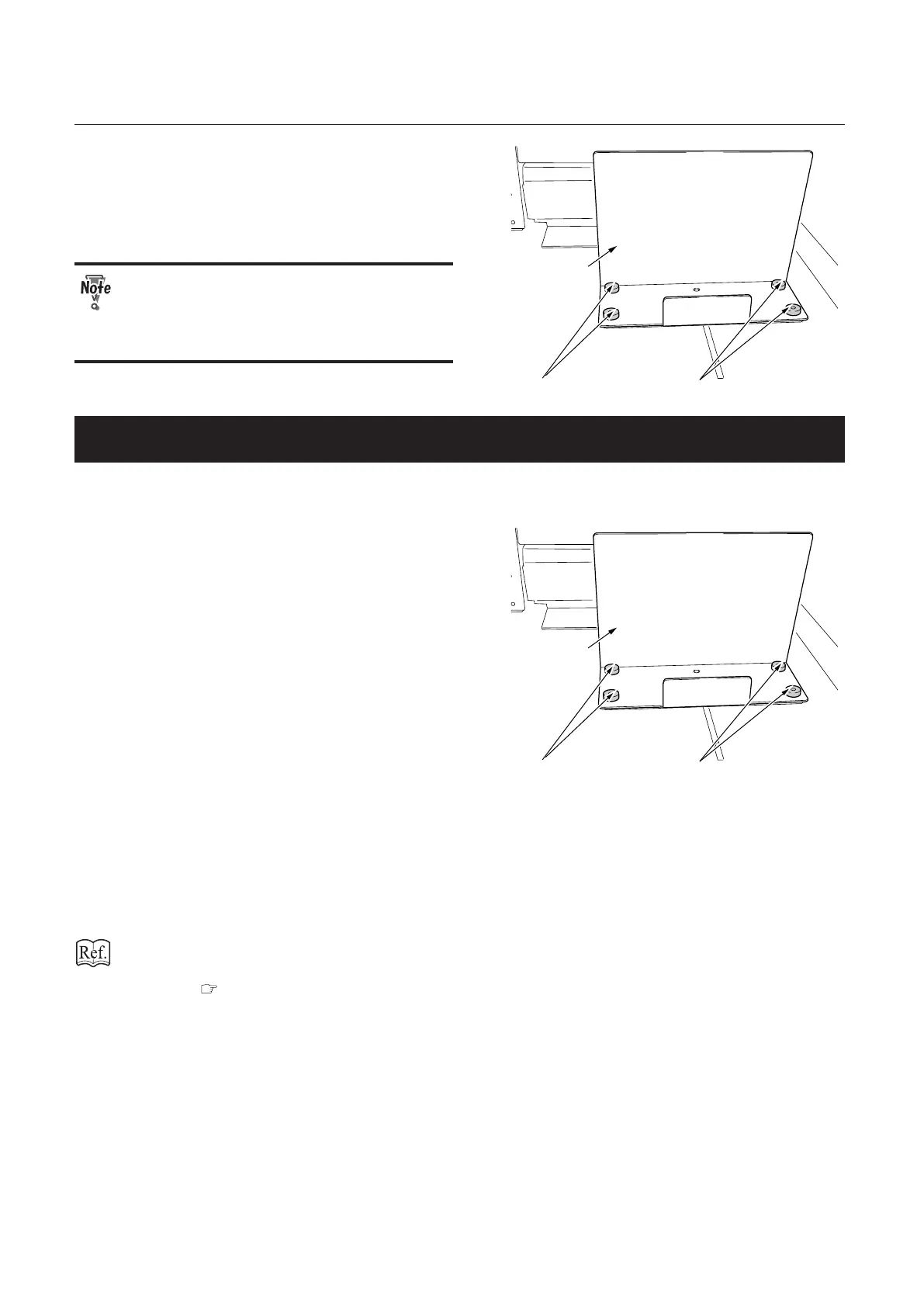

CHAPTER 2 PREPARING FOR OPERATION
Stacker stopper
Knob screw
Knob screw
7.
Secure the stacker stopper to the
machine using the supplied knob
screws (4).
When both a book block and cover is
thin, the booklet may hit the movable
stacker and be curled up. Use the
receiving tray when the booklet is limp.
3-5. Replacing the Stacker Stopper with the Receiving Tray
If the stacker stopper does not align the discharged booklets, replace the stacker stopper with the
receiving tray.
Stacker stopper
Knob screw
Knob screw
1.
Remove the knob screws (4) from the
stacker stopper.
2.
Remove the stacker stopper.
3.
Put back the know screws (4)
removed in step 1 to their original
places.
4.
Select ON on the paper receiving tray
ON/OFF setting screen of the touch
panel.
The movable stacker will be pushed
backward (non-operator's side).
Chapter 4 "Fine-adjustment and Option
Setting" "3-9. Setting the Receiving Tray
ON/OFF" ( p.4-23)
