1.2 SPECIFICATIONS
This section describes LX-8 10/850
1.2.1
Hardware Specifications
prinlter specifications.
Printing Method
Serial, impact, dot matrix
Pin Configuration
9 wires (diameter
0.29mm)
#1
#2
#3
#4
#5
#6
#7
#8
#9
(
)
t
(
)
0.29mm
( )
!
<
>
t
0.35mm (1
<
>
(
)
f
/72”)

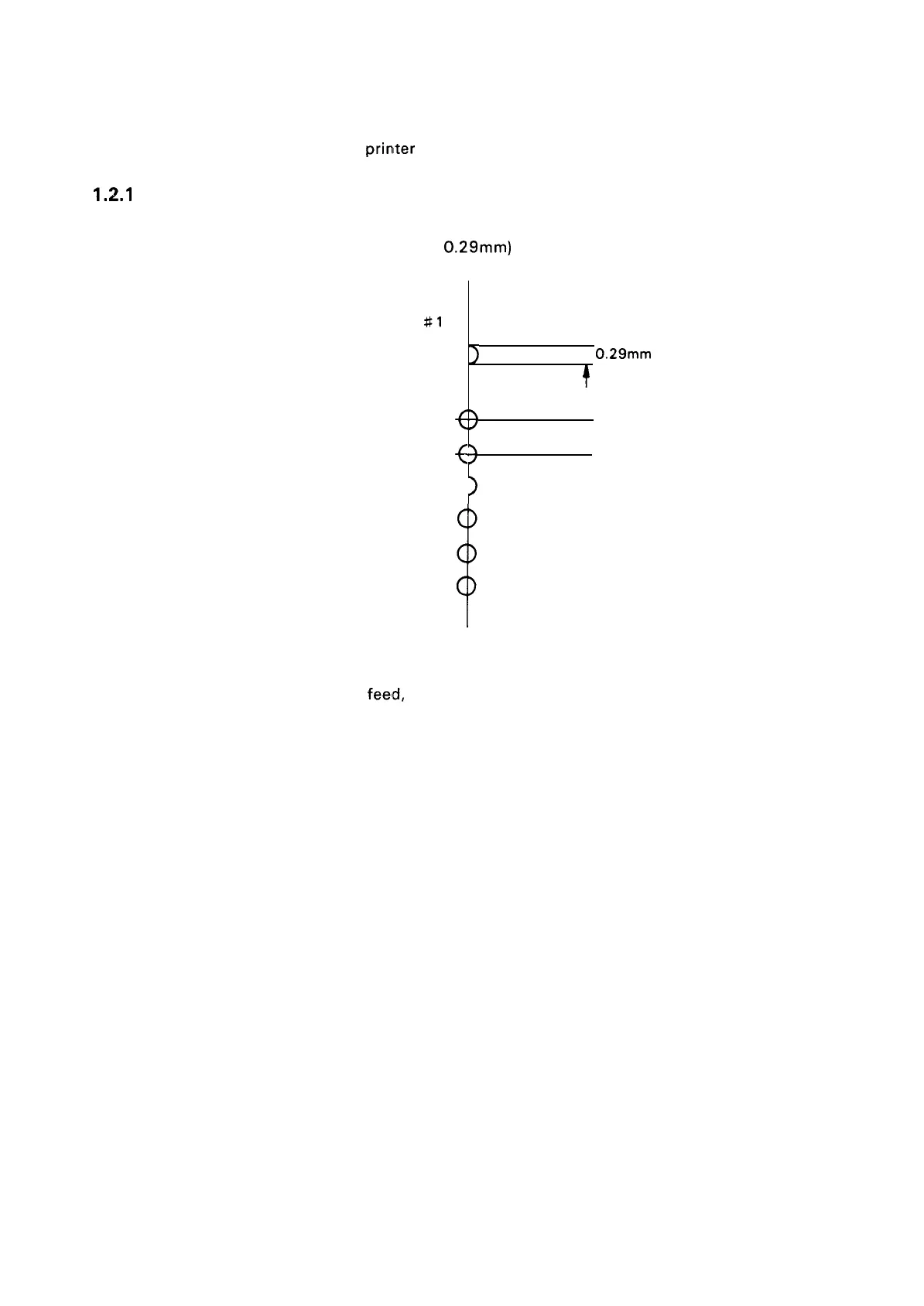

Figure 1-2. Pin Configuration
Feeding Method Friction
feed,
tractor feed (push tractor: standard, pull tractor: optional)
When handling paper, note the following precautions described below
Friction Feed Precautions:
1. Do not use continuous paper.
2. Do not use a single sheet shorter than 182mm or longer than
364mm.
3. Do not perform any reverse paper feed within 8.5mm from the top, or 22mm from the bottom.
4. Do not perform reverse feed greater than 1/6 inch after the paper end is detected.
5. Use the pull-out unit.
6. Do not use multi-part single sheet forms.
Tractor Feed Precautions:
1. Release the friction feed mechanism.
2. Joining of copying paper must be by line or dotted pasting.
3. Copy paper must be a carbon-less, multi-part paper.
1-3
