1.6 MAIN COMPONENTS
The main components of the LX-8 10/850 printer are designed for easy removal and replacement to
maintain/repair the printer.
The main components are:
1 ) TAMA board: Main control board. The CPU on this board controls all main functions.
2) TAPNL-W control panel: Control panel.
3) TA filter unit: Transformer and filter board.
4)
M-3D 10: Printer mechanism.
TA
Filter
Unit
MA board
. . .
t..
Printer
—
Mechanis
M-3D 10

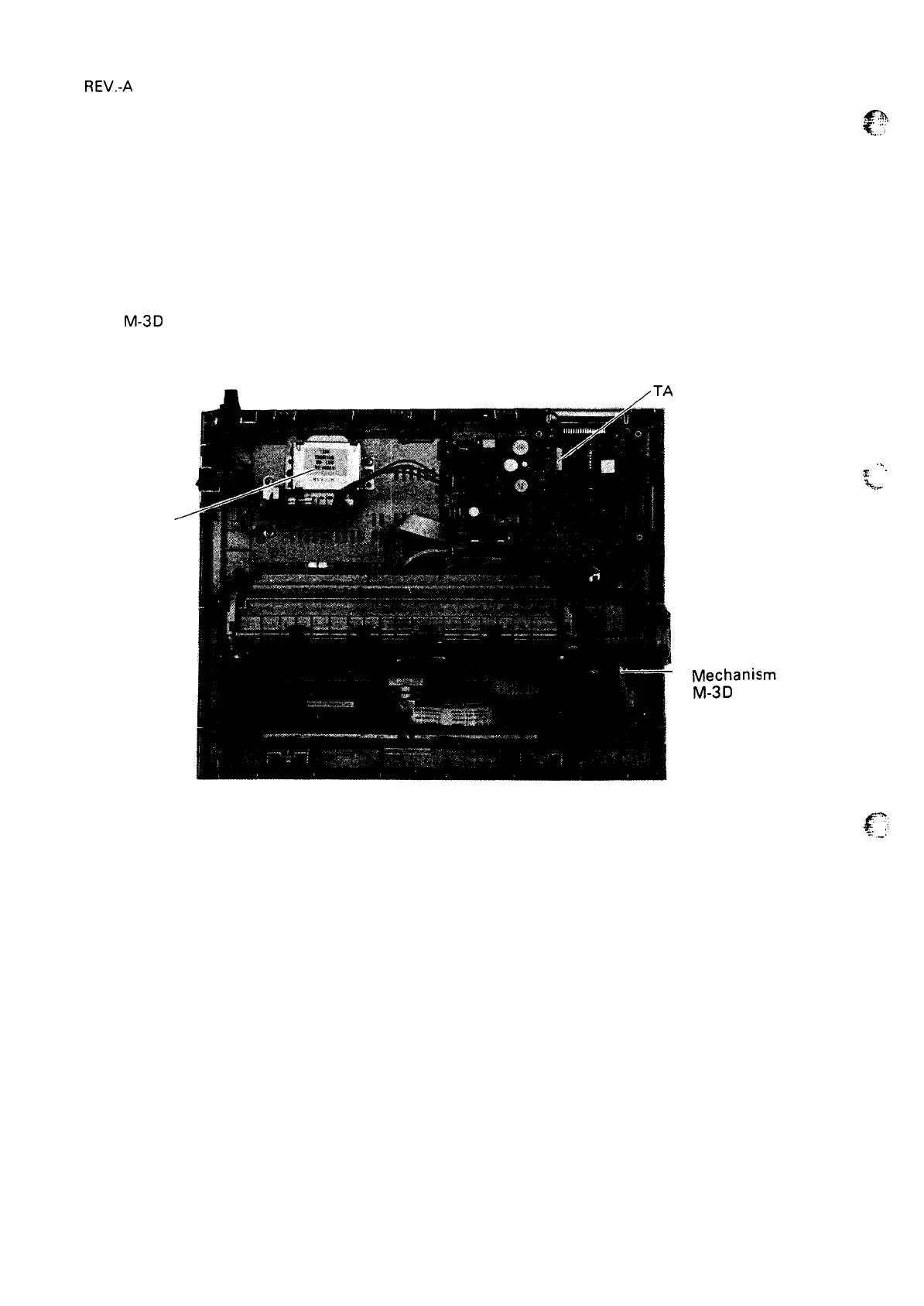

Figure 1-10. 1.X-81 0/850 Component Layout
