5. From the inside of the frame, push the notch of the release lever outward. Remove the release Iever.
Lever

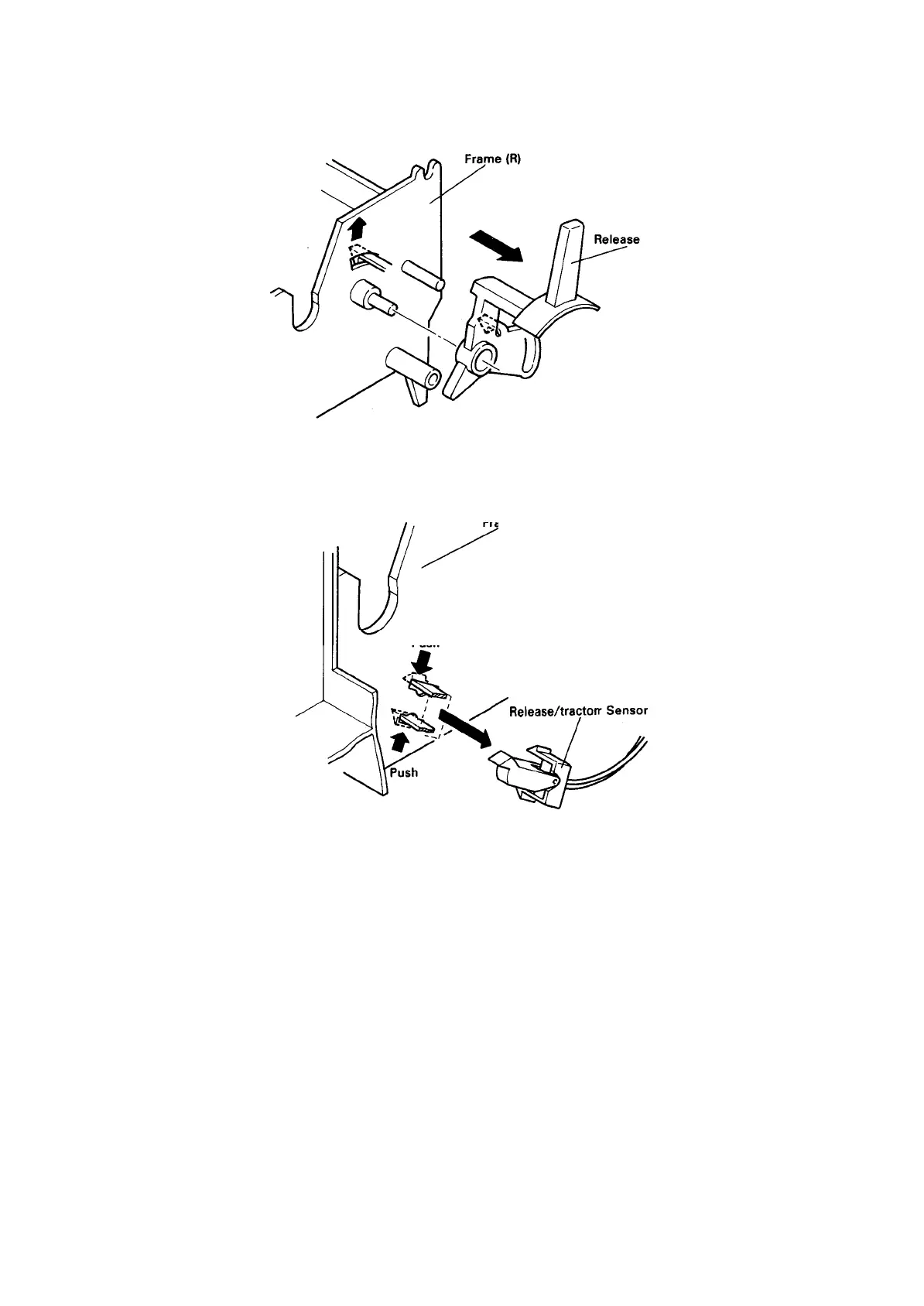

Figure 4-23. Removal of The Release Lever
6. Push the two notches securing the
release/tractor sensor, and remove the sensor.
Frame
//
Push
%*
4
%
,,
/
;L\
,’
Release/trector Sensor
-,
‘/
Push
c
Figure 4-24. Removal of Release/Tractor Sensor
4-17
