Comfort / CrNi / Steel control panel
Difference be-
tween Comfort,
CrNi and Steel
control panels
The Comfort, CrNi and Steel control panels are identical except for the type of material
used in their construction. The following section deals specifically with the Comfort control
panel, but all the functions described apply equally to the CrNi and Steel control panels.

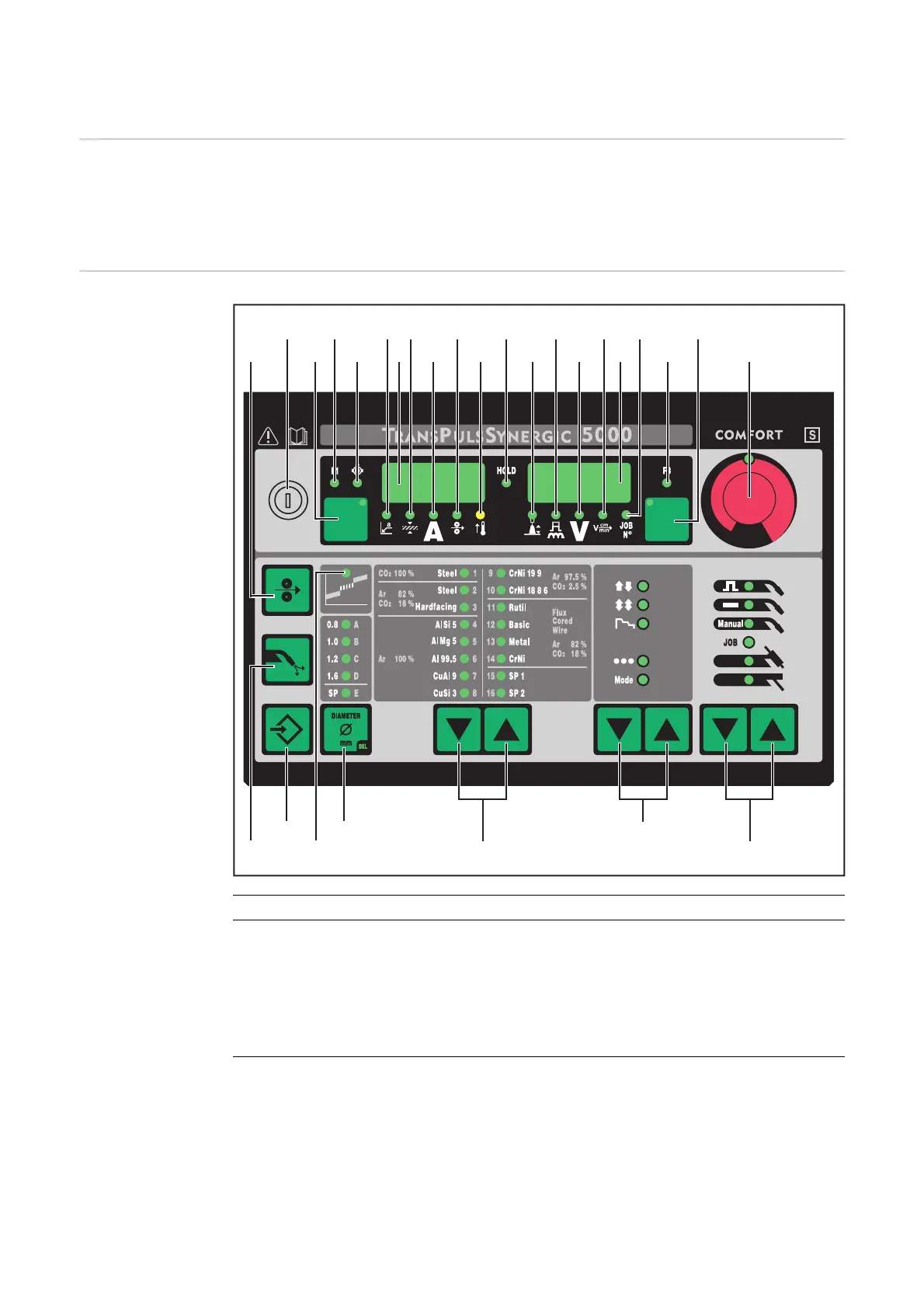

Comfort control
panel
No. Function
(1) Feeder inching button
for feeding the wire electrode into the welding torch-hosepack without any flow of
gas or current
For information on the various wire feed sequences that are possible when the
welder presses and holds the "Feeder inching" button, see the Fdi parameter in
the Setup menu.
(2) Keylock switch (optional)
When the key is in the horizontal position, the following functions are disabled:
- Selecting the welding process using the Process button(s) (22)
- Selecting the mode using the Mode button(s) (23)
- Selecting the filler metal using the Material button(s) (24)
- Opening the Setup menu using the Store button (27)
- Opening the job correction menu (see “Job mode”)
(14)(4)
(1)
(28) (26)
(25)
(5)
(18)
(15)
(12)
(11)
(10)
(3)
(6)
(9)(7)
(16)(8)
(27)
(24)
(23)
(22)
(13)
(2)
(19)
(17)
(20)
(21)
