TS 4000 / 5000,
TPS 3200 / 4000 /
5000, TIME 5000
Digital power
sources

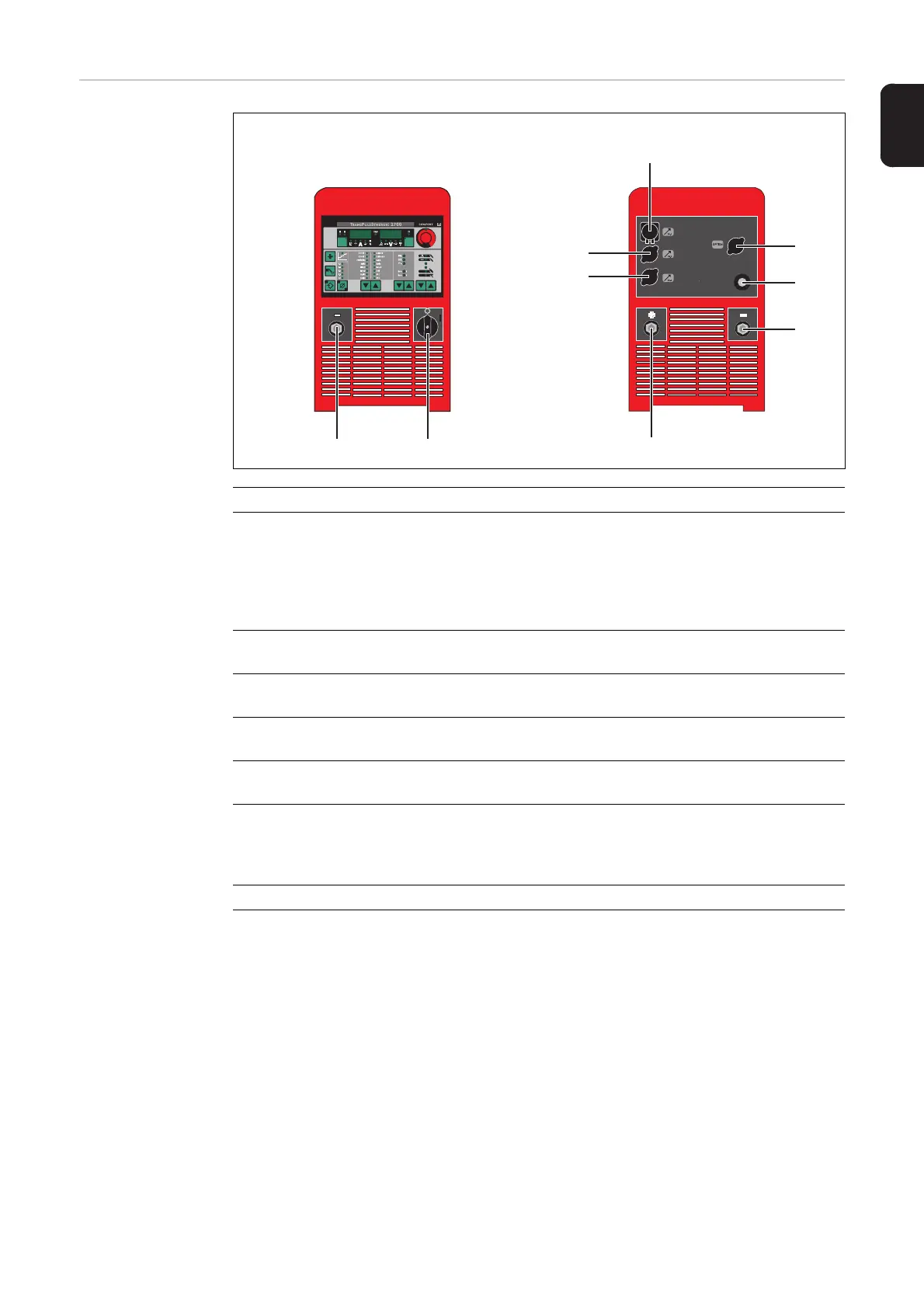

Front view Rear view
No. Function
(1) (-) - Current socket with bayonet latch
for:
- connecting the grounding (earthing) cable during MIG/MAG welding
- the current connection for the TIG welding torch
- connecting the electrode cable or grounding (earthing) cable during MMA
welding (depending on the type of electrode used)
(2) Mains switch
for switching the power source on and off
(3) Blanking cover
Reserved for LocalNet or LHSB (LocalNet High-Speed Bus) connection
(4) Blanking cover
Reserved for LocalNet or LHSB (LocalNet High-Speed Bus) connection
(5) LocalNet connection
for interconnecting hosepack
(6) Blanking cover
Reserved for LHSB (LocalNet High-Speed Bus) connection
The LHSB connection is provided as standard with CMT power sources.
(7) Mains cable with strain relief device
(1) (2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
