PC Specialist's Handbook ErgoPro e-, x- and s- Series
First Edition, Release 4 - June 1998 Page 3
Installing and removing mass memory devices
1. If the system is provided with a HD-silencer (A), lift it out. The hard drive itself is placed on plastic pins (B)
and does not have any screws that hold it in its position.
2. If a HD-silencer is not used, remove the four screws (C) that hold the hard drive in its place.
3. The floppy drive is always attached to the carriage with four screws (D), which have to be removed
A
B
D
D
C
B pin : detail
Plastic pin
Rubber
Hard disk
Carriage

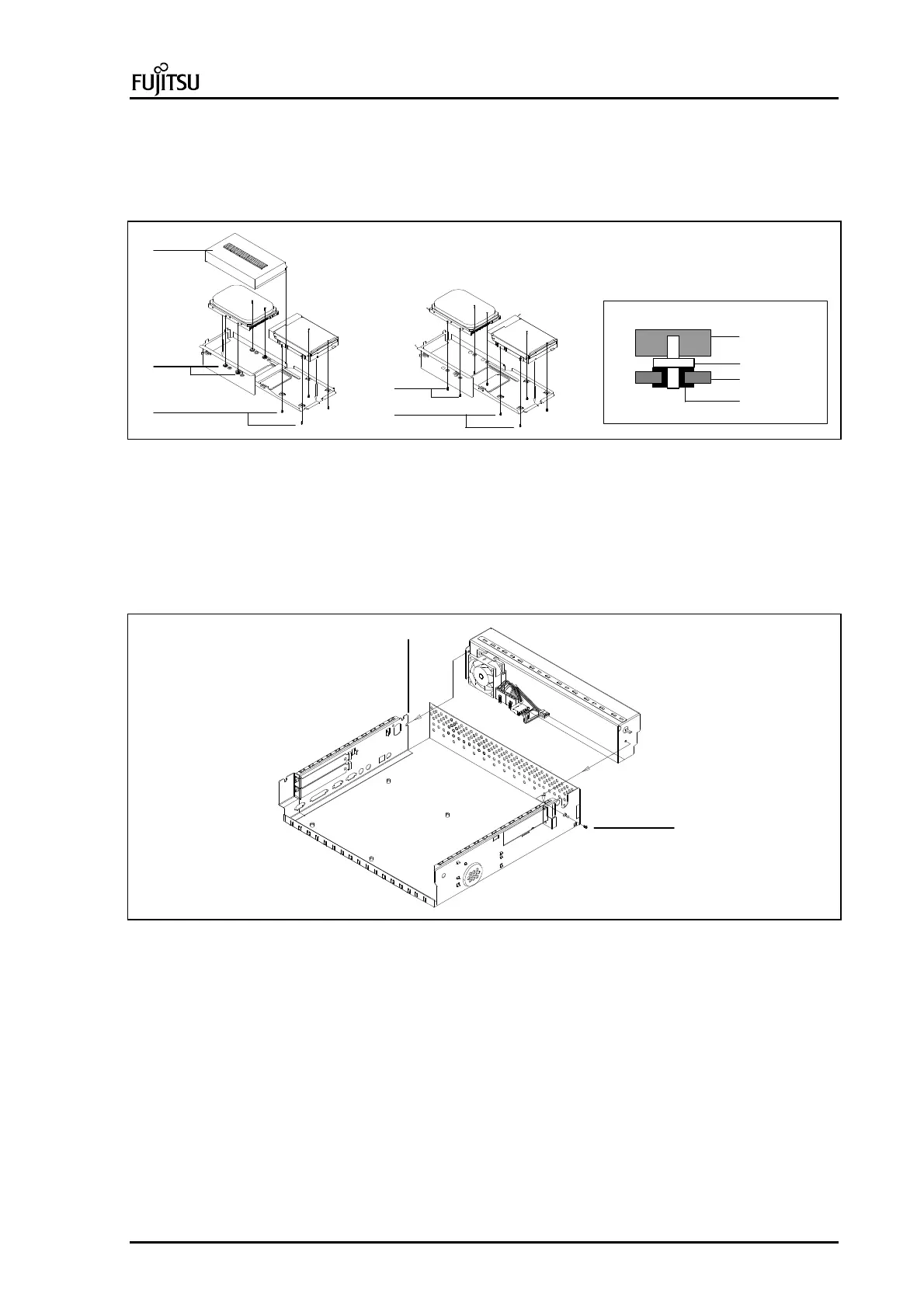

Picture 3 : Installing and removing mass memory devices on carriage (2 slots)
Removing the power supply
1. Remove the disk tray. There is no need to remove the disks from the tray.
2. Disconnect the wiring loom from the motherboard .
3. Disconnect the fan cable from the motherboard.
4. Undo the two screws which hold the power supply in the chassis. There is one at the front (A), below the
power switch, and one at the rear, next to the top power connector (B).
5. Lift the power supply out of the chassis, lifting both ends at the same time.
A
Picture 4 : Removing the 2 slot power supply
