Fujitsu ErgoPro e Series User Manual

ErgoPro e-, x- and s- Series PC Specialist's Handbook

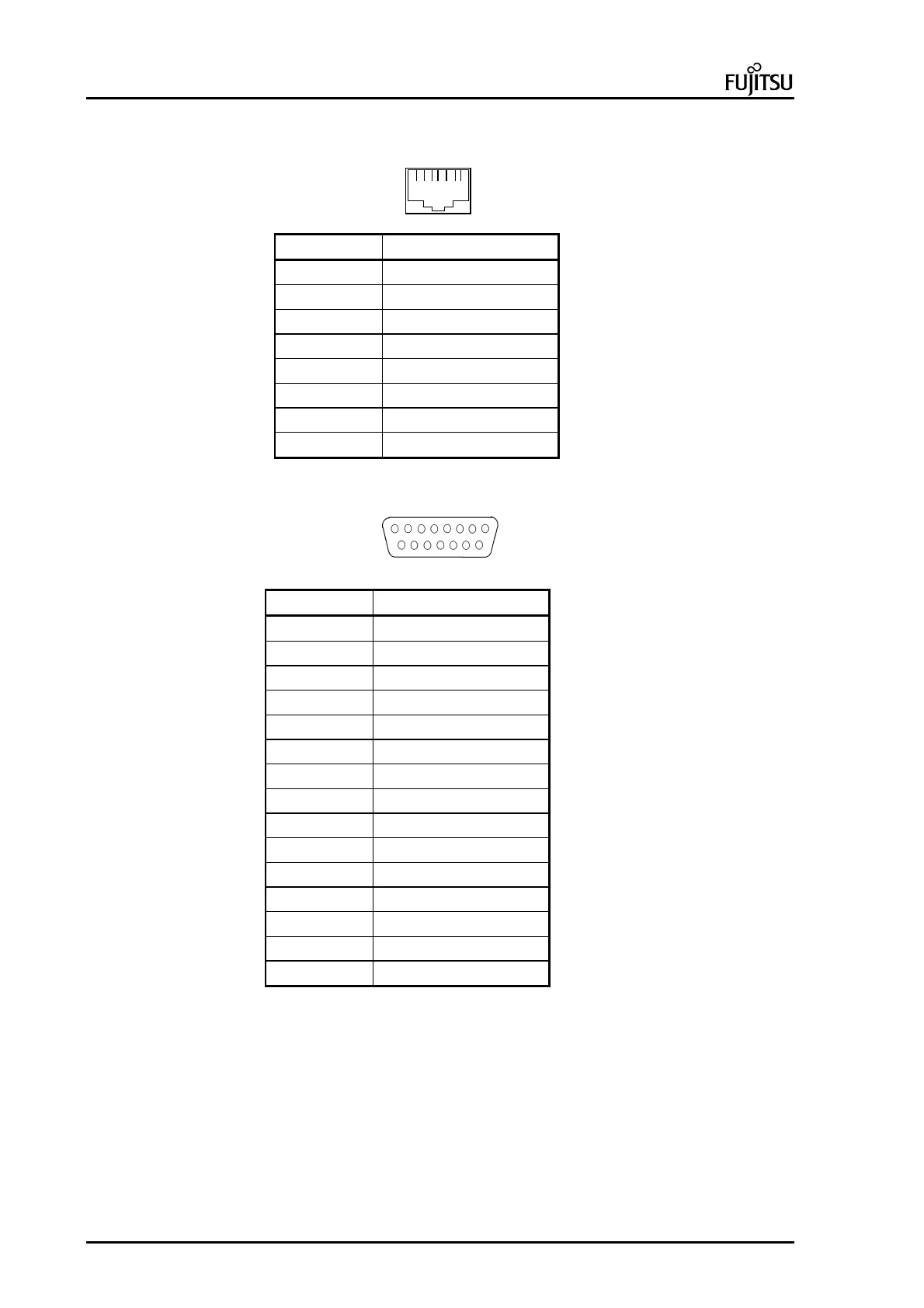

Page 70 First Edition, Release 4 - June 1998
RJ45 (standard twisted pair) Ethernet port
1
8
PIN Signal
1
Transmitted Data (+)
2
Transmitted Data (-)
3
Received Data (+)
4
Not connected
5
Not connected
6
Received Data (-)
7
Not connected
8
Not connected
AUI Ethernet port
18
915
PIN Signal
1
Signal Ground
2
Collision Detect (+)
3
Transmitted Data
4
Signal Ground
5
Received Data (+)
6
Signal Ground
7
Not connected
8
Signal Ground
9
Collision Detect (-)
10
Transmitted Data
11
Signal Ground
12
Received Data (-)
13
Power (+12 V)
14
Signal Ground
15
Not connected
