PC Specialist's Handbook ErgoPro e-, x- and s- Series
First Edition, Release 4 - June 1998 Page 5
4-Slot assembly/desassembly
Opening & closing the system unit cover
To open the system unit cover, do as follows:
1. Remove any diskette(s) from the drive(s).
2. Turn off the display unit, system unit, and all other separately powered attached units.
3. Unplug the power cables of the system unit and other attached cables from their outlets.
4. Unlock the security lock , if applicable, by turning the key clockwise.
5. Remove the screw(A) at the rear with the medium-sized posidrive screwdriver.
6. Slide the cover about 30mm(B) toward the front panel of the system unit, and lift (C) it slowly straight up
as in the picture.
B
C
C
25 to 30 mm
C

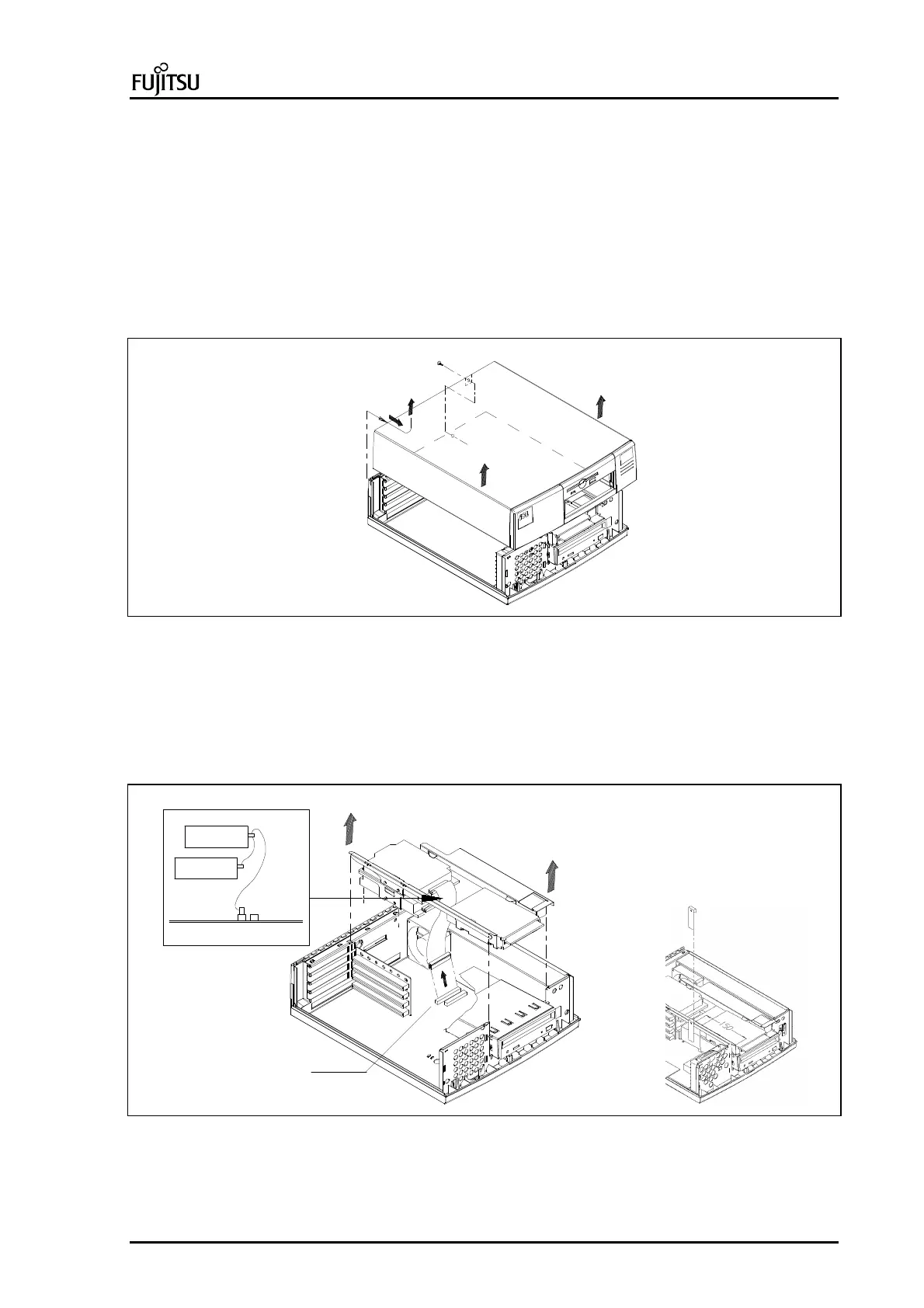

Picture 6: Opening and closing the 4 slot system cover
Removing and installing the mass memory carriage
If you have installed a new hard disk or diskette drive, or replaced an existing drive with another type, check the
Hard disk or Floppy Drive parameters in the SETUP.
1. If the system is provided with the hard disk silencer, see instructions on the next page.
2. Disconnect the power and data cables from the fixed disk and diskette drives (A).
3. Take out the mass memory carriage (B)
A
System board
1
0
B
B
Picture 7 : Removing the mass memory carriage (4 slot)
To Next Page
