ErgoPro e-, x- and s- Series PC Specialist's Handbook
Page 4 First Edition, Release 4 - June 1998
Replacing the mother board
1. Remove any adapter card(s).
2. Remove the disk tray.
3. Disconnect the fan and the power supply, and remove the data cables from the motherboard.
4. Disconnect the LED cable , noting its position.
5. Remove the backplane .
6. Undo the screws which secures the motherboard (A) into the chassis, slide the motherboard towards
yourself to free it from the hooks, and lift it out of the chassis.
A
A
A

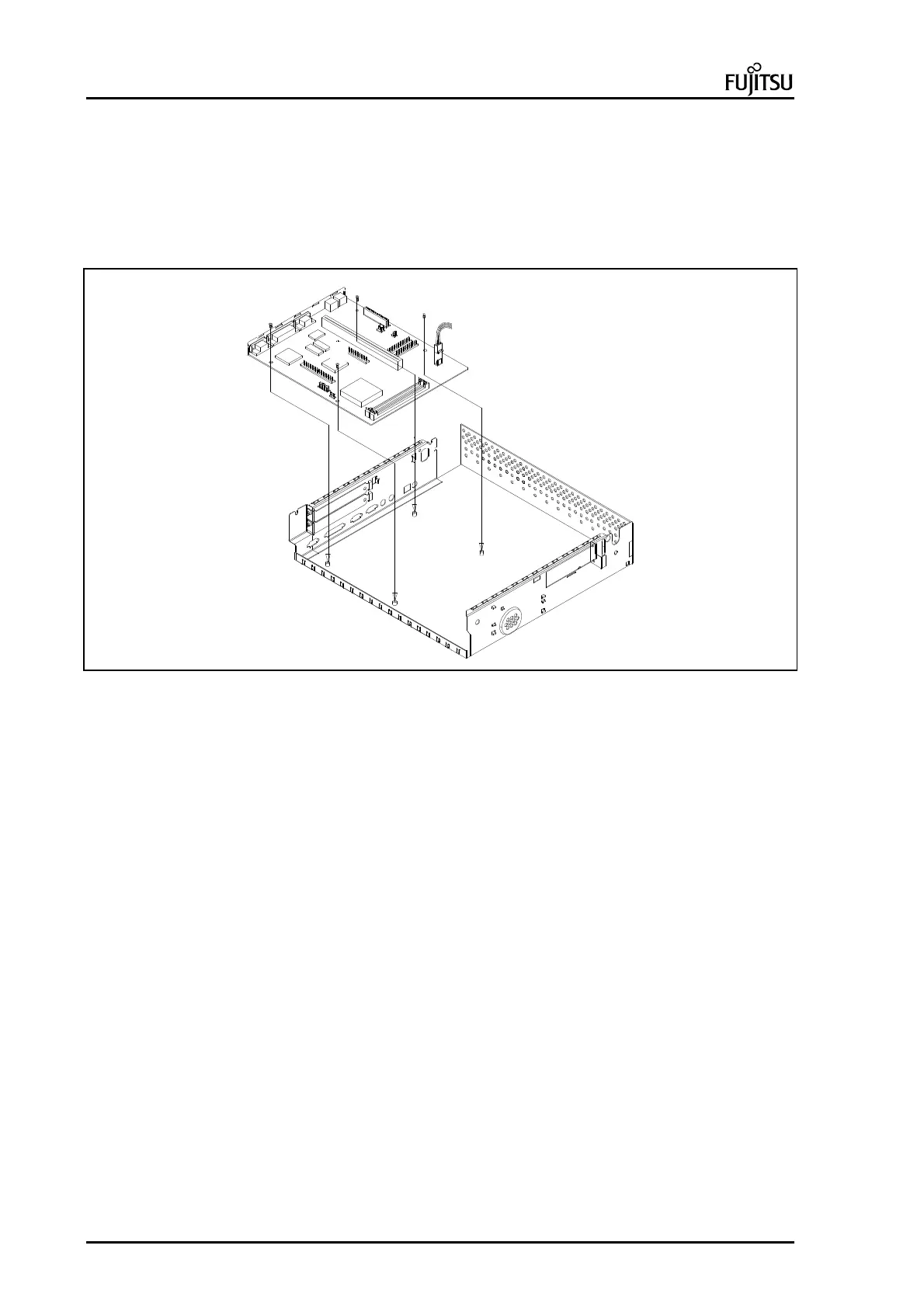

Picture 5 : Removing the motherboard (2 slot)
