ErgoPro e-, x- and s- Series PC Specialist's Handbook
Page 18 First Edition, Release 4 - June 1998
Cache type selection jumpers
The integrated cache controller (OPTI 82C557M) supports 0/256/512kB Asynchronous and Pipeline Burst
Synchronous implementations using a direct-mapped write-back scheme. It supports read and write bursting 3-2-
2-2 bursts for Asynchronous and 3-1-1-1 burst for synchronous SRAM’s.
Cache type
selection 2
Cache type
selection 1

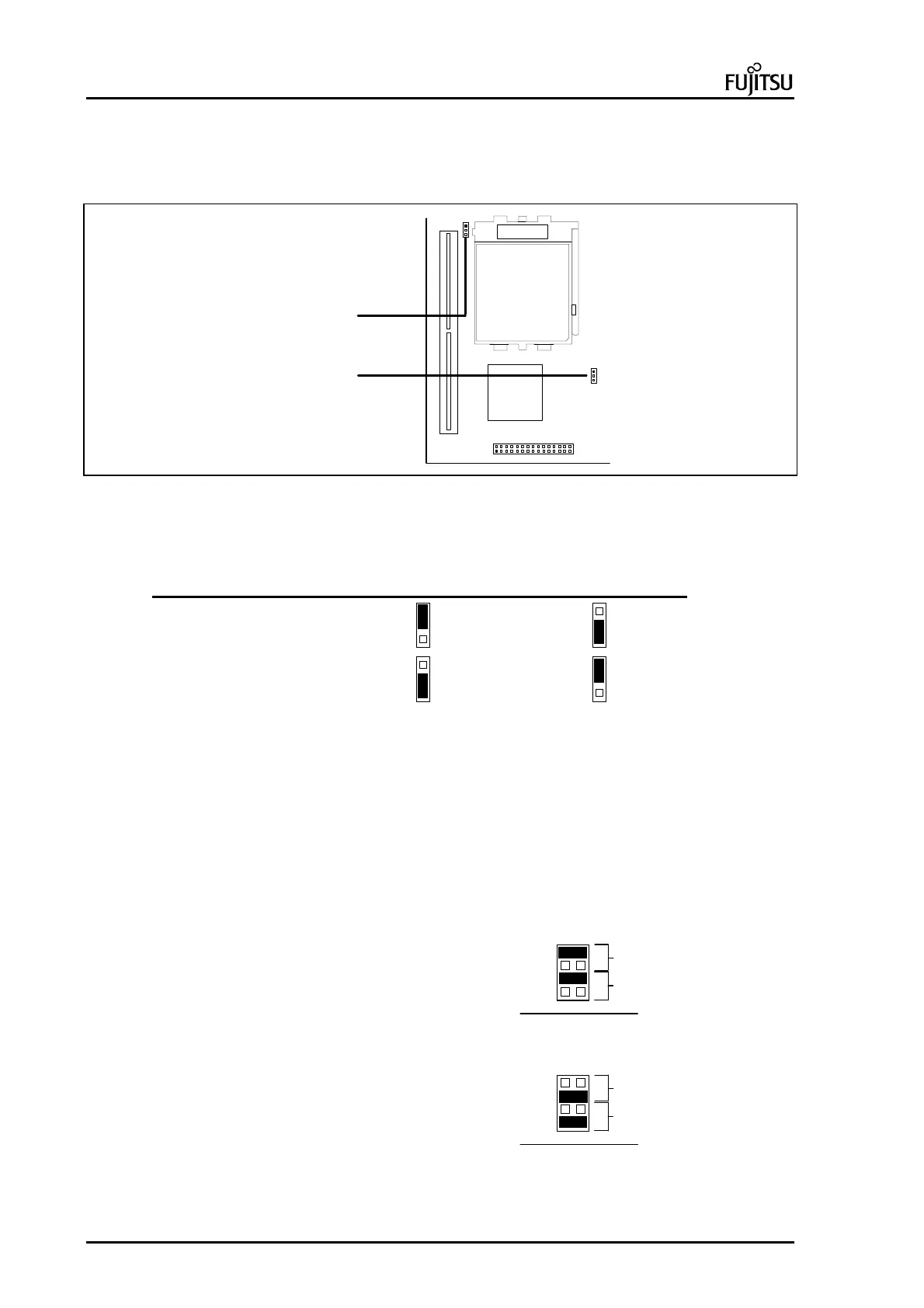

Picture 23: Cache selection jumpers location
Synchronous Cache
Module installed
Asynchronous Cache
Module installed/
No Cache
Jumper Cache Type 1
Jumper Cache Type 2
(This jumper may not be
available on all the
boards)
Memory type selection jumper
The 64-bit memory subsystem supports two types of 32-bit SIMM modules, EDO mode DRAM and Fast Page
mode DRAM (standard DRAM). These types of RAM can be used at the same time, but not in the same memory
bank. EDO DRAM can be used in BANK 0 and Fast Page DRAM in BANK 1 or vice versa, but not mixed in the
same bank. To full fill the 64-bit data bus width, SIMM modules must be installed in pairs. Jumpers for memory
type must be always set according to the installed SIMM type.
Jumper setting
EDO RAM in Bank 0 & Bank 1 (or no SIMMs
in BANK 1)
Bank 0
Bank 1
EDO
EDO
"Front" edge of the PCB
Fast Page
Fast Page
Fast Page RAM in Bank 0 & Bank 1 (or no
SIMMs in BANK 1)
Bank 0
Bank 1
EDO
EDO
"Front" edge of the PCB
Fast Page
Fast Page
