ErgoPro e-, x- and s- Series PC Specialist's Handbook
Page 12 First Edition, Release 4 - June 1998

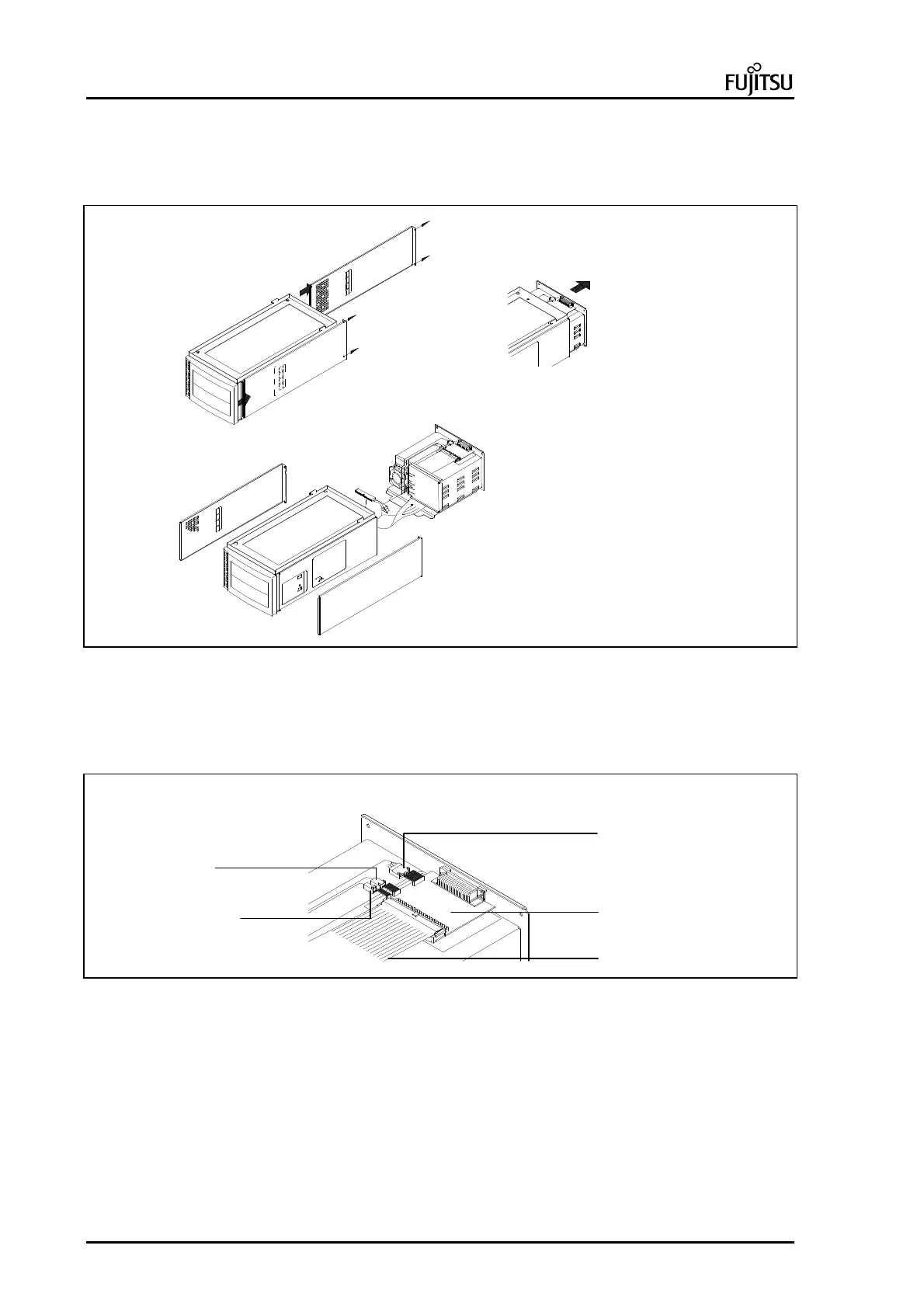

Removing the disk/power carriage from the expansion unit
1. Undo the 4 screws (A) which secures the sides and the carriage into the chassis of the expansion unit.
2. Slide the sides toward the back to remove them (B)
3. Pull out the carriage from the back of the unit.
A
A
A
A
B
Sides
Sides
Disks/Power supply carriage
Picture 16: Removing the Disk/Power carriage
Expansion unit cables
1. Undo the 4 screw (A) which secures the sides and the carriage into the chassis of the expansion unit.
2. Slide the sides toward the back to remove them (B)
3. Pull out the carriage from the back of the unit.
Top of power supply carriage
5 pin Power
connector
SCSI cable
AC41652 SCSI
expansion board
2 pin Fan
connector
3 pin connector
for terminated
power
Picture 17 : Expansion unit cables
