APPENDIX D: INSTALLATION AND INTERFACING
MOUNTING THE aera IN THE AIRCRAFT

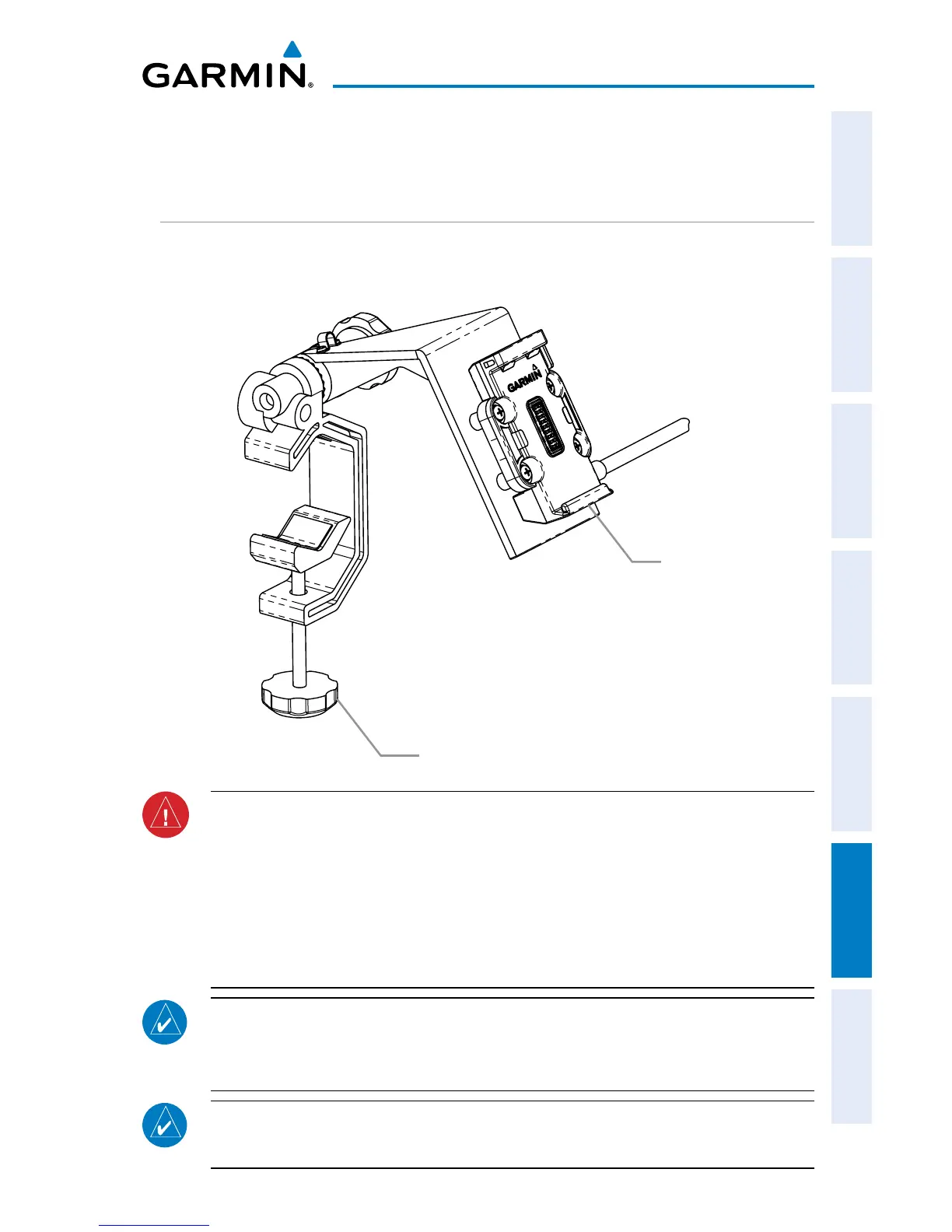

The aera yoke mount comes fully assembled as shown below. The yoke mount is
designed to fit the majority of conventional aircraft yokes and center column controls.
aera Cradle
Clamp Adjustment Knob
WARNING: It is the sole responsibility of the owner/operator of the aera
to place this mount and secure the unit so that it will not interfere with the
aircraft's operating controls and safety devices, or cause damage or personal
injury in the event of an accident or turbulence. Do no mount the aera where
the pilot or passengers are likely to impact it in an accident, collision, or
turbulence. The mounting hardware provided by Garmin is not warranted
against turbulence, collision damage, or related consequences.
NOTE: After installation, verify flight controls are free and clear per the flight
manual of the applicable aircraft and that the aera yoke mount and wiring
do not cause any interference with the flight controls.
NOTE: Readjust the position of the aera to provide the best view of the display
screen as lighting conditions change.
