The TIS-A Status field indicates one of the following messages:
• Waiting For Data—searching for a valid TIS-A data stream.
• Data Available—receiving TIS-A data from the transponder.
• Data Unavailable—connection to transponder established, but TIS-A service is
unavailable.
• Lost Connection—an error occurred or the connection to the transponder was
lost.

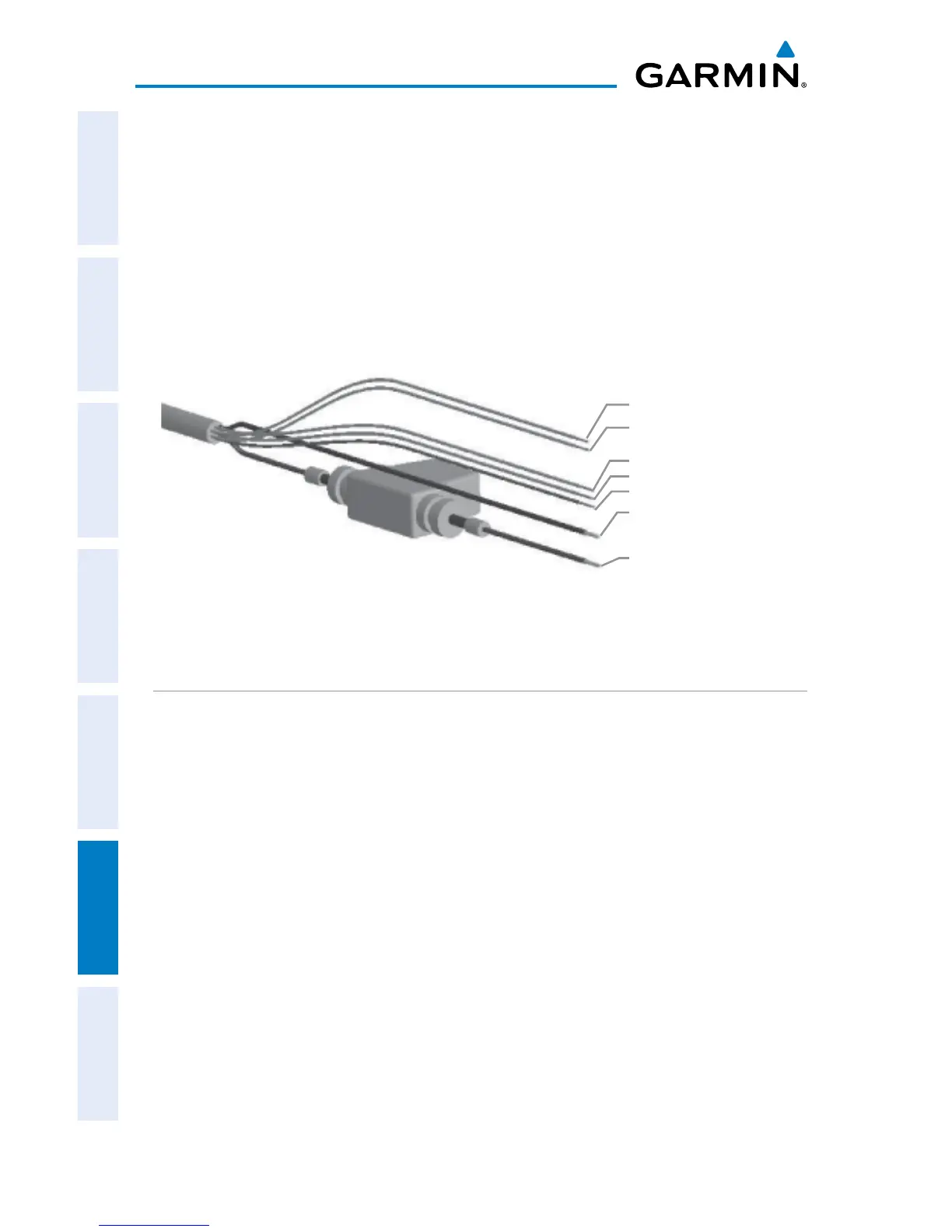

aera Aviation Bare Wire Connector (P/N 010-11385-03)
Blue: TX (Data Out)
Yellow: RX (Data In)
White: Audio Right
Brown: Audio Left
Black: Power Ground/
Data Ground
Green: Audio Common
Red: Power
CONNECTING TO A GDL 39
To receive weather and traffic information from the GDL 39, the GDL 39 must be
connected to the aera using the ‘GDL 39 Power/Data Cable to Aera 500 Series’ (P/N
010-11686-30) or through a GDL 39 bare wire cable (P/N 010-11686-40) installation.
The aera must also be configured correctly to receive traffic and weather information
from the GDL 39 as described below.
Configuring aera for GDL 39:
1)
Connect the aera to the GDL 39 through the Power/Data Cable or bare wire
cable.
2)
From the Main Menu, touch Tools > Setup > Interface.
3)
Touch the 'Serial Data Format' data field button. A vertical list is displayed.
4)
Touch 'Garmin Data Transfer'. When recognized, the GDL 39 device and
connections information is shown.
5)
To view GDL 39 detailed connection/update status, from the Main Menu,
touch Tools > Data Link.
