Garmin aera 500 Series Pilot’s Guide
190-01117-02 Rev. C
Appendix D
159
Overview GPS Navigation Flight Planning Hazard Avoidance Additional Features Appendices Index

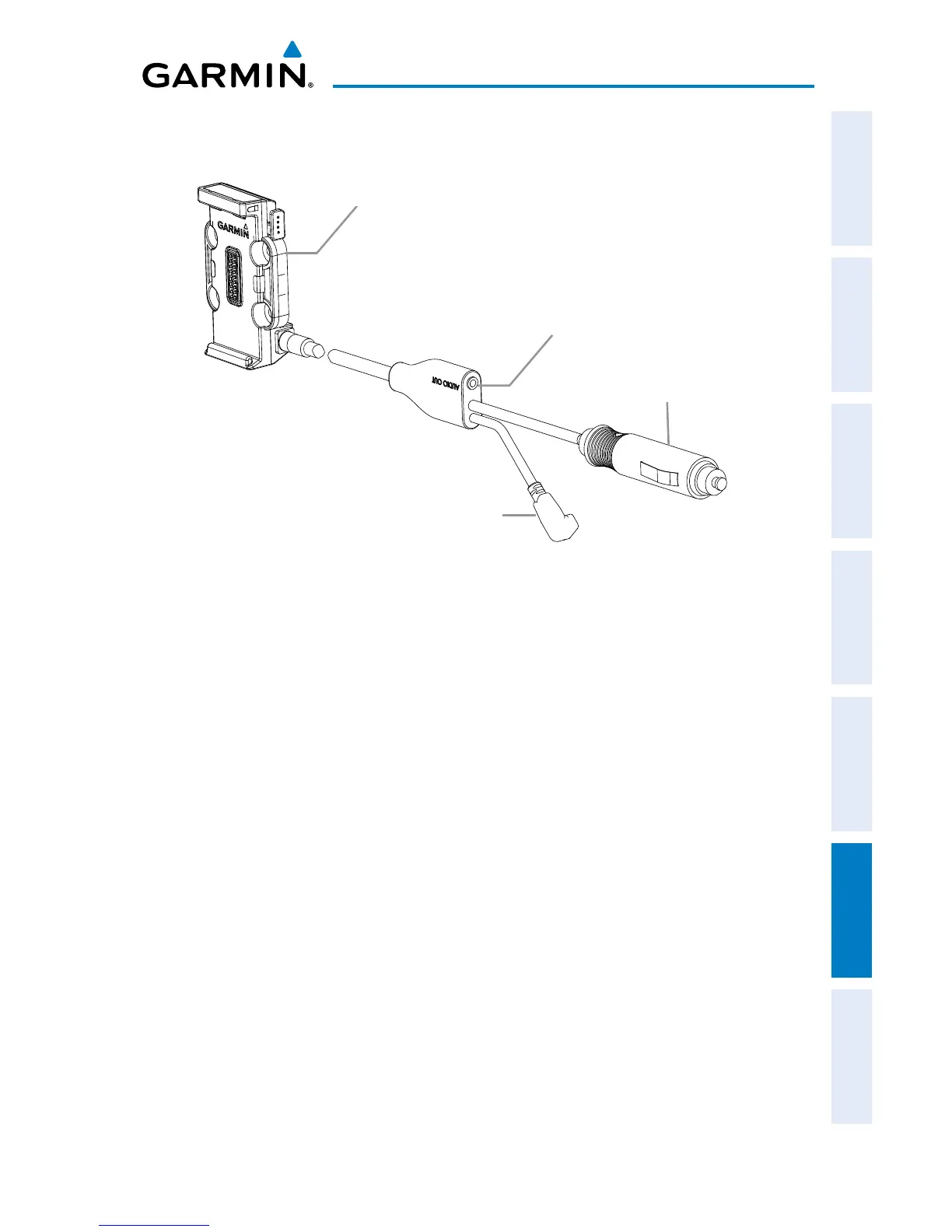

Connecting the cables:
Make all applicable cable connections.
3.5mm Headphone/Audio Jack
Power Plug (3A Fuse)
Mini-USB Connector to the XM
Receiver (aera 510 & 560 only)
Cradle
Reconfiguring the yoke mount for center column yokes:
1)
Loosen and remove the Cradle Adjustment Knob, spacer, and rubber
washer.
2)
Rotate the clamp assembly 90
o
so that the clamp opening faces away from
you.
3)
Secure the clamp assembly to the rest of the yoke mount using the Cradle
Adjustment Knob, spacer, and rubber washer. Adjust the clamp angle
before fully tightening the Cradle Adjustment Knob.
