Garmin G5 Electronic Flight Instrument Part 23 AML STC Installation Manual 190-01112-10
Rev. 21
Page 42
3.4.13 G5 Diode Installation (Both Wire types)
Figure 3-8 shows the installation procedure for the diode into the wiring harness. For part
numbers of diode, see Section 3.2.1. Figure 3-13 shows the placement of the diode on each
power input for the G5. See Section 5 for complete wiring interconnect details.

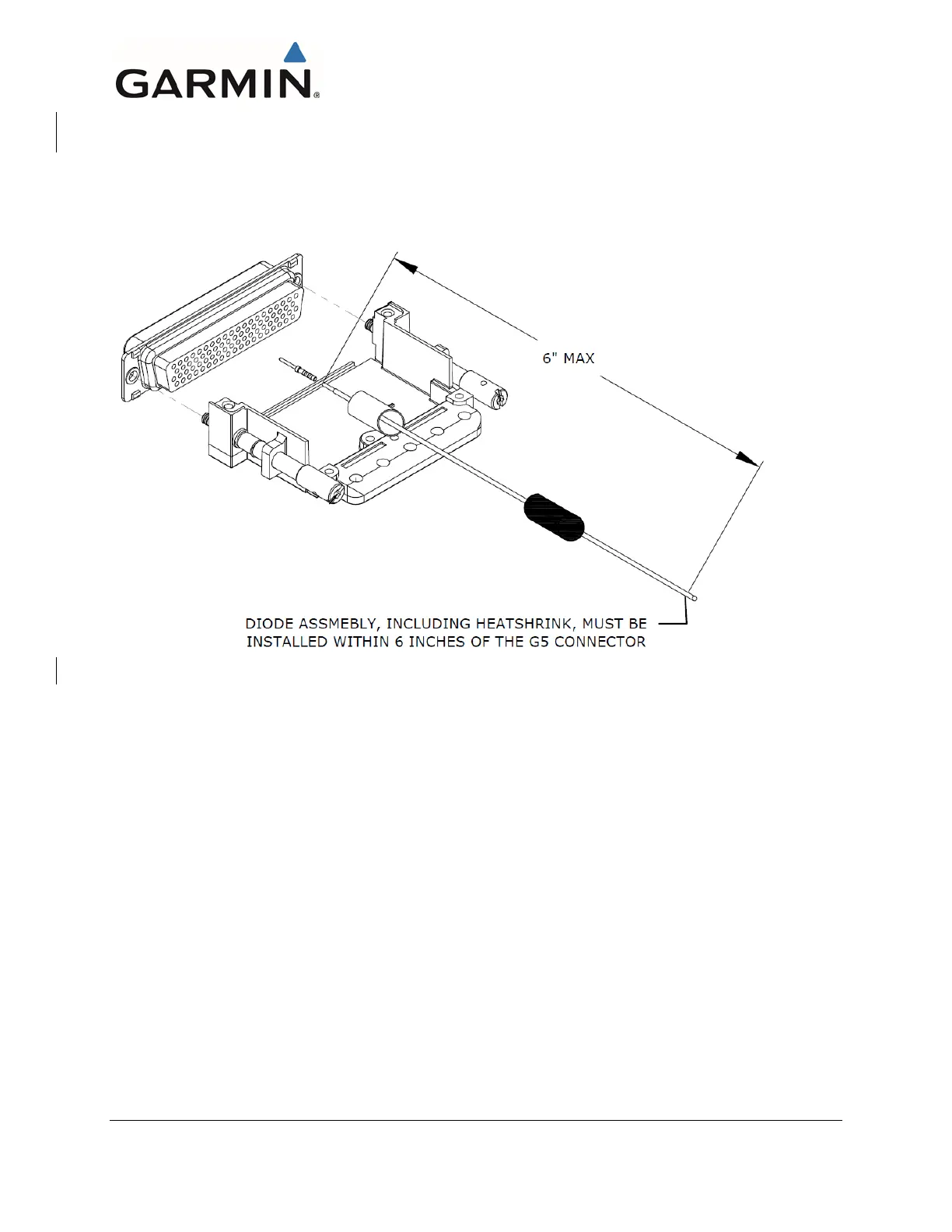

Figure 3-13 Placement of G5 Power Diode (Bothe Wire Types)
To Next Page
