Garmin G5 Electronic Flight Instrument Part 23 AML STC Installation Manual 190-01112-10
Rev. 21
Page 74
4.1.6 Glare Shield Mounted GPS Antenna Mounting Requirements
The GPS antenna (P/N 011-04036-00) is designed for installation on top of an existing instrument panel
glareshield. The selected location must offer good visibility of the sky through the windshield.
Installation of the GPS antenna cannot obstruct or limit the pilot’s vision (even though the antenna has a
low profile). The optimal antenna position is horizontal, or as close to horizontal as practical given the
shape of the glareshield.
Fastener holes for screw-mounted antenna installation, as depicted in Figure 4-43, must not penetrate
through the ventilation or defrost channels built into the glareshield, if present. If the glareshield is part of
the instrument panel structure, fastener holes may only be drilled if provisioned by the aircraft
maintenance manual or structural repair manual.
A TNC/BNC Adaptor (P/N 330-01754-00) is required to connect the GPS antenna to the G5.

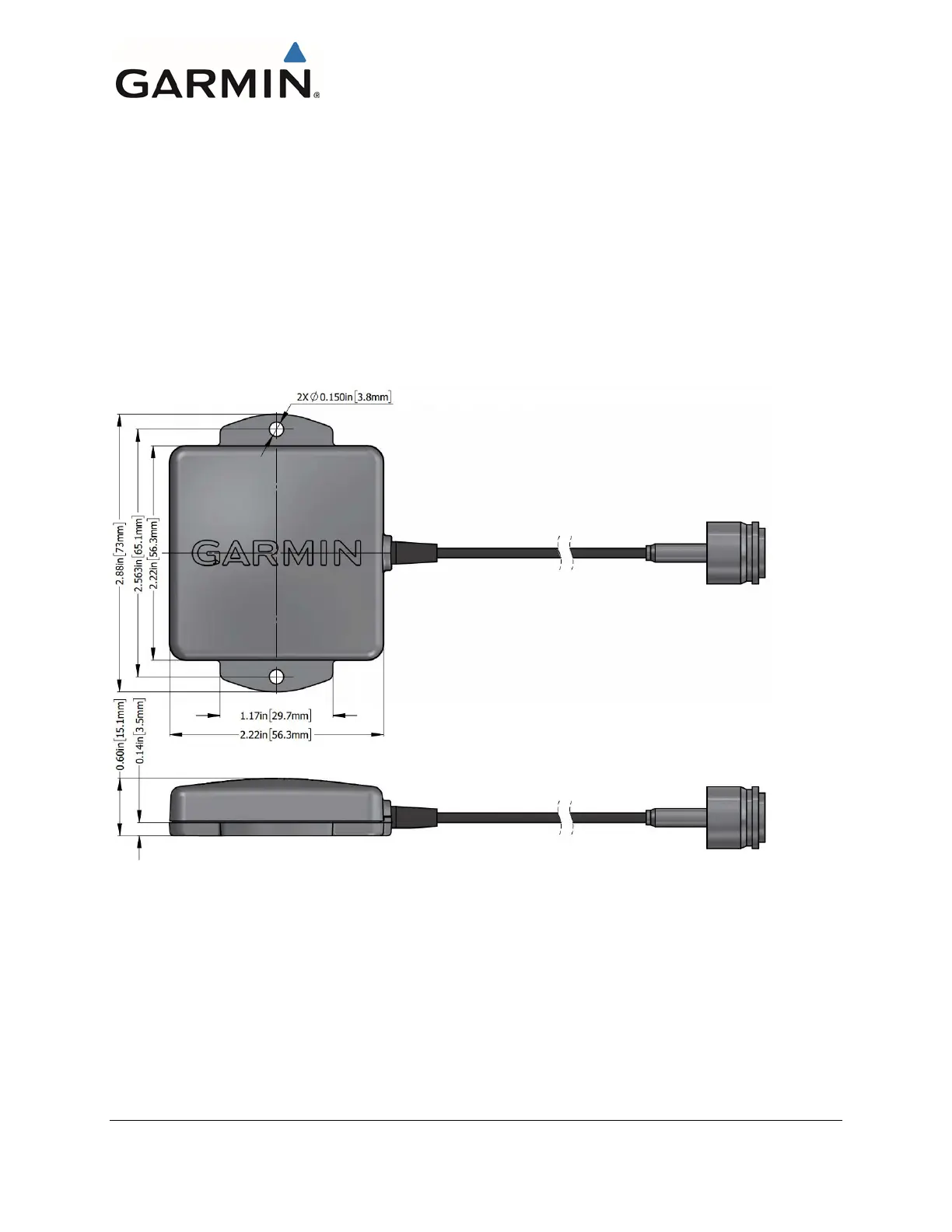

Figure 4-42 – Glare Shield Mounted GPS Antenna Dimensions
This area intentionally blank
