Garmin G5 Electronic Flight Instrument Part 23 AML STC Installation Manual 190-01112-10
Rev. 21
Page 53
Recessed Adapter Plate, 115-02733-00, is required when a G5 unit is recessed in the panel. The plate can
be ordered from Garmin, or field fabricated. If field fabricated, it must be 0.090 thick 2024-T3 aluminum
per Figure 4-15 and must have some type of corrosion
protection (primer, alodine, etc.). The Recessed Adapter Plate includes reference holes and can be used
as a template for creating the recessed cutout.

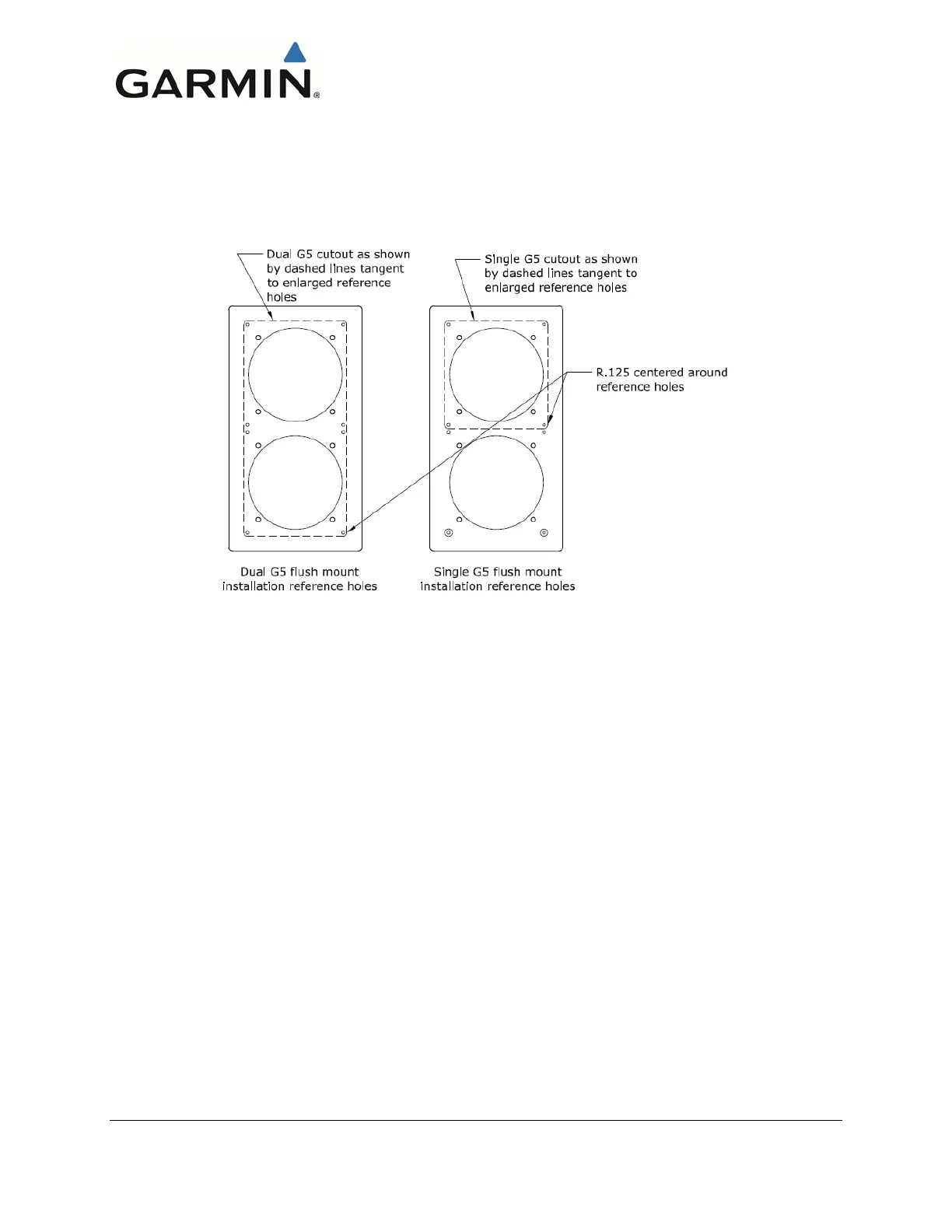

Figure 4-16 Recessed Adapter Plate Template Reference Holes
4.1.2.6.1 Recess Mounting Single G5
Install a single recessed G5 as illustrated by Figure 4-17 and Figure 4-18. A G5 installation in the attitude
position is shown, but the same instructions can be used when installing a G5 in the DG or turn
coordinator positions. Modify 115-02733-00 adapter for single G5 installation per Figure 4-16. A
minimum of four No. 6 MS35206-2XX screws must be used to secure the modified mounting adapter
plate in place. Maintain 1.5D edge distance minimum.
This area intentionally blank
