3–30 845 TRANSFORMER PROTECTION SYSTEM – INSTRUCTION MANUAL
SOFTWARE INTERFACE CHAPTER 3: INTERFACES
Printing Setpoints The software allows the user to print partial or complete lists of setpoints. Use the following
procedure to print a list of setpoints:
1. Select a previously saved setpoints file in the File pane or establish communications
with a device.
2. If printing from an online device, select the Online > Print Device Information menu
item. If printing from a previously saved setpoints file, select the Offline > Print
Settings File menu item.

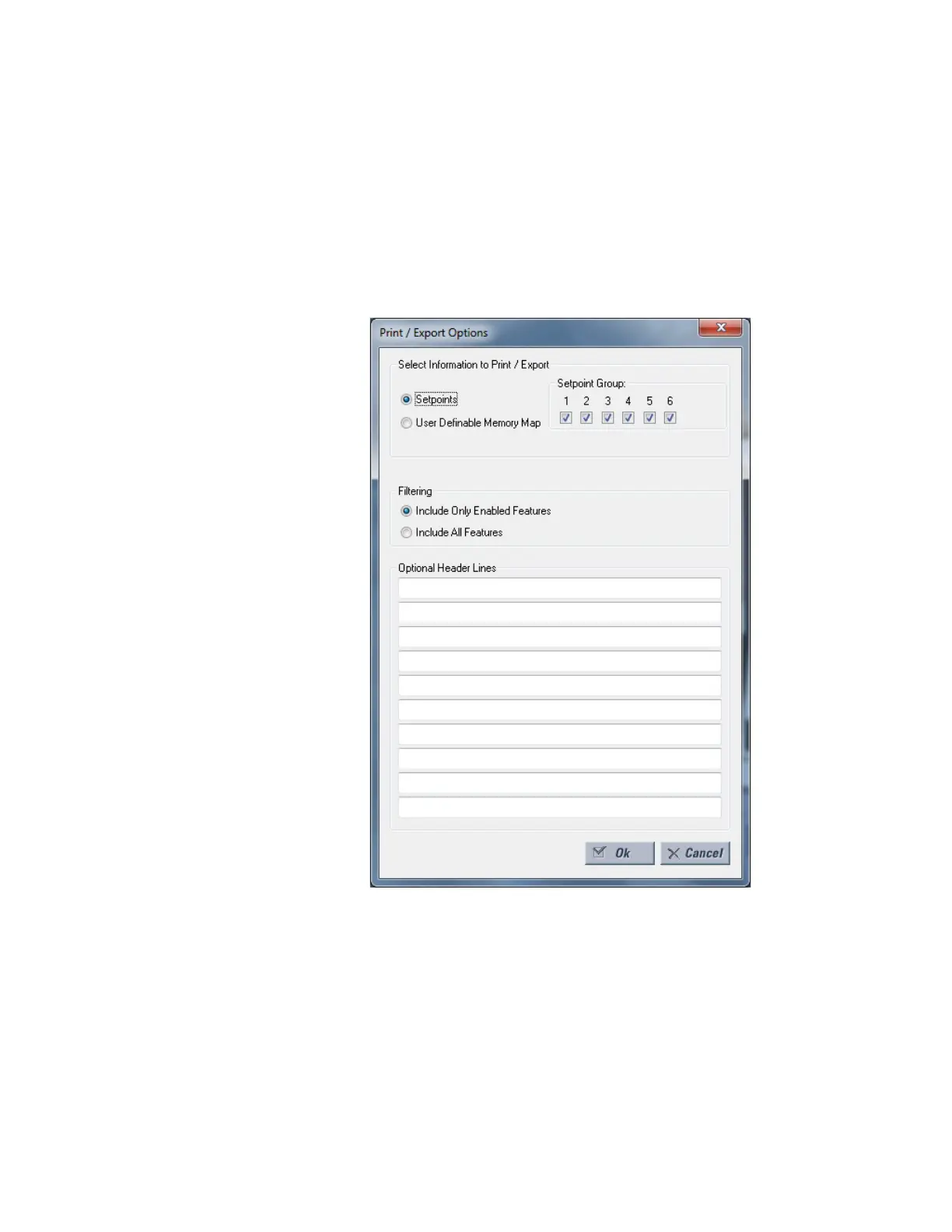

3. The Print/Export Options dialog box appears. Select Setpoints in the upper section
and select either Include All Features (for a complete list) or Include Only Enabled
Features (for a list of only those features which are currently used) in the filtering
section and click OK.
4. Setpoint lists can be printed in the same manner by right clicking on the desired file (in
the file list) or device (in the device list) and selecting the Print Device Information or
Print Settings File options.
