CHAPTER 8: TRANSFORMER M&D
MODELS
845 TRANSFORMER PROTECTION SYSTEM – INSTRUCTION MA
NUAL
8–7
The Dat
a correlation model in this section is a customized trend chart where the user can
select the
requir
ed paramet
er trends to
display.

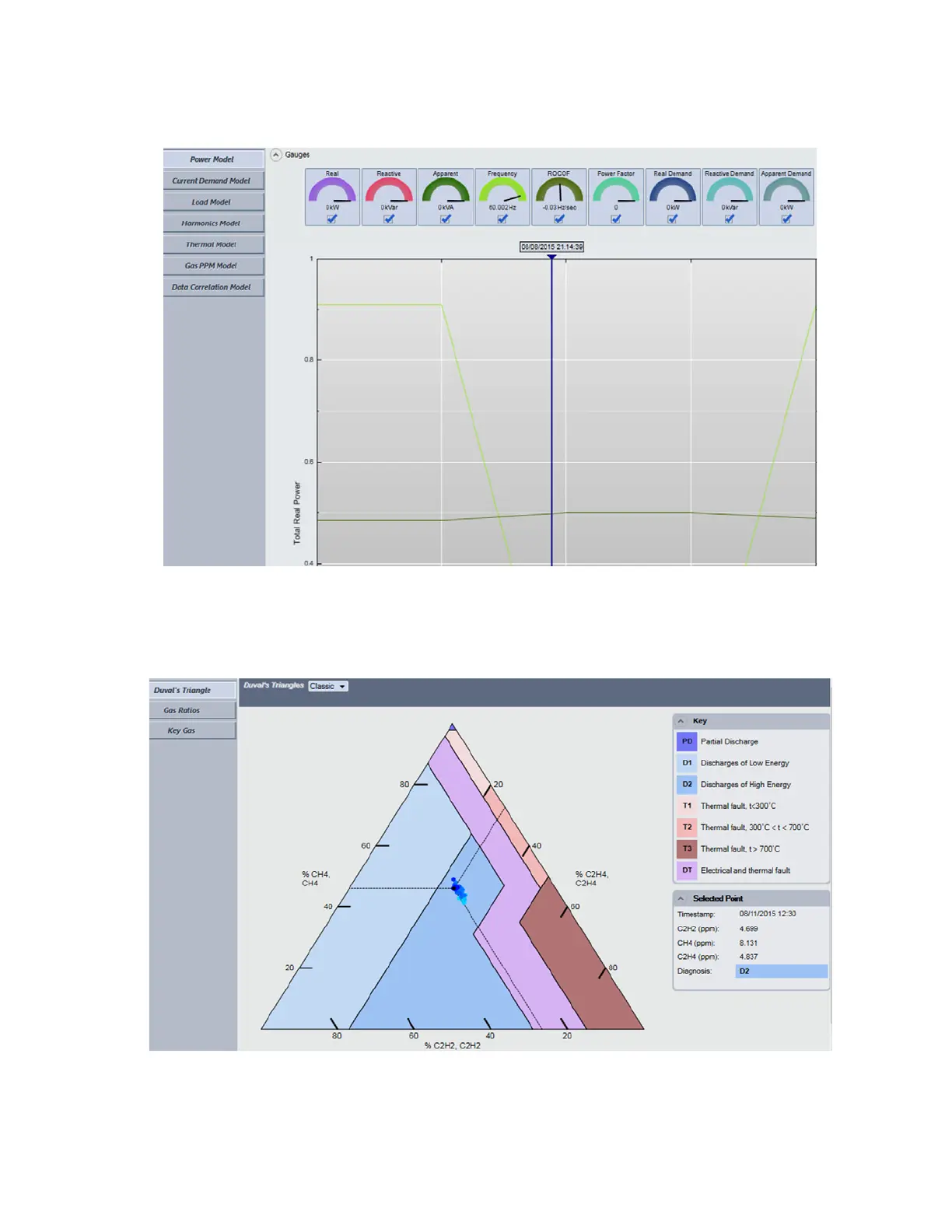

DGA Models
DGA models consist of the standar
d Duval Triangle and G
as Ratios model which is
computed based on the late
st 50 DGA dat
a samples. The Key G
as model is computed
based on the latest DGA dat
a.
