CHAPTER 5: STATUS SUMMARY
845 TRANSFORMER PROTECTION SYSTEM – INSTRUCTION MANUAL 5–3
Annunciator
The graphical annunciator panel emulates a physical annunciator panel. Indicators on the
graphical panel are backlit and have a description of the alarm condition that lights each
indicator. The annunciator panel status window shows the alarms that are active.
To reset an active alarm, first highlight the active alarm using the navigation keys, then
press the reset button to reset the highlighted alarm. If no indicator is selected, all alarms
on the page are reset by pushing the reset button.

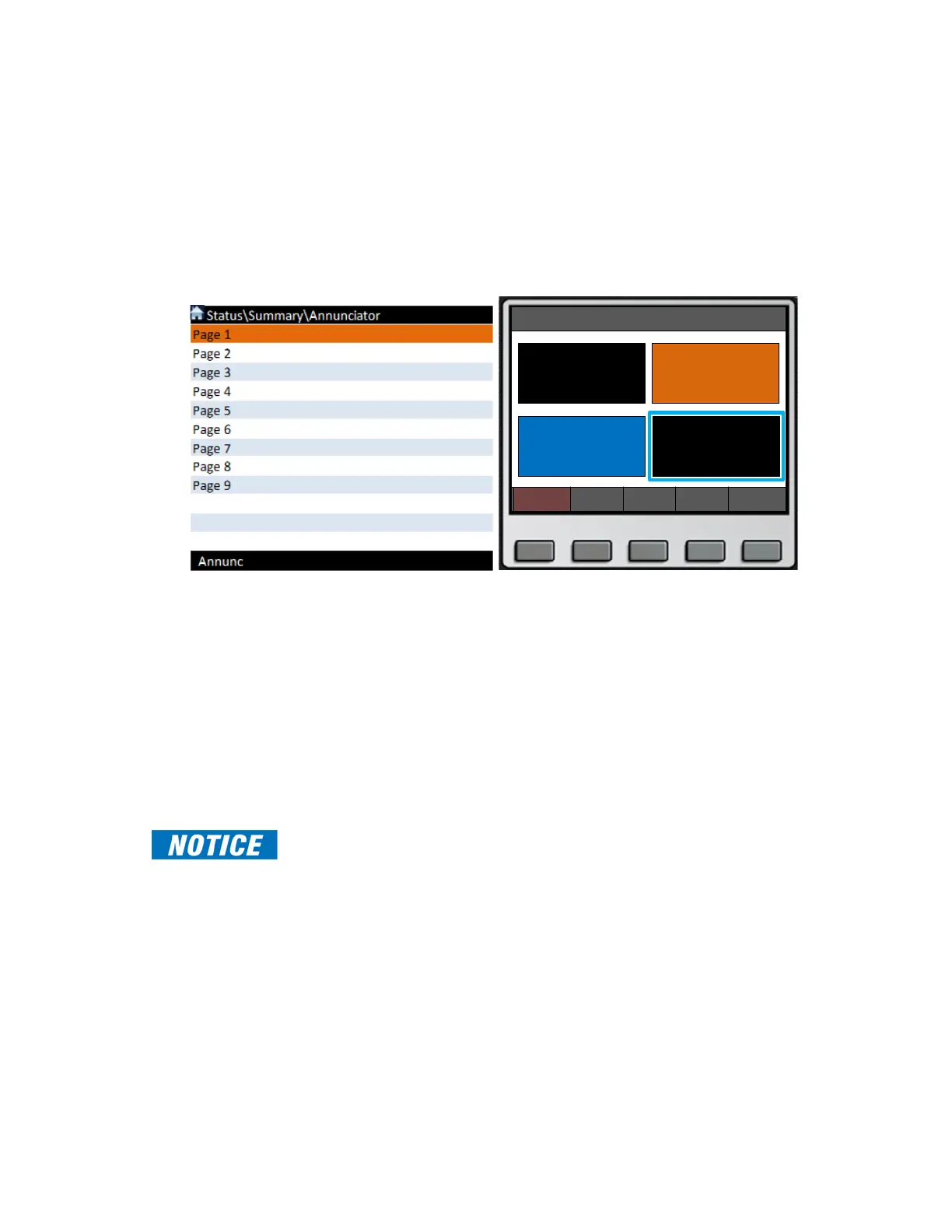

Figure 5-3: Physical and Graphical Annunciator Panels
Tab Pushbuttons
Navigation
There are two ways to navigate to the Tab Pushbutton control pages:
• Relay Home Screens
• Path: Status > Summary > Tab Pushbuttons (from relay)
Home Screens
By default, the Tab Pushbuttons summary page is programmed as one of the Home
Screens. Press the home button repeatedly to cycle through the programmed Home
Screens.
FAST PATH:
Tab pushbuttons can only be controlled physically through the front panel of the relay.
Their operation is not available from the setup software.
Path: Status > Summary > Tab Pushbuttons
The initial view of the Tab Pushbutton controls is the Summary page, which shows the
status of all 20 pushbuttons. To operate the pushbuttons, the user must navigate to the
individual pages where the tab pushbuttons can be used to activate them.
Home\HMI\Annunciator\Page1
Setting
Group 3
Active
Ann. Pg1 Ann. Pg2 Ann. Pg3 Ann. Pg4 >>
Sync
Check
Fail
AR
Cycle
Active
Breaker 2
Failure
To Next Page
