CHAPTER 3: INTERFACES SOFTWARE INTERFACE
845 TRANSFORMER PROTECTION SYSTEM – INSTRUCTION MANUAL 3–53
Conversion Summary
Report
At the end of the conversion process, the results are summarized in a conversion report.
The report is found under Device Definition in the offline file window.

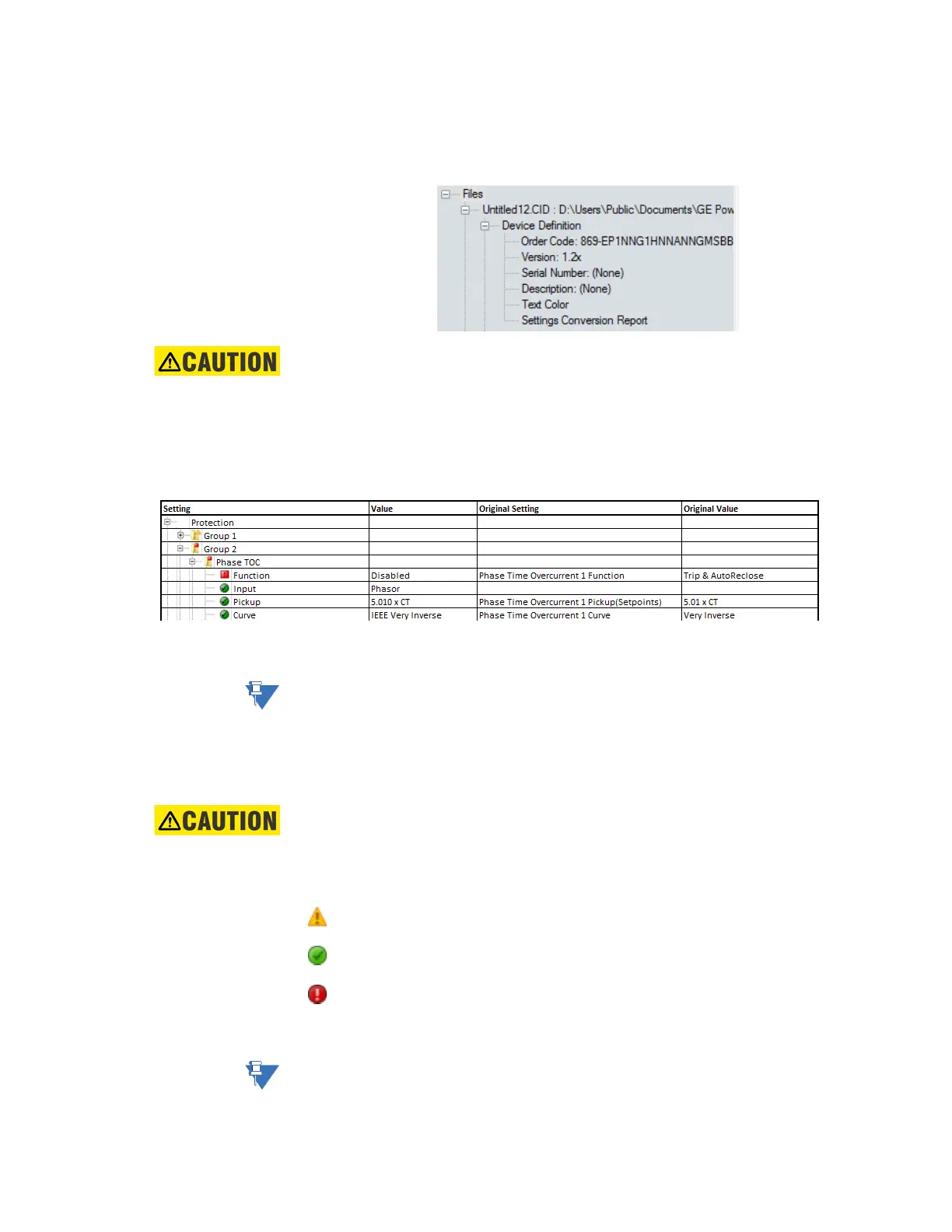

Figure 3-25: Conversion Report in Offline Window
CAUTION:
For future reference, the user is advised to take a printout of the conversion report
immediately after the conversion. All conversion reports are removed and become
inaccessible if the user removes or modifies the converted file from the 8 Series Setup
Software.
Results Window The following figure shows an example conversion summary results window.
Figure 3-26: Results Window
The results window has the following columns:
• Name: the same tree structure as in the offline window, but with status icons
NOTE:
Settings in the results window are linked to setting screens. This means the user can click in
the results window to navigate to the corresponding 8 Series settings window.
• Value: the converted value for the 8 Series settings file
• Original Name: setting name of the input file
• Original Value: setting value of the input file
CAUTION:
All other settings available (not shown in the conversion report) in the 8 Series file are
set to default and must be verified by the user before putting the relay into service.
Status Icons
The status icon shows the conversion results:
Manual configuration required
Successful conversion
Value is not supported
Print Report If desired, the conversion summary report can be printed using the File/Print
command in the EnerVista taskbar or it can be printed from the “GUI” print button.
NOTE:
Although the report shows successful conversion (green checkbox), the settings must still
be verified before putting the relay in service.
