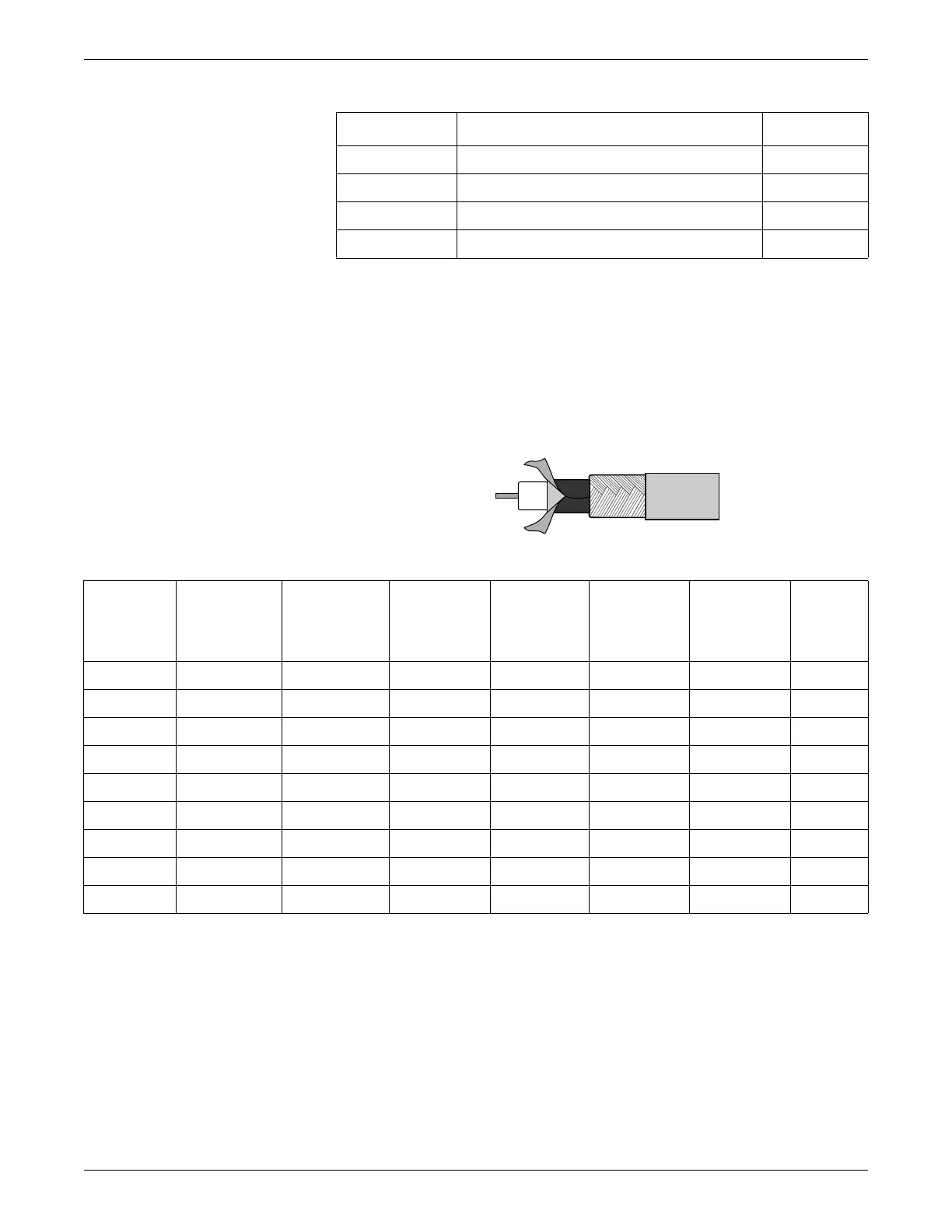

Replaceable parts
For technical specifications, see Antenna amplifier specifications on page A-16.
Coaxial cabling - RG-6 and RG-11
Controlled-impedance cabling is used and 75-ohm RG-6 type is recommended.
Plenum- or riser-rated cable is used to meet NEC fire codes. RG-11 may be used if
cable lengths become long and dB losses become excessive.
075A
Connectors
NOTE
For obsolete connectors, stripping dimensions for the associated cables are
shown in this section.
For current connectors, stripping dimensions for cables are shown in Installation
guidelines on page 3-2.
2001727-004 U.S. Cable Amplifier (560–614 MHz) Obsolete
2001727-005 International Cable Amplifier (420-474 MHz) Obsolete
2001727-006 U.S. Cable Amplifier (560–614 MHz) Current
2001727-007 International Cable Amplifier (420-474 MHz) Current
Part number Description Status
75 Ohm Cable
Part number Coaxial type
dB loss/100 ft
(dB loss /
30 meters)
@ 200 MHz
dB loss/100 ft
(dB loss /
30 meters)
@ 400 MHz
dB loss/100 ft
(dB loss /
30 meters)
@ 600 MHz
dB loss/100 ft
(dB loss /
30 meters)
@1400 MHz
Ohms/1000 ft
(ohms /
300 meters)
Status
4907-001 RG-6 Riser N/A 4.0 5.1 N/A 31 Obsolete
4907-101 RG-6 Plenum N/A 4.5 5.7 N/A 7.5 Obsolete
4908-001 RG-11 Riser N/A 2.9 3.7 N/A 12 Obsolete
4908-101 RG-11 Plenum N/A 3.3 4.3 N/A 12 Obsolete
2018505-001 RG-6 Riser 2.7 3.8 4.7 N/A 6.4 Current
2018506-001 RG-6 Plenum 2.9 4.4 5.5 N/A 6.5 Obsolete
2018506-002 RG-6 Plenum N/A 4.3 5.5 8.7 6.4 Current
2018508-001 RG-11 Riser 1.8 2.6 3.2 N/A 2.6 Current
2018507-001 RG-11 Plenum 2.2 3.4 4.4 N/A 2.6 Current
