6-26 ApexPro™ 2001989-351A
Replaceable parts

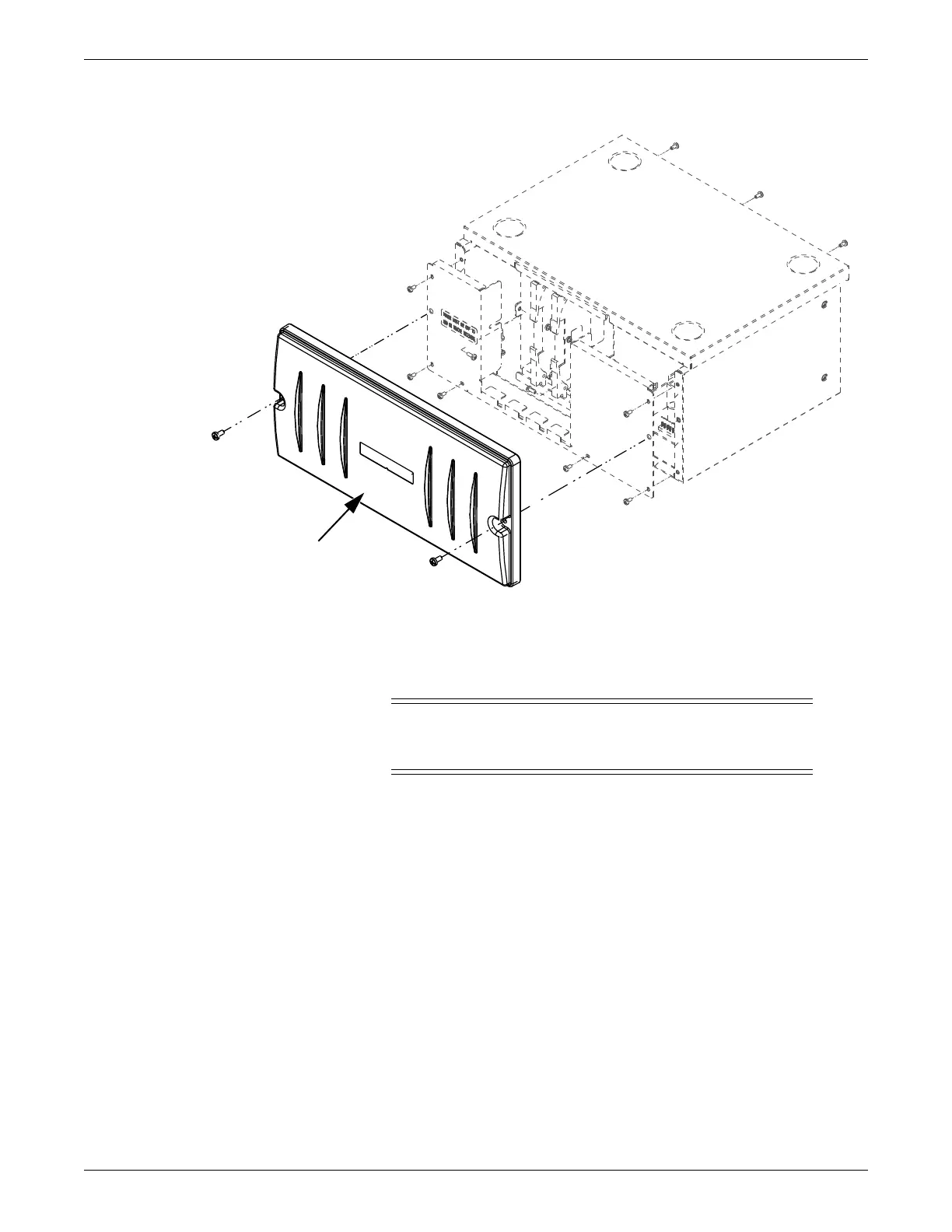

frontcover
Remove a quad receiver module
CAUTION
EQUIPMENT DAMAGE—Do not remove or install Quad Receiver
Modules with power applied.
1. Remove the front cover as described above.
2. Unseat the quad receiver module by pulling the two retaining clips away from the
module.
3. Pull module straight out of chassis.
Add a quad receiver module
1. Remove the front cover as described above.
2. Position a quad receiver module with the protruding side (with label) facing the
right side of the chassis.
3. Slide the protruding edge into the upper and lower chassis track.
4. Keep the retaining clips fully extended until the outer edges meet the receiver
cage.
