Installation and configuration

2001989-351A ApexPro™ 3-9

Install antennas

NOTE

Be sure that after planning and designing the antenna system, the Penetration

Check test (described in the ApexPro Antenna System Installation Test

Instructions) is completed. It is used to estimate the RF penetration of the

hospital construction.

The standard installation for antennas uses a T-bar mount connected to the drop

ceiling support. The retaining clip and pin come with the antenna.

For ceiling tile or dry wall mounting, see Optional antenna mounting kits on page 6-3

to order additional hardware kits necessary for these mounting options. All antenna

mounting installation options and instructions are described in the ApexPro

Telemetry Antenna Mounting Instructions that are included with the antenna.

NOTE

For customer site reasons, some antennas may require installation above the

ceiling. Antennas cannot be mounted in a plenum air shaft, since the antenna is

not plenum rated. For specific guidance on above-ceiling antenna mounting,

contact the Network Design and Integration (ND&I) team.

Install antenna amplifiers

Antenna amplifiers are installed to boost the signal levels from the antenna. The

installation location for the antenna amplifier is generated by the ND&I team for each

site installation.

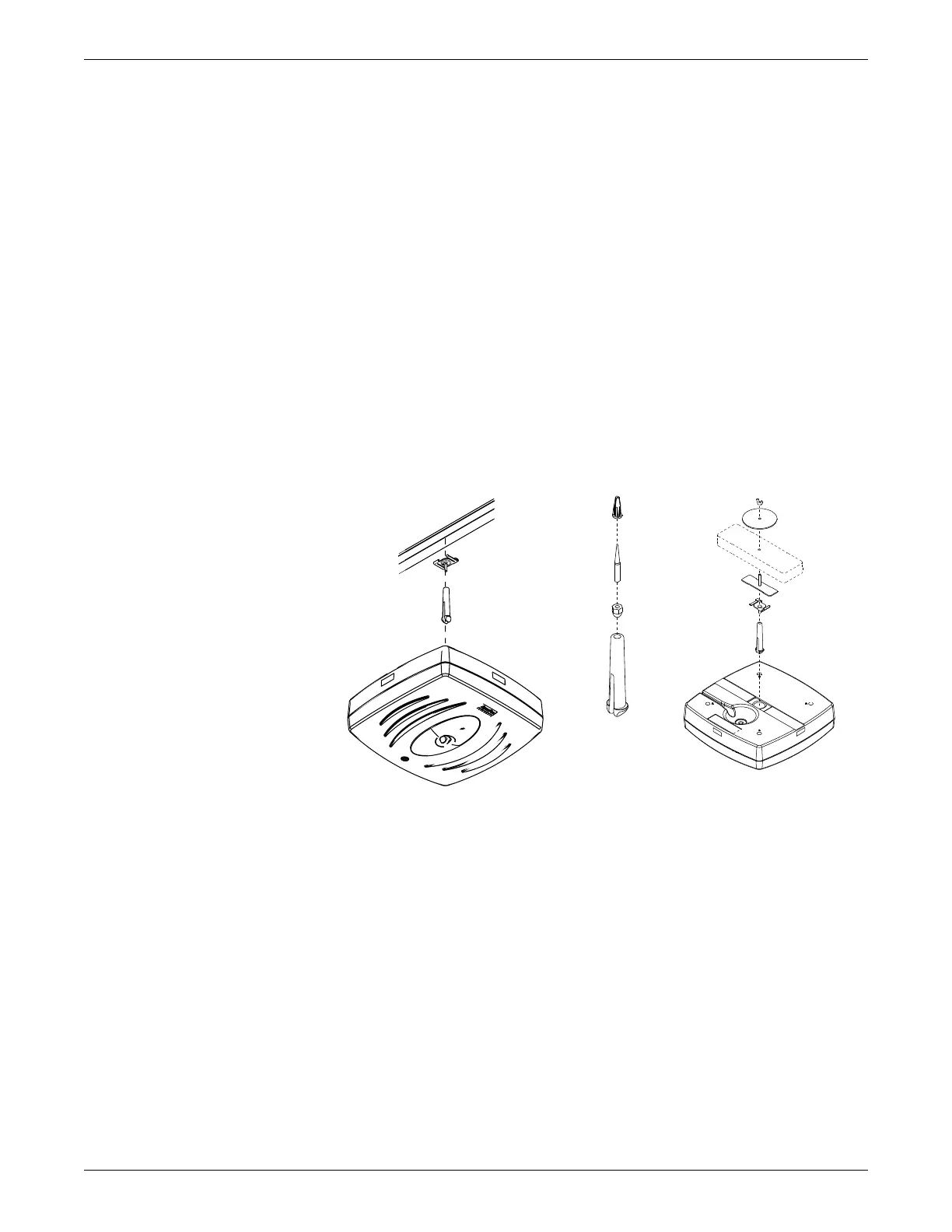

233A

235A

240A

Standard installation Optional dry wall mount and ceiling tile mount
