6-16 ApexPro™ 2001989-351A
Replaceable parts

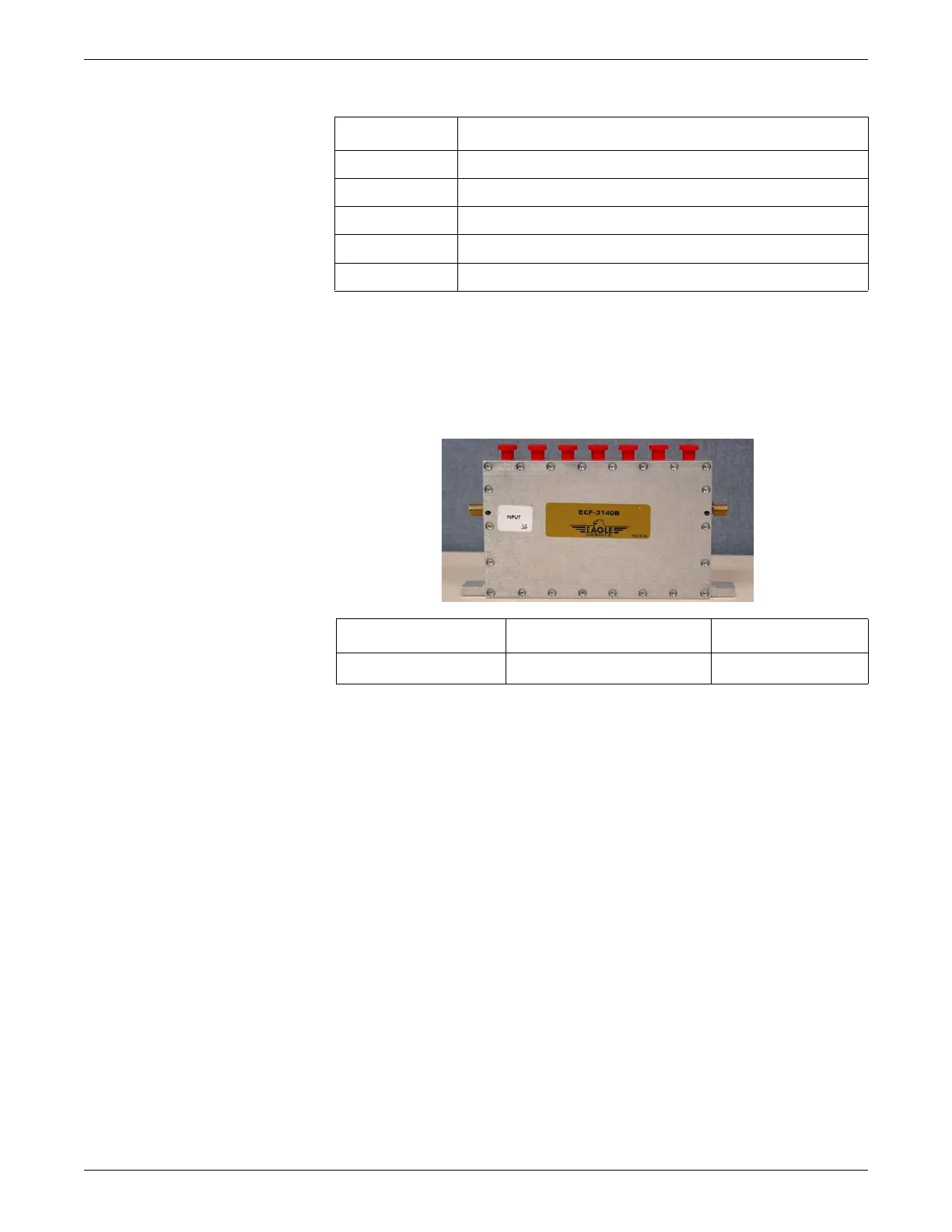

Cavity bandpass filter 608-614 MHz
The 608-614 MHz cavity bandpass filter passes channel 37 and rejects all other
channels, including channels 36 and 38. No notch filters are required. The absence of
notch filters results in a significant reduction of signal loss in channel 37.
274A
Part number Description
2005063-045 Notch Filter Channel 36 A/V
2005063-009 Notch Filter Channel 37 A/V
2005063-048 Notch Filter Channel 38 Center
2005063-047 Notch Filter Channel 38 A/V
2005063-046 Notch Filter Channel 36 Center
dB loss in passband dB loss outside of passband Status
3.3
>47 @ 605, 617 MHz
1
1
605 MHz is the center of channel 36; 617 MHz is the center of channel 38.
Current
