10.5. Cleaning the dispenser
Only to be performed by the Authorised Technical Service
 Disconnect and mechanically lock the external switch. Close and mechanically interlock the manual water
supply valves.
 Clean the dispenser by using a cloth or sponge dampened with water. Warm water makes cleaning easier.
Never use abrasive products, solvents or tools that could scratch or damage the dispenser.
Once the dispenser cleaning and assembly operations are finished:
 Connect the external switch and open the manual water inlet valves.
 Start a washing program that uses a bleaching agent and softener and check that both compartments drain
properly.

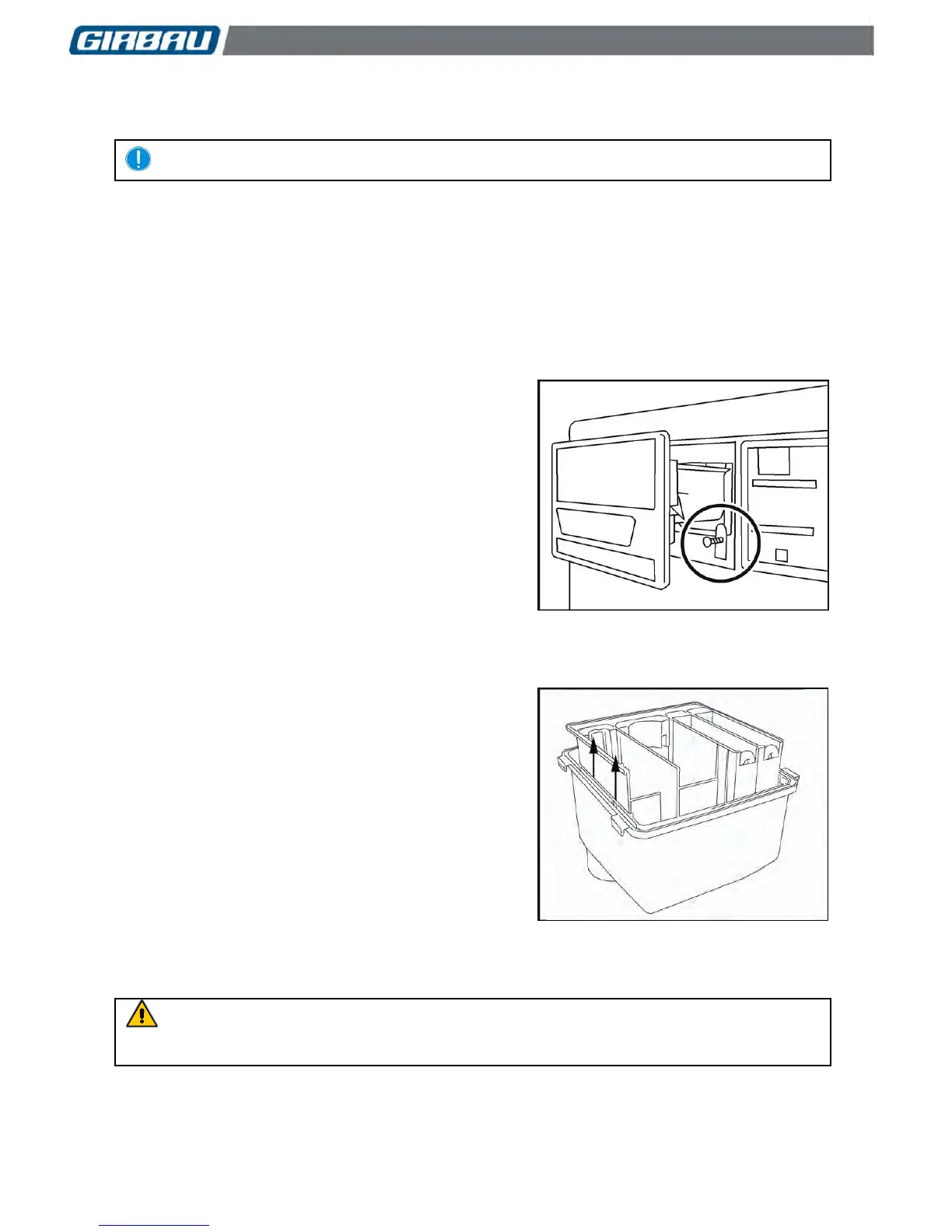

10.5.1. Washers with front dispenser
Required tools:
Unscrewing the fastening tabs: Torx T20 screwdriver
Disassembly and assembly:
 Open the dispenser drawer and loosen the screws on
the retaining tabs visible along the bottom (Fig. 10.1).
 Completely remove the drawer and dismount the siphon
tubes from the liquid compartment by pulling them
upwards.
Once the cleaning operations are over:
 Replace the siphon tubes and replace the drawer in its
housing.
 Refit the fastening tabs and check that the drawer cannot
be completely removed.
Fig. 10.1
10.5.2. Washers with top dispenser
Disassembly and assembly
 Open the fastening clasps on the top cover. The
dispenser is now accessible.
 Detach the siphon tubes from the liquid compartment by
pulling them upwards.
 To clean the lower basin, remove the leak seal and
separate the two dispenser bodies by separating the side
lips (Fig. 10.2).
Once the cleaning operations are over:
 Refit the two dispenser bodies and check that the side
lips fasten both pieces.
 Replace the siphon tubes.
 Check that the dispenser is set well in its bracket.
 Check the condition of the top cover seal. If seal is
damaged, deformed or has lost elasticity, call the
AUTHORISED TECHNICAL SERVICE for replacement.
 Replace the seal. Fit the top cover. Close the clasps.
Fig. 10.2
VERY IMPORTANT
The dispenser protection seal is necessary to prevent humidity and corrosion inside the machine
and the premature damage of the electrical and electronic circuits of machine control.
