Safety
confidential
A.1.6
4 Plus feeder control panels
4.1 Plus feeder control panel
1000
h

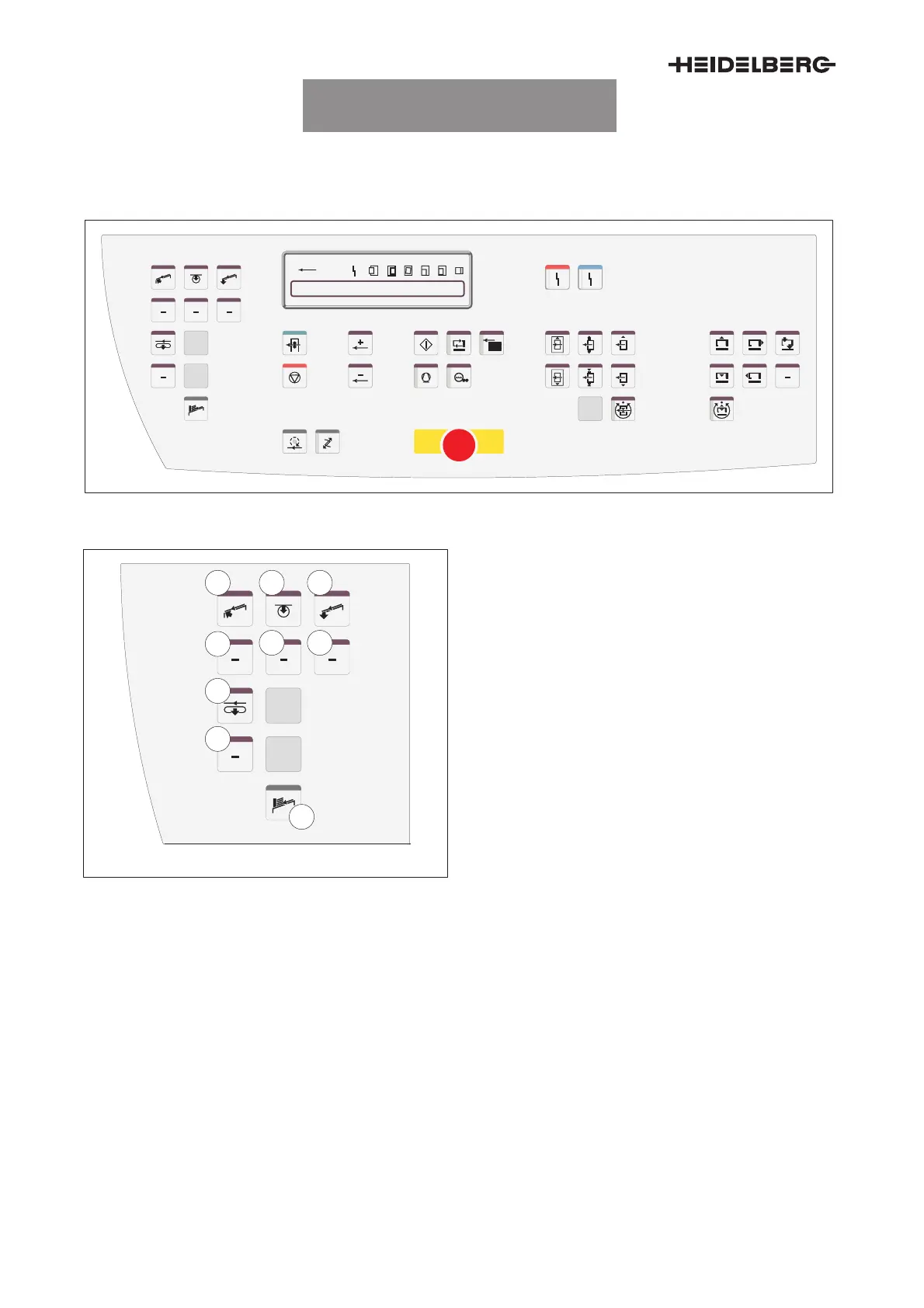

Fig. 4 Feeder control panel
5
6
2
3
4
1
7
8
9
Fig. 5 Feeder control panel, detail
1
Blowing/suction nozzle
Increases the blast air volume of the blowing/
suction nozzle.
2 – button
Reduces the blast air volume of the blowing/
suction nozzle.
3
Propelling roller
Increases the suction air volume of the propel-
ling roller.
4 – button
Reduces the suction air volume of the propel-
ling roller.
5
Pull plate
Increases the suction air volume of the pull
plate.
6 – button
Reduces the suction air volume of the pull
plate.
7
Suction tape
Increases the suction air volume of the suction
tape.
8 – button
Reduces the suction air volume of the suction
tape.
9
Clearing the feed table
Transports all sheets that are on the feed table
up to the ratchet pawl.
