7. Press the
Return
button to exit the menu.
If another symbol is still visible:
1. Locate the displayed guard and check it again.
2. Notify the service department of your
Heidelberg agency if the guard is defective.
Re-initialize the test:
1. Press the
Reset
button (Fig. 1/5). The test is
initialized so that it can be repeated completely
(after an interruption, for example).
2.2 Symbols of the protective devices

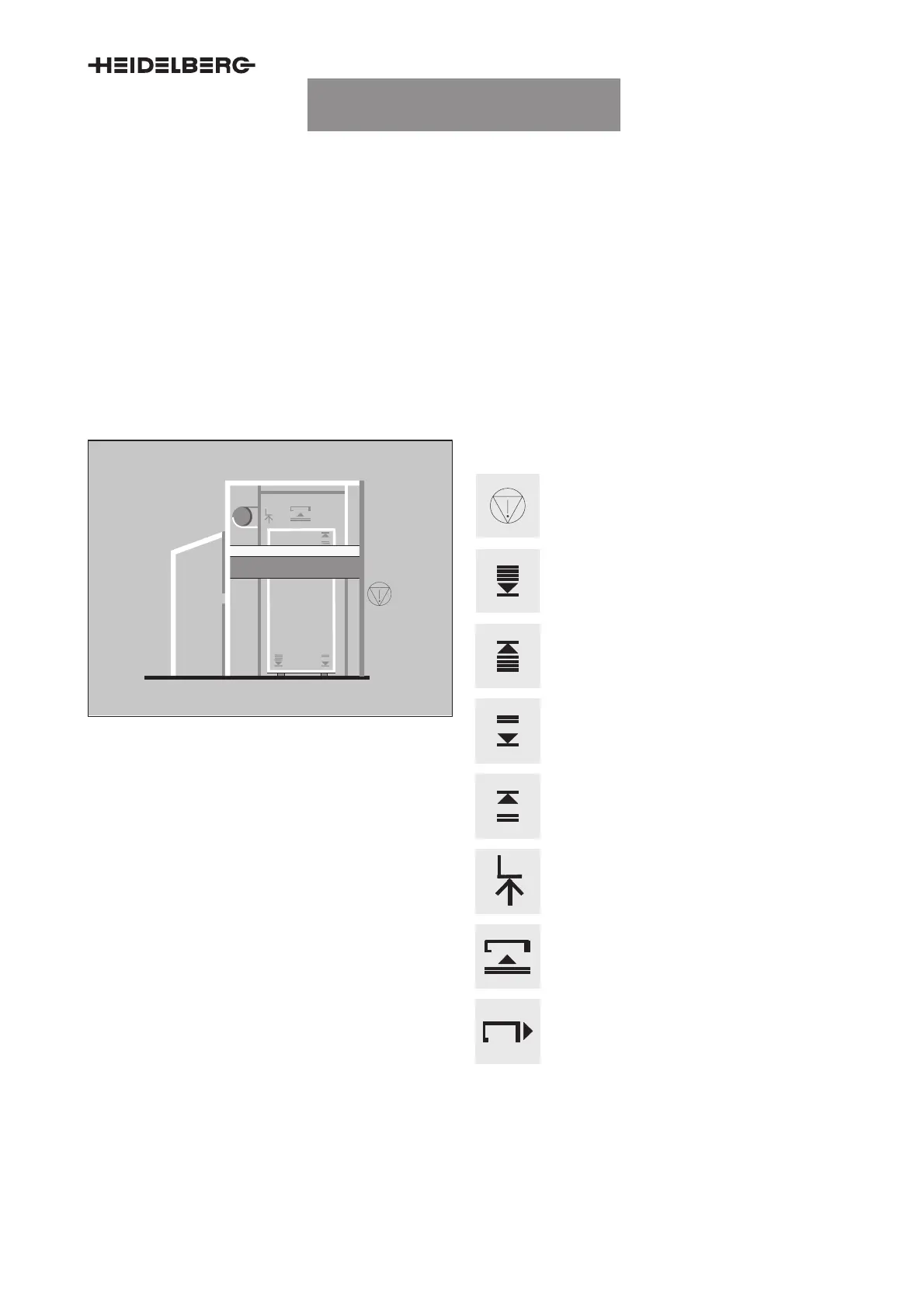

Fig. 2 Feeder protective devices
Feeder
Emergency stop button
Bottom main pile limitation
Upper main pile limitation
Bottom auxiliary pile limitation
Upper auxiliary pile limitation
Upper pile safety
Suction head at highest position
The control flap on the suction head was
actuated.
