Preset Plus Feeder
confidential
C.1.5
2.2 Non-stop pile change
Fig. 2 Scale
2
1
Fig. 3 Supporting members in holding device
The non-stop pile change function enables you to
replace an empty pallet with a full one without inter-
rupting the production.

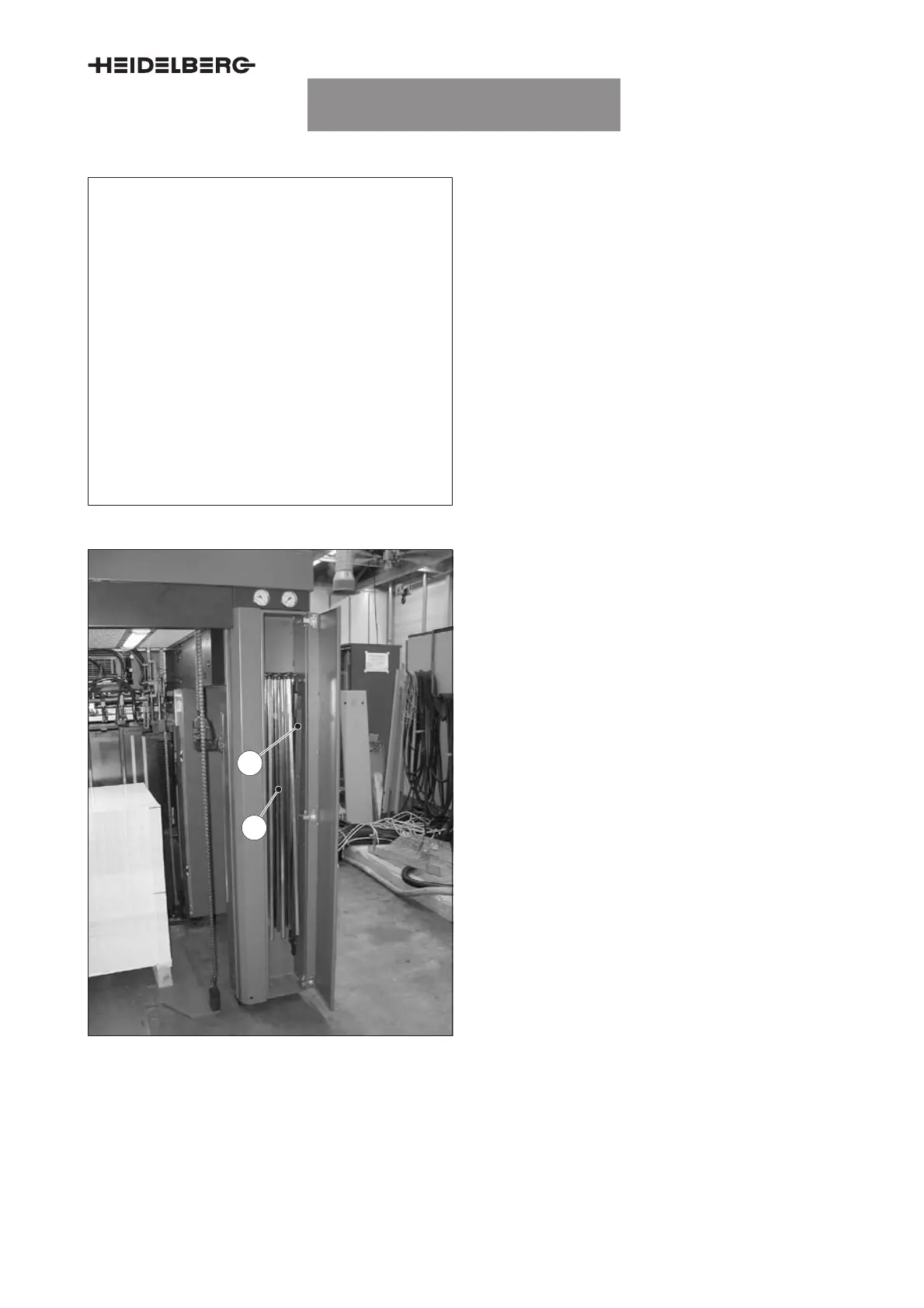

The non-stop accessories consist of 9 supporting
members.
The supporting members (Fig. 3/2) and the non-stop
bar (Fig. 3/1) are in a holding device (Fig. 3) on the
feeder.
On D.S., there is a scale (Fig. 2/1) with a white and a
black area.
D White area (Fig. 2/2): Changing piles is possible
in this area. The bottom point of the white area
is the lowest position the non-stop bar can
reach.
D Black area (Fig. 2/3): Merging auxiliary pile and
main pile must be completed in this area. The
upper point of the black area is the highest po-
sition the auxiliary pile can reach. Pile raising
stops if auxiliary pile and main mail have not yet
merged at this point.
