HEIDELBERG Speedmaster CD 102 User Manual

GR FS9040006000000000 GR FS9040007000000000
Maintenance
confidential
D.3.11
5 Service activities on pile guide rail and pile transport
5.1 Pile alignment
1
3
2

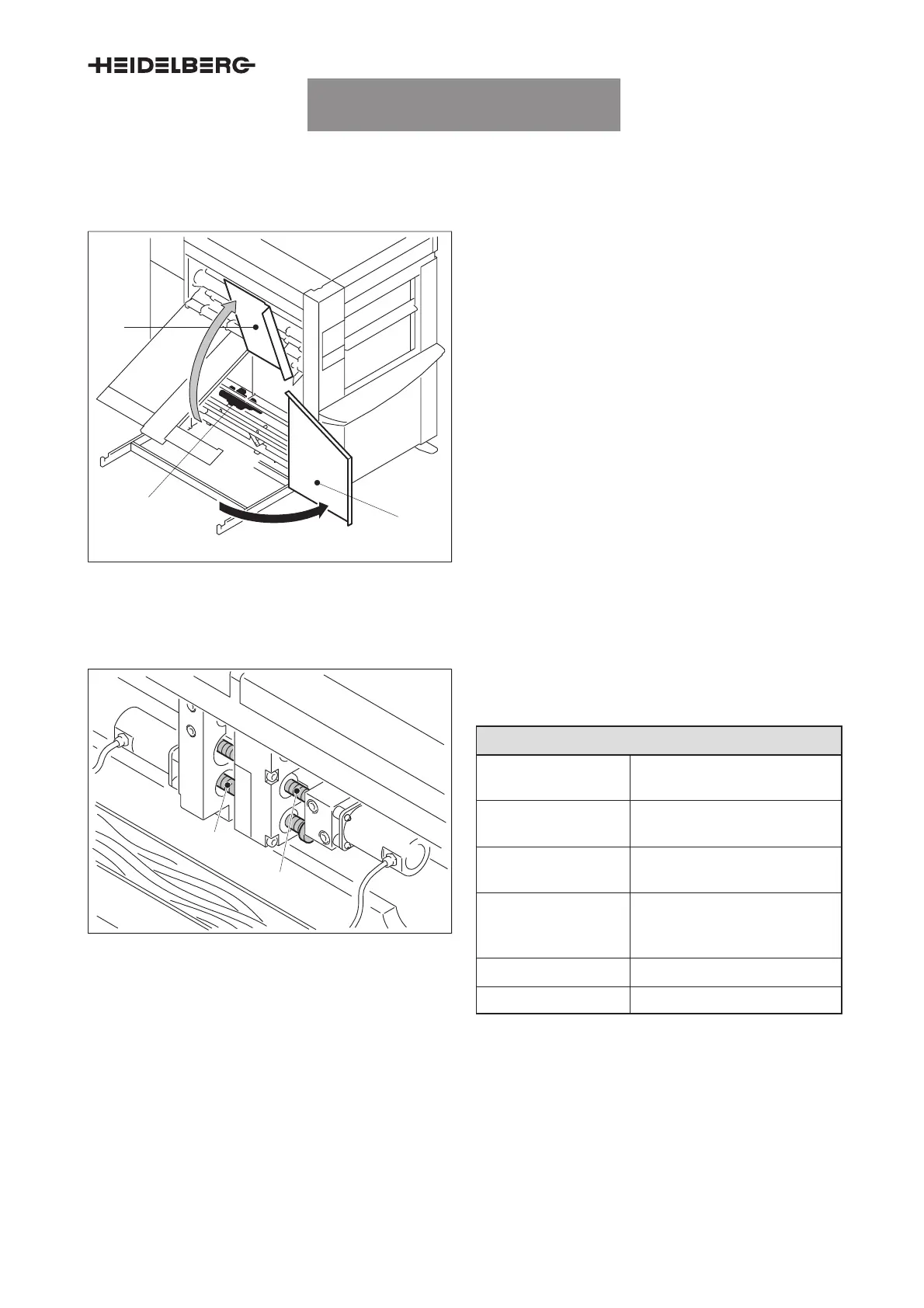

Fig. 10 Place of installation of the pile alignment
Place of installation
1 ”Feeder” guard
2 Pile alignment
3 Feeder table
The adjusting spindles are installed underneath the
feed table.
5.1.1 Cleaning the adjusting spindles
1
2
Fig. 11 Maintenance points on the spindles
1 Adjusting spindle
2 Adjusting spindle (non-stop only)
Maintenance point description
Maintenance inter-
val
3 000 000 prints, or monthly
Maintenance loca-
tion
Center
Accessibility of lubri-
cating points
Open the ”feeder” guard.
Fold up the feed table.
Number/type/main-
tenance work
Clean one adjusting spindle
or two adjusting spindles
(non-stop only).
Tool Soft, fluffless cloth
Cleaning solution See ”Approved cleaners”.
Tab. 7
UTKFS9040004000000000
UTKFS9040004000000000002
