5.2 Adjusting the format
1
2

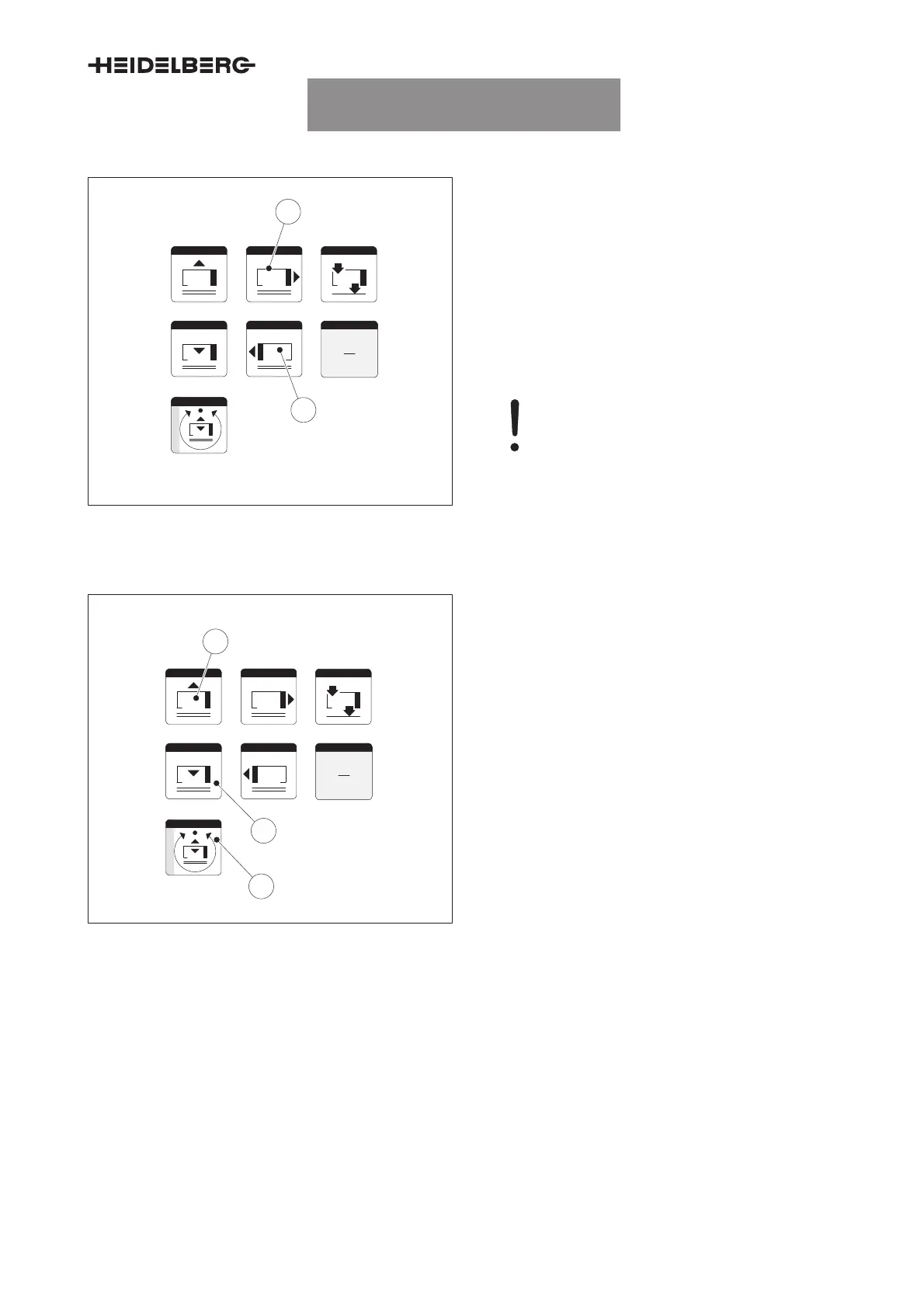

Fig. 18 Adjusting the button format
The control system positions the suction head ac-
cording to the format input. If necessary, you can
change this adjustment via the buttons (Fig. 18) on
the feeder console.
D Press the
Increase suction head format
button
(Fig. 18/1), to move the suction head away from
the forwarding rollers.
D Press the
Reduce suction head format
button
(Fig. 18/2), to move the suction head towards
the forwarding rollers.
Caution – risk of collision
Ensure that the suction head does not
collide with the pile or the pallet when
you change the format setting manually.
5.3 Adjusting the height
1
2
3
Fig. 19 Adjusting the button format
The height of the suction head has an influence of
the pile height.
Depending on the operating mode, you can either
adjust the height of the suction head (manual mode),
or the setpoint value of the front edge control (auto-
matic mode).
Automatic front edge control
In automatic mode, the upper front edge of the pile is
seized by the pile height sensor at the forwarding
flap, and adjusted to the preselected setpoint value.
The front edge of the pile is controlled by the auto-
matic height adjustment of the suction head (Fig.
21).
