Preset Plus Feeder
confidential
C.1.13
4.2 Key functions
5
6
7
23
4
1

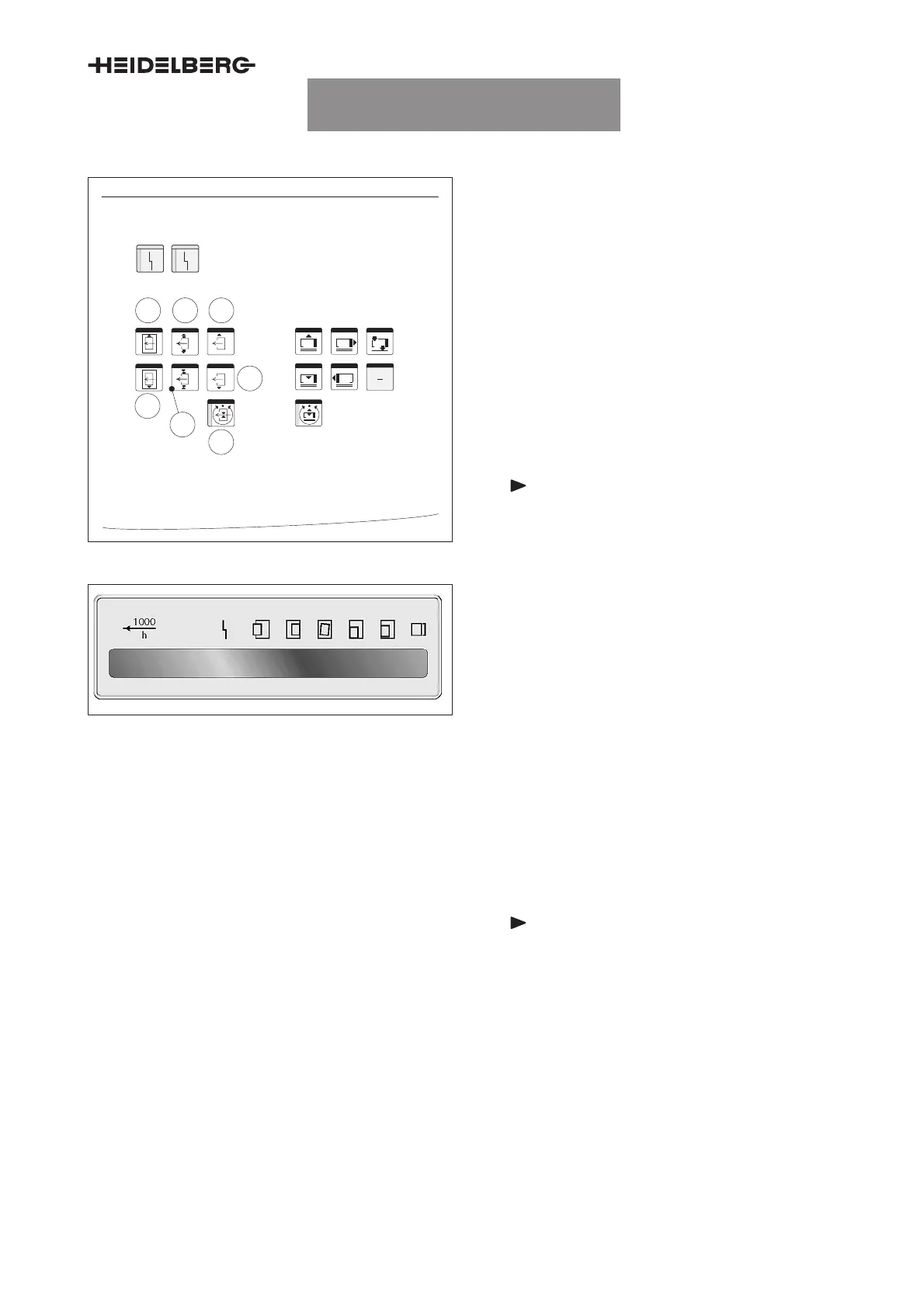

Fig. 13
Fig. 14 MID on feeder
Mode selection
Automatic/manual pile alignment
(Fig. 13/7)
The LED is ON: ”Automatic”
The LED is OFF: ”Manual” mode
Correcting the pull distance
Pull distance correction towards D.S.
(Fig. 13/1)
The pull distance increases if O.S. is the pull side.
The pull distance decreases if D.S. is the pull side.
Pull distance correction towards O.S.
(Fig. 13/4)
The pull distance decreases if O.S. is the pull side.
The pull distance increases if D.S. is the pull side.
Note
The feeder display shows the selected
pull distance during adjustment, or when
the buttons (Fig. 13/1) and (Fig. 13/4)
are pressed at the same time.
Correcting the format/moving the pile stops
You can change the position of the lateral sheet sep-
aration blowers manually when automatic pile align-
ment is switched off (Fig. 13/7).
Increasing the lateral sheet separation blower sheet
size
(Fig. 13/2)
The lateral sheet separation blower on the pull side
remains. The opposite lateral sheet separation
blower moves away from the pile.
Decreasing the lateral sheet separation blower sheet
size
(Fig. 13/5)
The lateral sheet separation blower on the pull side
remains. The opposite lateral sheet separation
blower moves towards the pile.
Note
The feeder display shows the current
sheet width during adjustment or when
the buttons (Fig. 13/2) and (Fig. 13/5)
are pressed at the same time.
