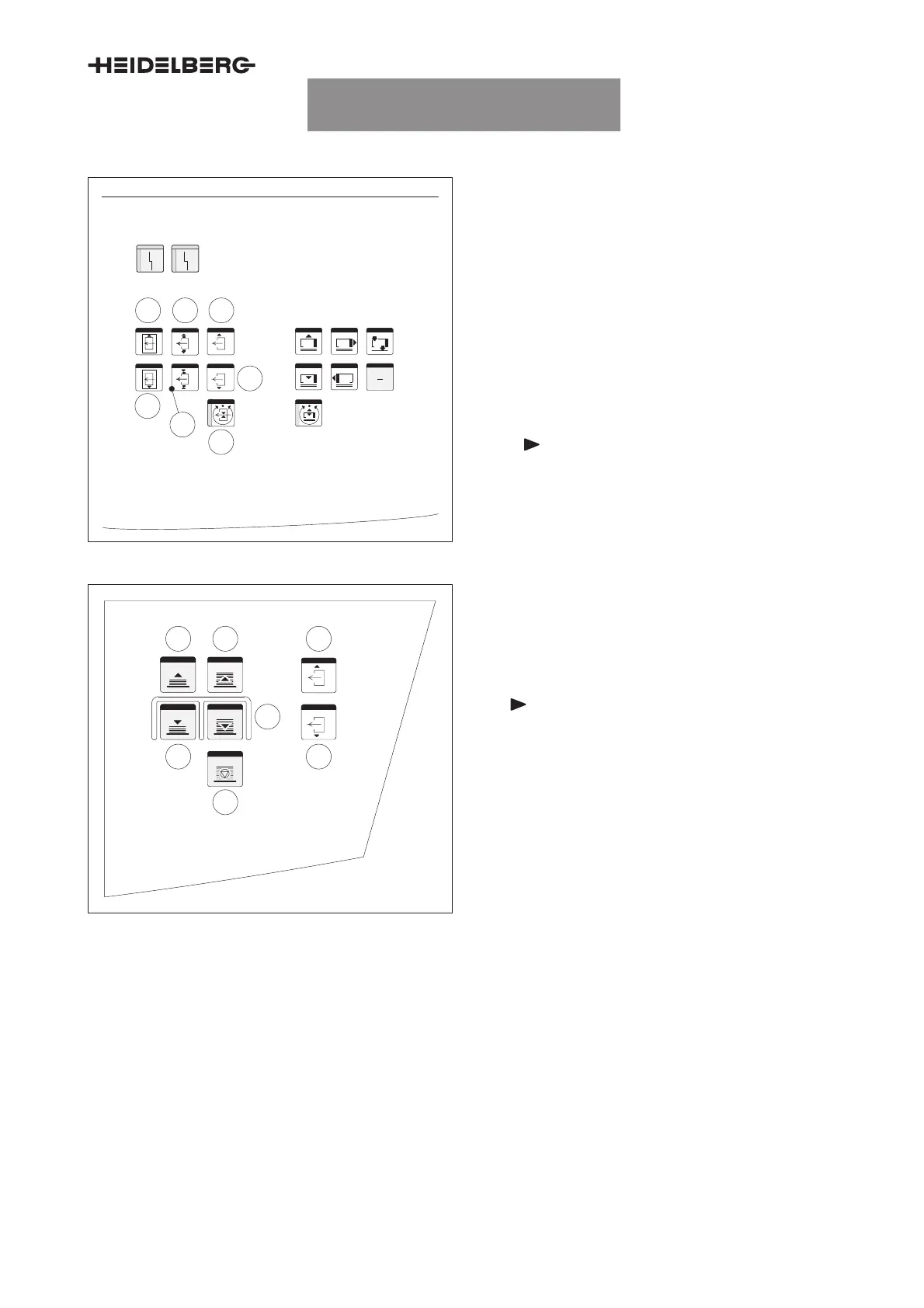

4.3 Method of operation in ”Automatic” mode
5
6
7
23
4
1
Fig. 15
5
6
7
2
3
4
1
Fig. 16
In Automatic” mode, the LED in the
Operating mode
button (Fig. 15/7) is ON.
1. When the
Main pile up
button (Fig. 16/3) is
pressed, the pile moves up to the paper detec-
tion sensor, and stops there. The pile alignment
system performs a first alignment of the pile
support plate.
If the feeder is switched on, the pile moves upwards
to the governor foot after the alignment process has
been completed.
If the feeder has stopped:
Note
The governor foot on the suction head
must be in inquiry position.
2. Press the
Main pile up
button until the pile
stops.
The pile alignment system aligns the pile. The sen-
sor moves to the upper position.
Just before the pile end is reached, the pile align-
ment system switches over to the new operating
mode. Thus it prevents that the sensors are in-
fluenced by the pallet.
Note
After the
Main pile down
button has
been pressed, the pile support plate au-
tomatically moves down and stops
approximately 12 cm above ground.
When the
Main pile down
button is
pressed again, the pile support plate
moves downwards, stops again closely
above the floor, aligns itself in center po-
sition, and moves eventually fully down
to the floor.
