HEIDELBERG Speedmaster CD 102 User Manual

GR FS9040033000000000
Checklists
confidential
D.2.8
4 Checklist for the printing unit, SM 102/CD 102 with Preset Plus feeder
4.1 Service activities on the printing unit with Preset Plus feeder
1
2
14
15
12
11
13
6
9
7
8
10
4
3

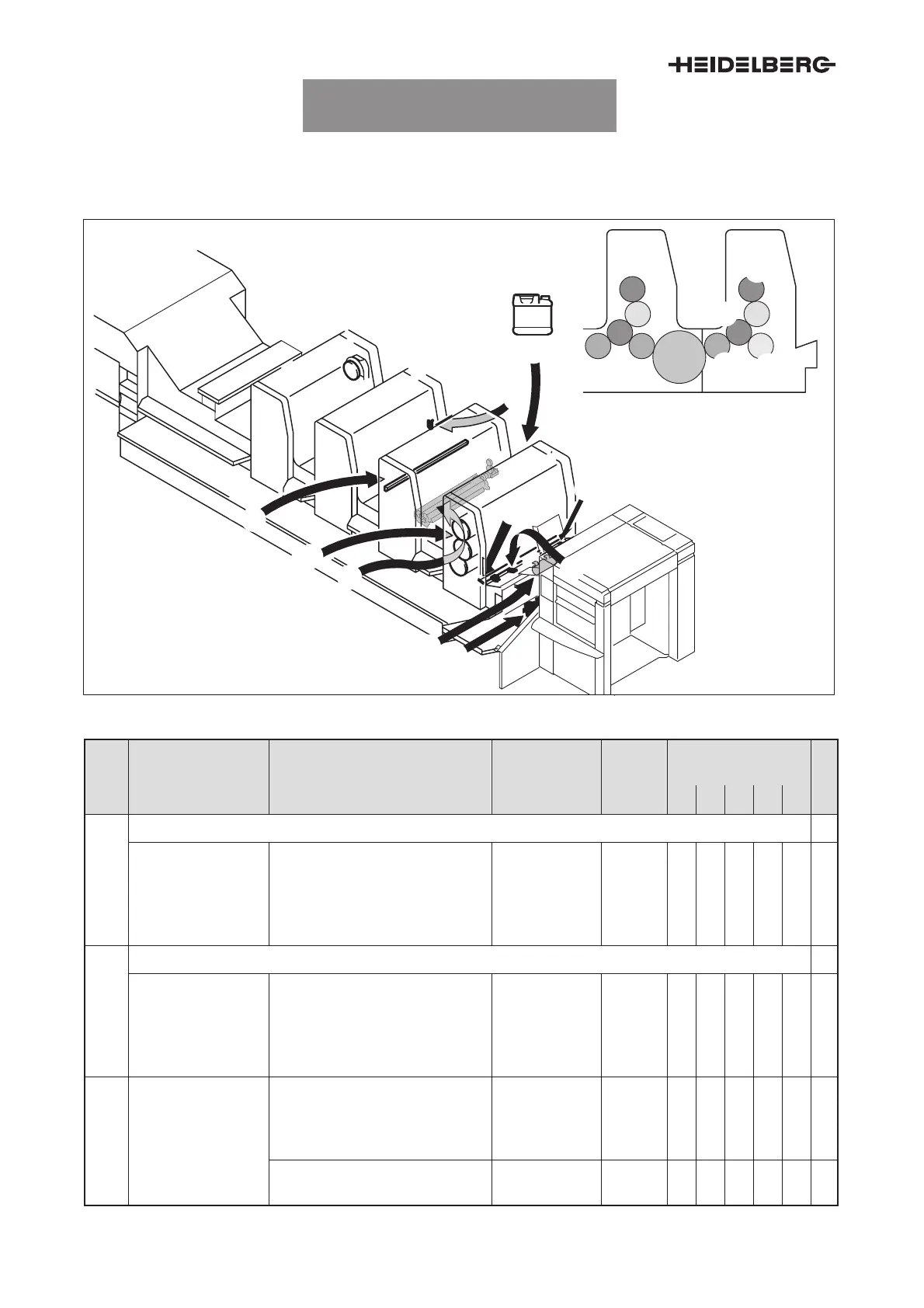

Fig. 3 Maintenance points on the printing unit with Preset Plus feeder
No. Part Maintenance work/
Maintenance location
Tool Spare
part re-
id
Maintenance
interval
K
quired
I II III IV V
1
Maintenance points on the pull lays:
Reflex light button Clean the reflex light barrier.
D.S./O.S.
Clean, fluf-
fless cloth;
note the ”Ap-
proved clean-
ers” list.
X X X X X +
2
Maintenance points on the sheet alignment system:
Reflex light button Clean the reflex light barrier.
D.S./O.S.
Clean, fluf-
fless cloth;
note the ”Ap-
proved clean-
ers” list.
X X X X X +
3 Air filter ”pull lay
suction air/propel-
ling roller”
Clean 2 filter cartridges (care-
fully knock out or vacuum-
clean).
Center
Vacuum
cleaner
X X +
Replace 2 filter cartridges.
Center
X X +
UTKSM9040061001000000
UTKSM9040061000000000004
