Maintenance
confidential
D.3.12
5.2 Side stops
1

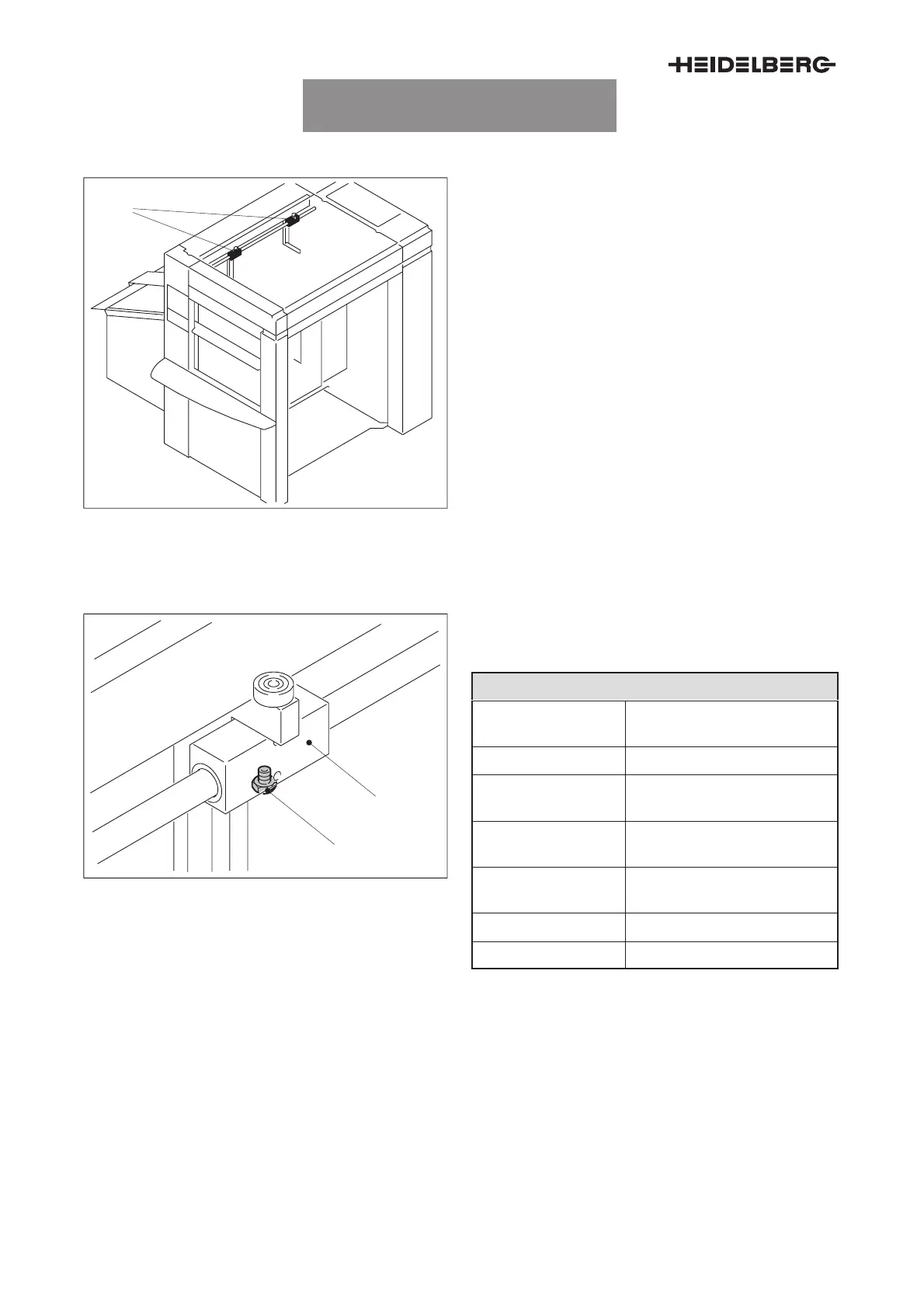

Fig. 12 Place of installation of the side stops
Place of installation
1 Side stops
The bearing blocks of the side stops are installed on
D.S. and on O.S. above the pile.
5.2.1 Lubricating the bearing block of the side stop
1
2
Fig. 13 Lubricating points on the bearing block
of the side stops
1 Bearing block
2 Recessed grease nipple
Lubricating point description
Maintenance inter-
val
15 000 000 prints, or twice a
year
Color code Green
Maintenance loca-
tion
D.S./O.S.
Accessibility of lubri-
cating points
From the feed table in the di-
rection of the pile
Number/type/main-
tenance work
Lubricate 2 recessed grease
nipples.
Tool Grease gun
Cleaning solution Optimol Longtime PD2
Tab. 8
UTKFS9040004000000000004
