Maintenance
confidential
D.3.17

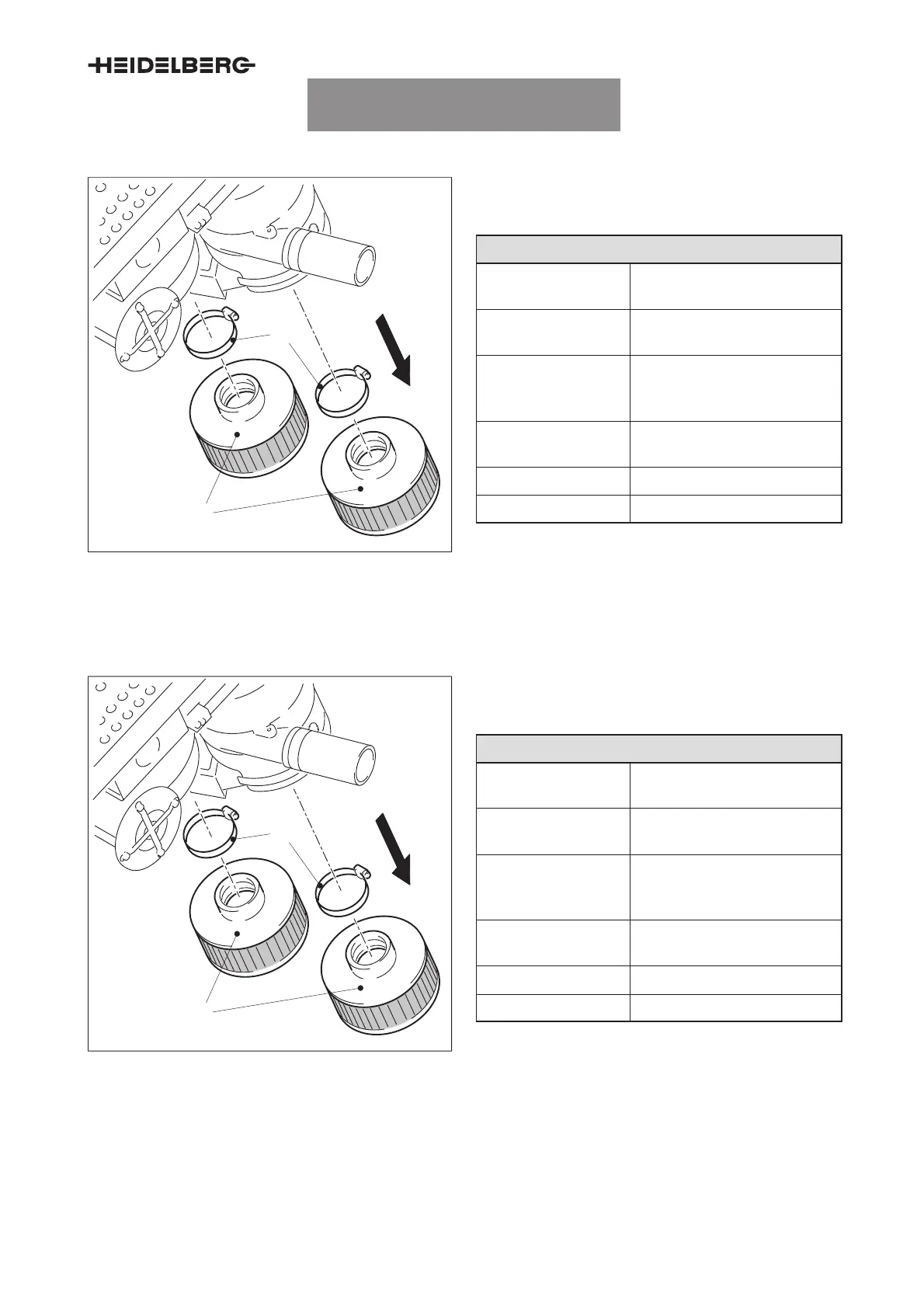

6.2.1 Cleaning the air filter ”suction tape suction air”
2
1
Fig. 22 Cleaning the air filter ”suction tape suc-
tion air”
1 Air filter ”suction tape suction air”
2 Pipe clamp
Maintenance point description
Maintenance inter-
val
3 000 000 prints, or monthly
Maintenance loca-
tion
Center
Accessibility of lubri-
cating points
Open the ”feeder” guard;
fold up the feed table; re-
lease 2 pipe clamps.
Number/type/main-
tenance work
Clean the air filters (carefully
knock out or vacuum).
Tool Vacuum cleaner
Lubricant –
Tab. 12
6.2.2 Replacing the air filter ”suction tape suction air”
2
1
Fig. 23 Replacing the air filter ”suction tape suc-
tion air”
1 Air filter ”suction tape suction air”
2 Pipe clamp
Maintenance point description
Maintenance inter-
val
30 000 000 impressions, or
once a year
Maintenance loca-
tion
Center
Accessibility of lubri-
cating points
Open the ”feeder” guard;
fold up the feed table; re-
lease 2 pipe clamps.
Number/type/main-
tenance work
Replace the air filter.
Tool –
Lubricant –
Tab. 13
