Maintenance
confidential
D.3.5

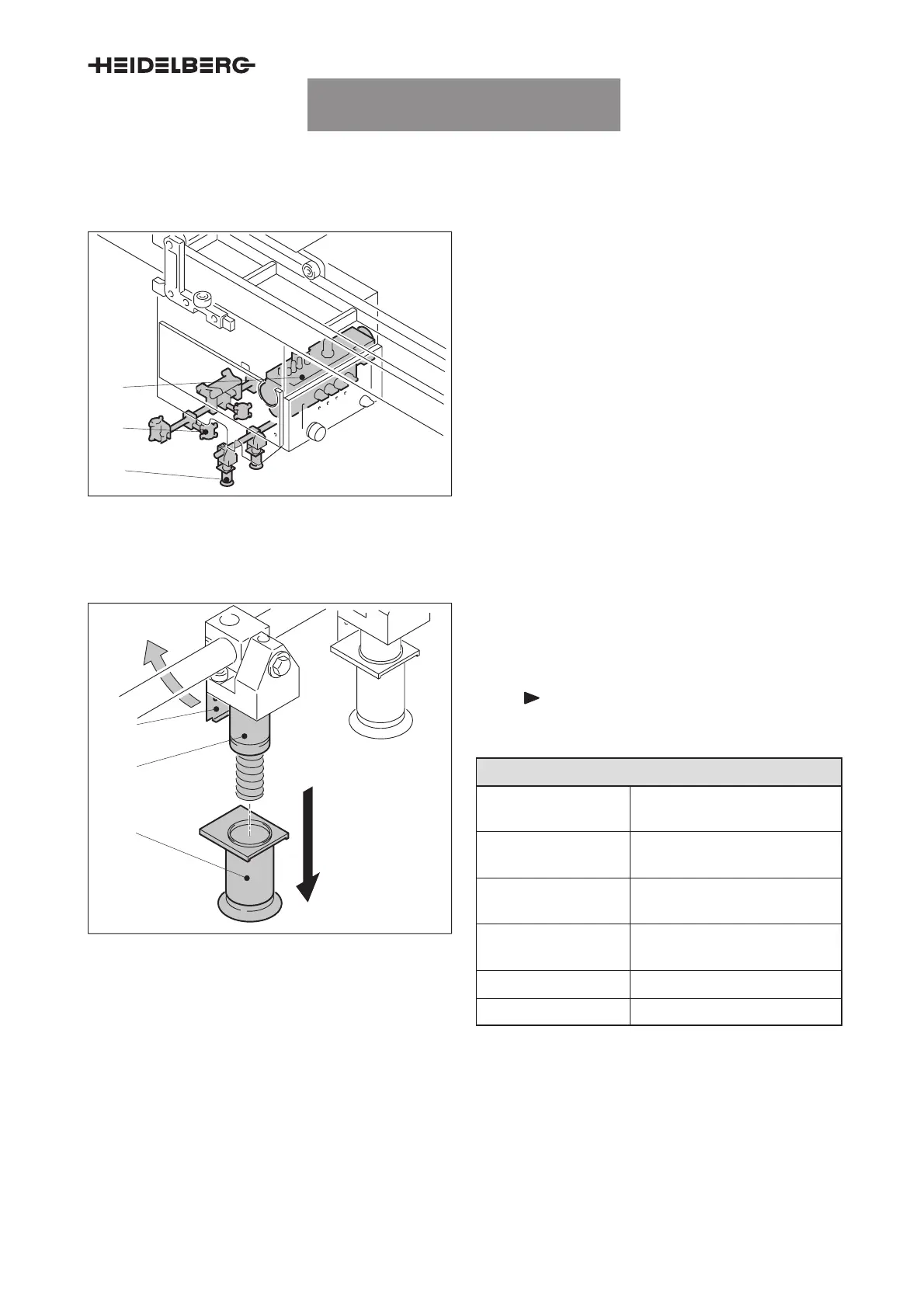

3 Service activities on the suction head
3.1 Suction head
1
2
3
Fig. 2 Suction head
Place of installation
1 Lifting sucker
2 Forwarding sucker
3 Rotary valve
The suction head is installed above the feeder pile.
3.1.1 Lifting suckers Cleaning and checking
2
3
1
Fig. 3 Lifting sucker
1 Plate spring
2 Lifting sucker guide
3 Lifting sucker
Note
Do not lubricate!
Maintenance point description
Maintenance inter-
val
3 000 000 press rotations, or
monthly
Maintenance loca-
tion
D.S./O.S.
Accessing the main-
tenance point
See installation and removal.
Maintenance work Clean and check 4 lifting
suckers.
Tool Soft, fluffless cloth
Cleaning solution See ”Approved cleaners”.
Tab. 2
UTKFS9040002000000000
UTKFS9040002000000000002
