HEIDELBERG Speedmaster CD 102 - Air Control Control Panel

GR SG9015877000000000
Safety
confidential
A.1.12
4.4 Air control control panel
2 4
1 3 5
6

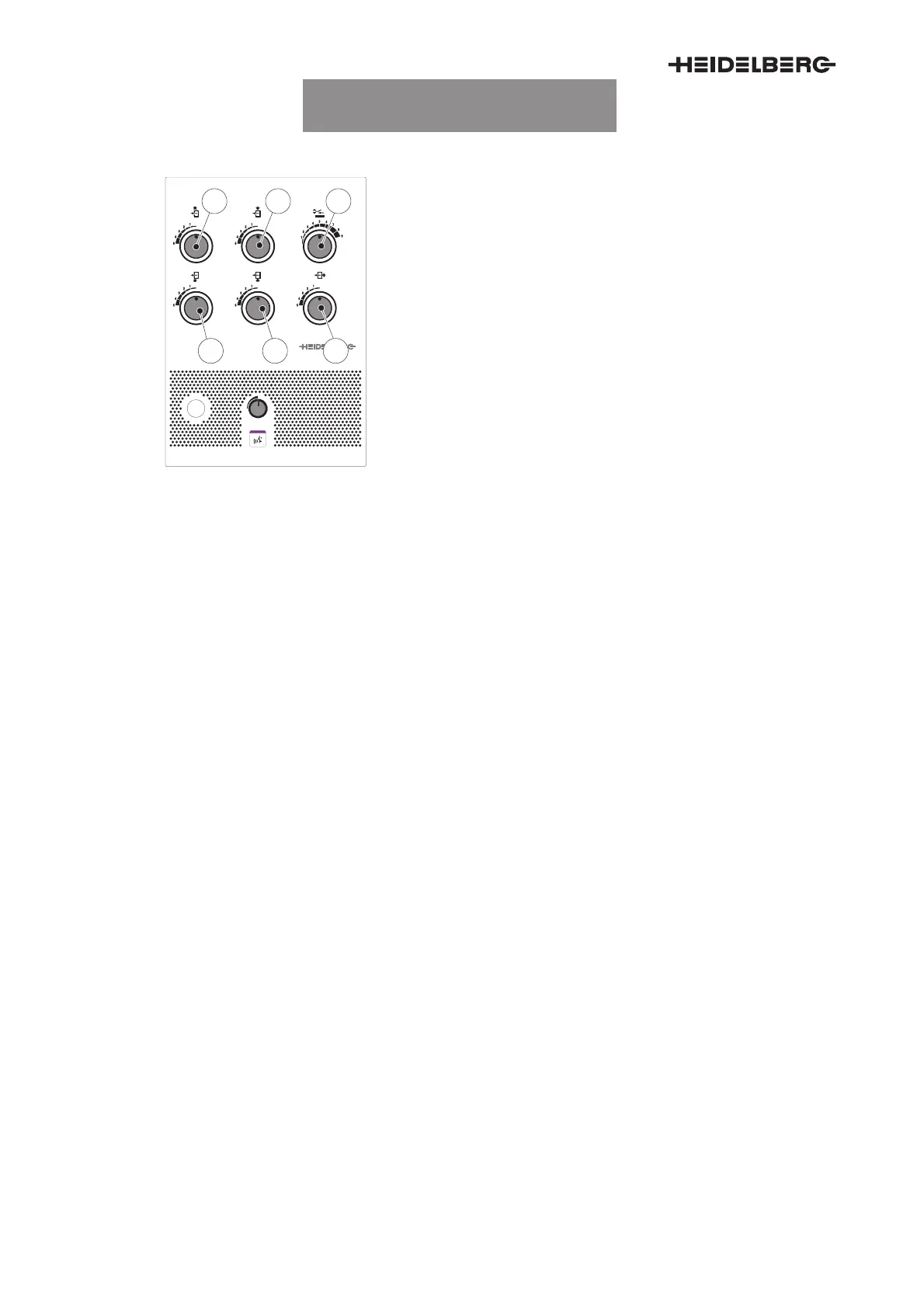

Fig. 11 Air control control panel
1
Corner blowers D.S.
Adjusts the blast air volume of the corner blow-
ers D.S.
2
Corner blowers O.S.
Adjusts the blast air volume of the corner blow-
ers O.S.
3 Diagonal blower bars D.S.
Adjusts the blast air volume of the diagonal
blower bars D.S.
4 Diagonal blower bars O.S.
Adjusts the blast air volume of the diagonal
blower bars O.S.
5
Guide plate
Adjusts the level of the guide plate.
6
Pre-separation air
Adjusts the pre-separation air volume of the
carrier air blowers and sheet separation blow-
ers. The pre-separation air is blown into the pile
before the sheet travel is switched on.
