General information
confidential
D.1.9
4 Manual lubrication with grease
4.1 Types of lubricating points

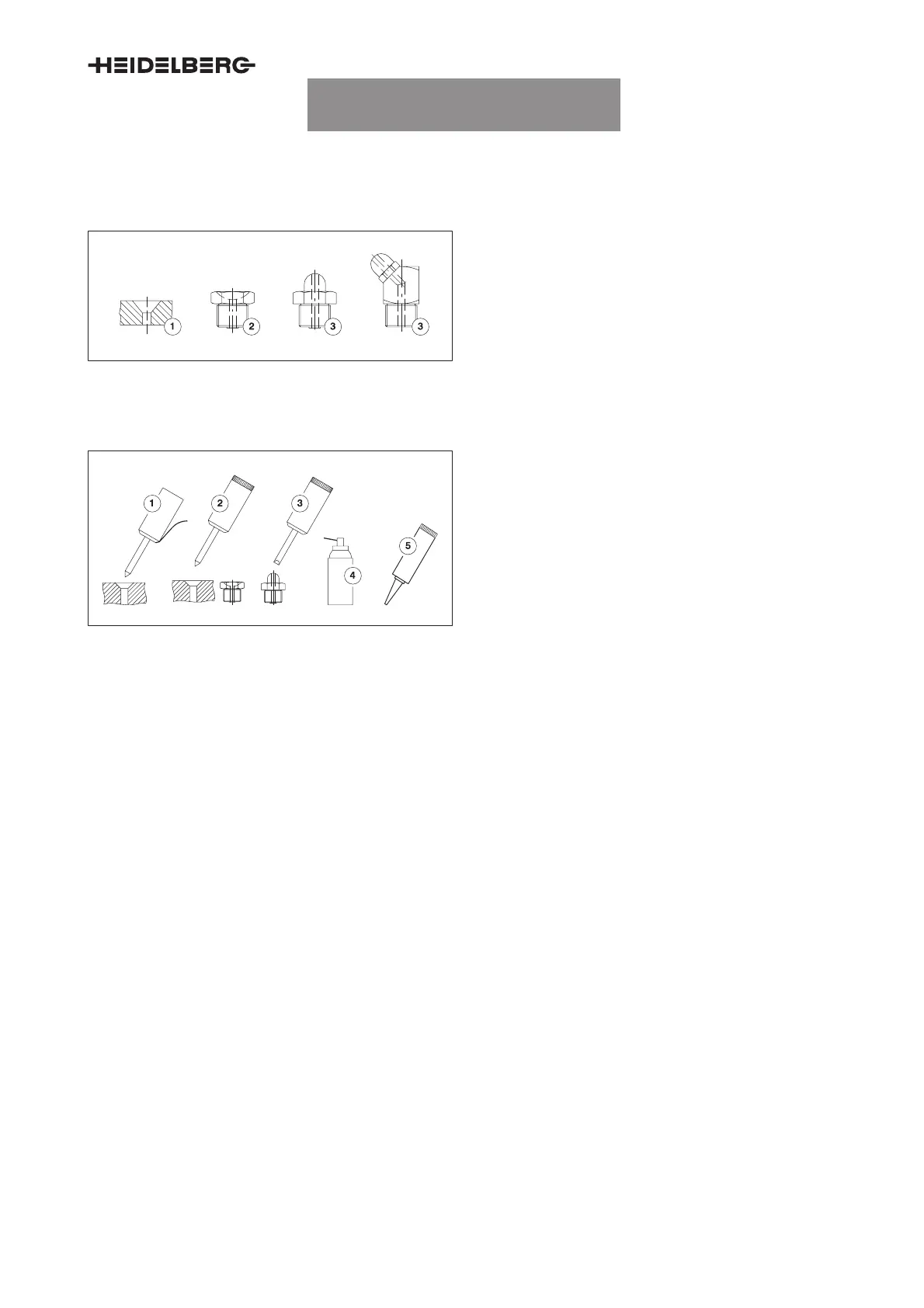

Fig. 4 Oil and grease lubricating points
1 Open oil or grease lubrication hole
The lubricating points are filled either with the
oil can or with the grease gun.
2 Recessed grease nipple
The lubricating points are filled with the grease
gun.
3 Ball type lubricating nipple
The lubricating points are filled with the oil gun.
4.2 Lubricating devices
Fig. 5 Lubricating devices
1 Oil can
Used on open oil lubrication holes.
2 Grease gun
Used for recessed grease nipples and open
grease lubrication holes.
3 Oil gun
Used for ball type lubricating nipples.
4 Oil, grease or lubricant spray
5 Lubricant tube
4.3 How to apply lubricant
Before each lubrication, clean the lubricating points
from any contamination.
Fill lubricant into the lubricating points until the fresh
lubricant emerges from the corresponding bearing
point.
Remove the emerging, old lubricant by using a rag.
