1 Introduction

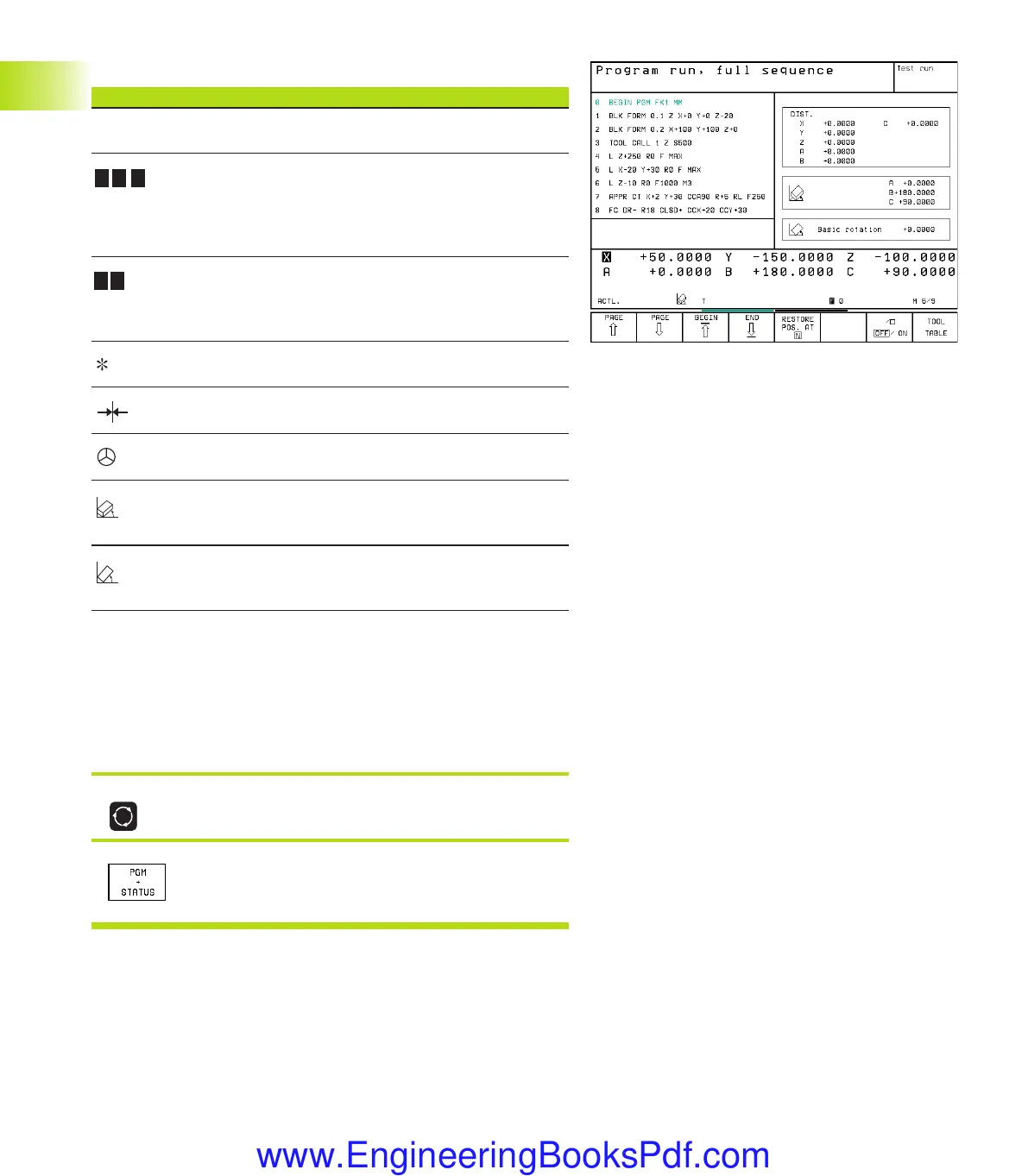

Information in the status display
The Meaning
ACTL. Actual or nominal coordinates of the current position
X Y Z Machine axes; the TNC displays auxiliary axes in
lower-case letters. The sequence and quantity of
displayed axes is determined by the machine tool builder.
Refer to your machine manual for more information
F S M The displayed feed rate in inches corresponds to
one tenth of the effective value.
Spindle speed S, feed rate F and active M functions
Program run started
Axis locked
Axis can be moved with the handwheel
Axes are moving in a tilted working
plain
Axes are moving under a basic
rotation
Additional status displays
The additional status displays contain detailed information on the
program run. They can be called in all operating modes, except in
the Programming and Editing mode of operation.
To switch on the additional status display:
Call the soft-key row for screen layout.
<
Select the layout option for the additional status
display.
1.4 Status Displays
